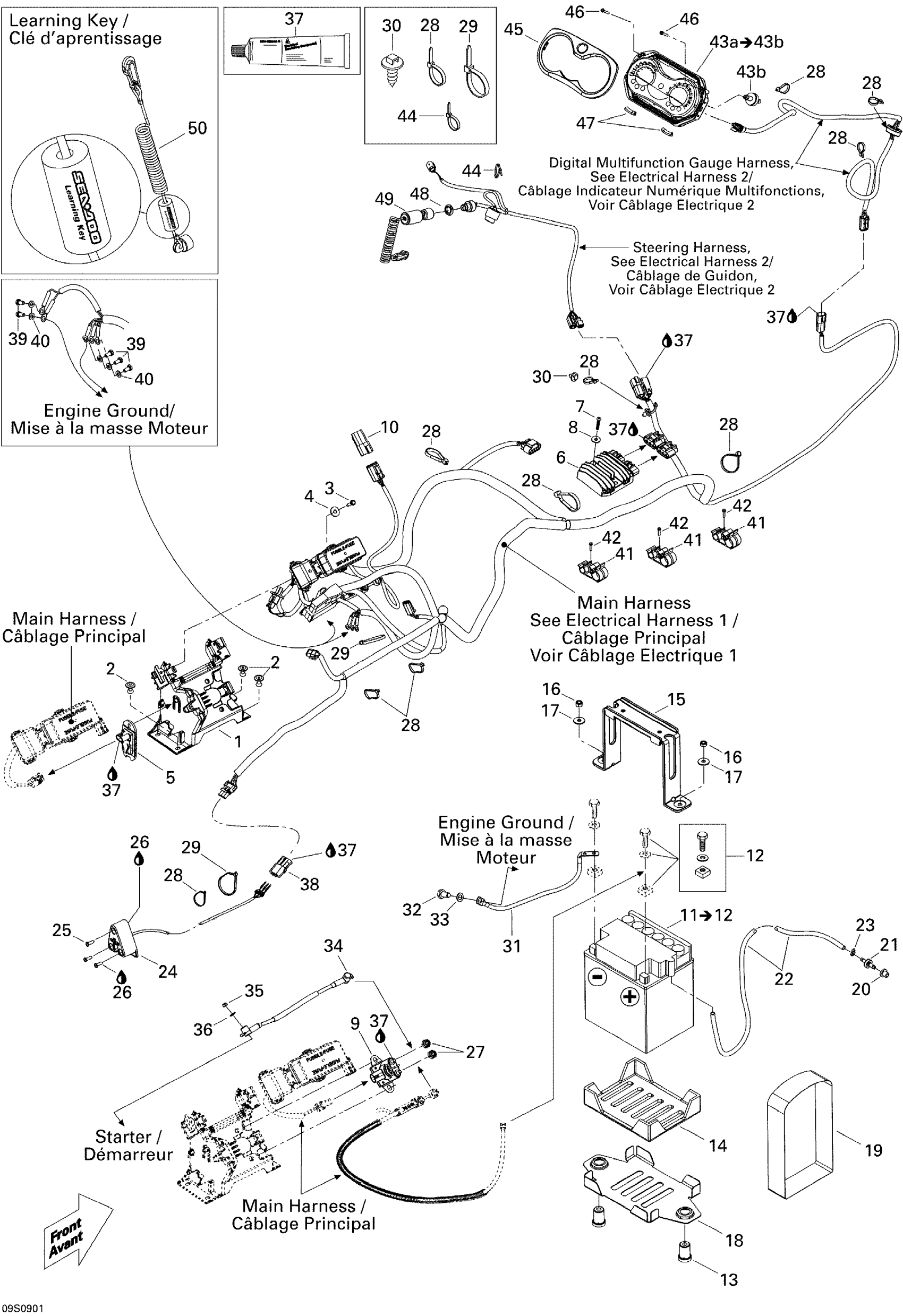

Sea-doo GTX 155, 2009 Electrical System Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

2

Pop Rivet 3/16"

293150123

Unavailable

3

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

4

Flat Washer M6, Stainless

234062600

Unavailable

5

Interrupter T.O.P.S.

278001992

Unavailable

6

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

7

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

8

Flat Washer M6, Stainless

234062600

Unavailable

9

Starter Relay

278003012

Unavailable

10

Diagnostic Connector

278002704

Unavailable

11

Battery, 30 Amperes

278001882

Unavailable

12

Battery Bolt Kit

250000282

$2.95

13

BUSHING - Call your local BRP dealership

278001939

Unavailable

14

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

15

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

16

Hex. Elastic Nut M8 Brass

232581200

$1.29

17

Flat Washer 8 mm, Stainless

234082600

Unavailable

18

BATTERY SUPPORT - Call your local BRP dealership

278001966

Unavailable

19

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

20

Grommet

293720029

Unavailable

21

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

22

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

Speed Sensor

278001993

Unavailable

25

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

Unavailable

27

Elastic Stop Nut M6, Brass

232561200

Unavailable

28

Tie-Rap 180 mm

414115200

$0.09

29

Tie Wrap 368 mm

293750008

$0.85

30

Mount Dart

293730040

$0.86

31

GROUND CABLE - Call your local BRP dealership

278002176

Unavailable

32

Hex. Screw M10 X 20, Scotch Grip

207302060

Unavailable

33

Flat Washer 10 mm, Stainless

234000600

Unavailable

34

STARTER CABLE - Call your local BRP dealership

278002265

Unavailable

35

Elastic Stop Nut M6, Brass

232561200

Unavailable

36

Stainless Flat Washer M6

234061600

$0.25

37

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

38

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

39

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

40

Stainless Flat Washer M6

234061600

$0.25

41

RETAINER - Call your local BRP dealership

275500553

Unavailable

42

Hex. Flange Screw K40 X 16

241141660

Unavailable

43a

Digital Multifunction Gauge | SERV

278002270

Unavailable

43b

Check Valve

275500398

Unavailable

44

Tie Wrap 142 mm

293750002

Unavailable

45

Gauge Bezel, Chrome

278002144

Unavailable

46

Hex. Flange Screw K40 X 25

241142560

Unavailable

47

TRIM - Call your local BRP dealership

293830113

Unavailable

48

Safety Nut (DESS Switch)

278002963

$2.72

49

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

50

SAFETY LANYARD, LEARNING KEY - Call your local BRP dealership

278002406

Unavailable
