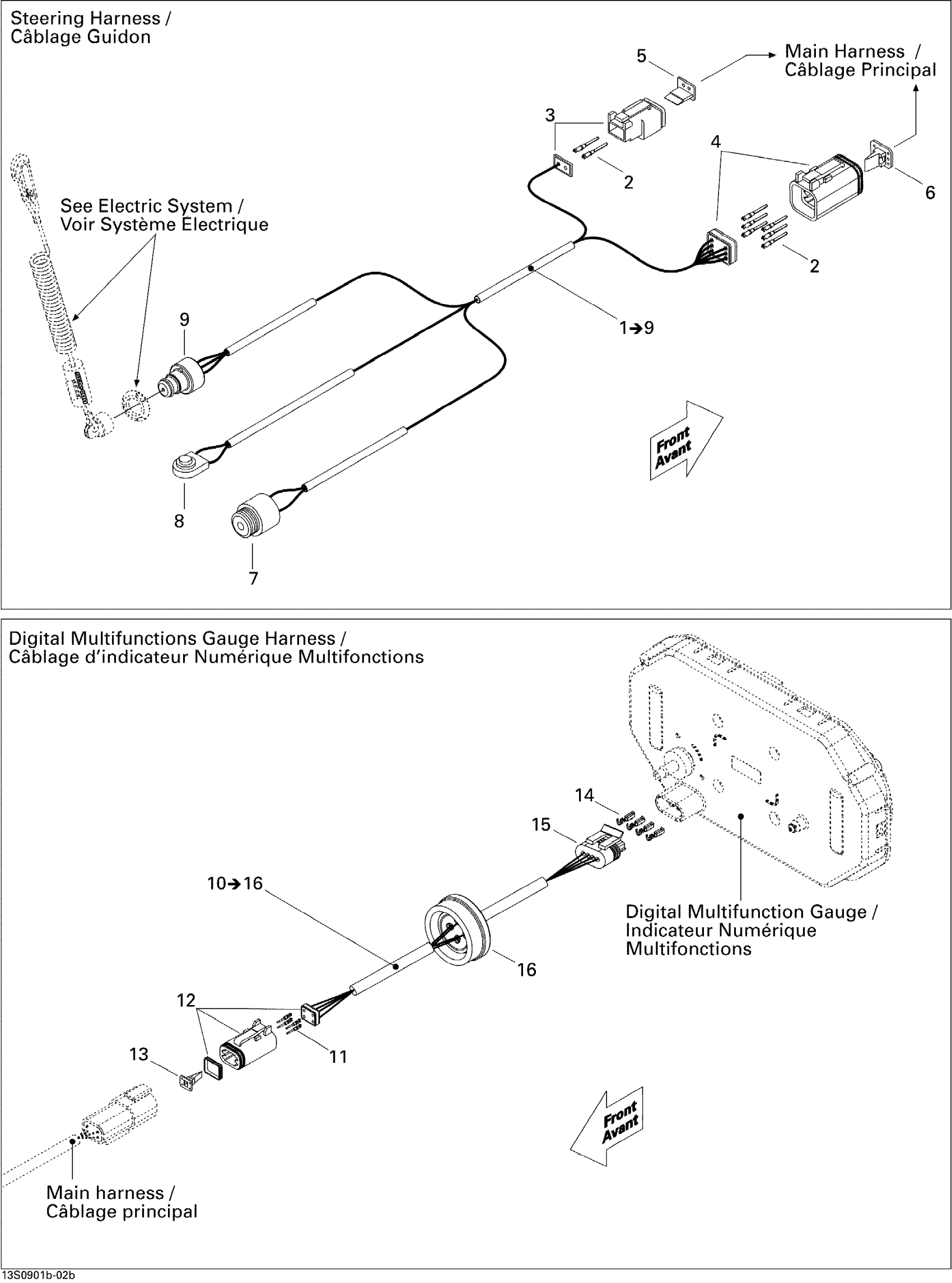

Sea-doo GTX 155, 2009 Electrical Harness 2 Diagram

#

Description
Price

1

Steering Harness Ass’y | SERV

278002383

Unavailable

2

Female Terminal

278000632

Unavailable

3

Female Connector, 2 Circuits

409207300

$9.60

4

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

7

Buzzer | SERV

278002290

Unavailable

8

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

9

Interrupteur *Safety Switch | SERV This part replaces 278002350.

278002774

Unavailable

10

DIGITAL MULTIFUNCTION GAUGE HARNESS - Call your local BRP dealership | Includes 10 to 16

278002180

Unavailable

11

Female Terminal

278000632

Unavailable

12

Male Connector, 4 Circuits | CE

278000739

$14.92

13

Male Lock, 4 Circuits | CE

278000738

$2.91

14

Female Terminal

278001114

$2.55

15

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

16

CABLE GROMMET - Call your local BRP dealership

293720079

Unavailable
