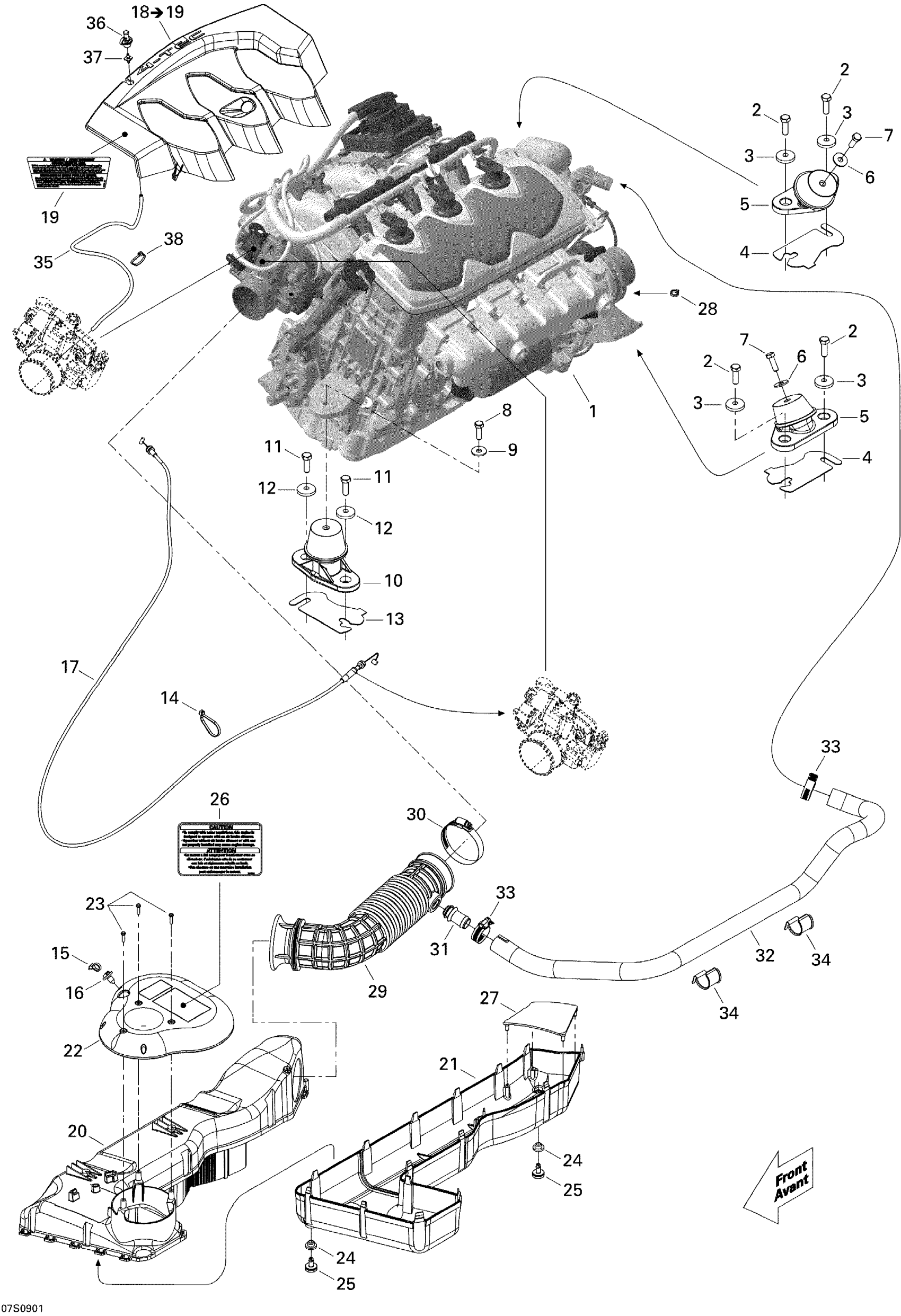

Sea-doo GTX 155, 2009 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150318.

420150392

Unavailable

56

Engine Long Block This part replaces 420150318.

420150392

Unavailable

2

Hex. Screw M8 X 40, Scotch Grip

207284060

Unavailable

3

Cone Washer

250200018

Unavailable

4

Shim 1.3 mm

270000762

Unavailable

5

Engine Support Ass'y

270001081

Unavailable

6

Flat Washer 8 mm, Stainless

234082600

Unavailable

7

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

8

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

9

Flat Washer 8 mm, Stainless

234082600

Unavailable

10

Engine Support Ass'y

270001096

Unavailable

11

Hex. Screw M8 X 40, Scotch Grip

207284060

Unavailable

12

Cone Washer

250200018

Unavailable

13

Shim 1.3 mm

270000762

Unavailable

14

Tie-Rap 180 mm

414115200

$0.09

15

Tie Wrap 142 mm

293750002

Unavailable

16

Mount Dart

293730040

$0.86

17

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

18

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

19

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

20

AIR SILENCER UPPER - Call your local BRP dealership

273000244

Unavailable

21

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

22

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

23

Hex. Flange Screw K40 X 16

241141660

Unavailable

24

GROMMET - Call your local BRP dealership

293720064

Unavailable

25

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

26

Caution Decal, Air Silencer

219902673

Unavailable

27

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

28

Tie Wrap 142 mm

293750002

Unavailable

29

INTAKE HOSE - Call your local BRP dealership

273000187

Unavailable

30

Tridon Clamp

293650179

Unavailable

31

Breather Valve

273000234

$10.63

32

Formed Hose

270000949

Unavailable

33

Tridon Gear Clamp

293650051

Unavailable

34

Retainer

275500664

Unavailable

35

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

36

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

37

CONNECTOR - Call your local BRP dealership

293710107

Unavailable

38

Tie Wrap 142 mm

293750002

Unavailable
