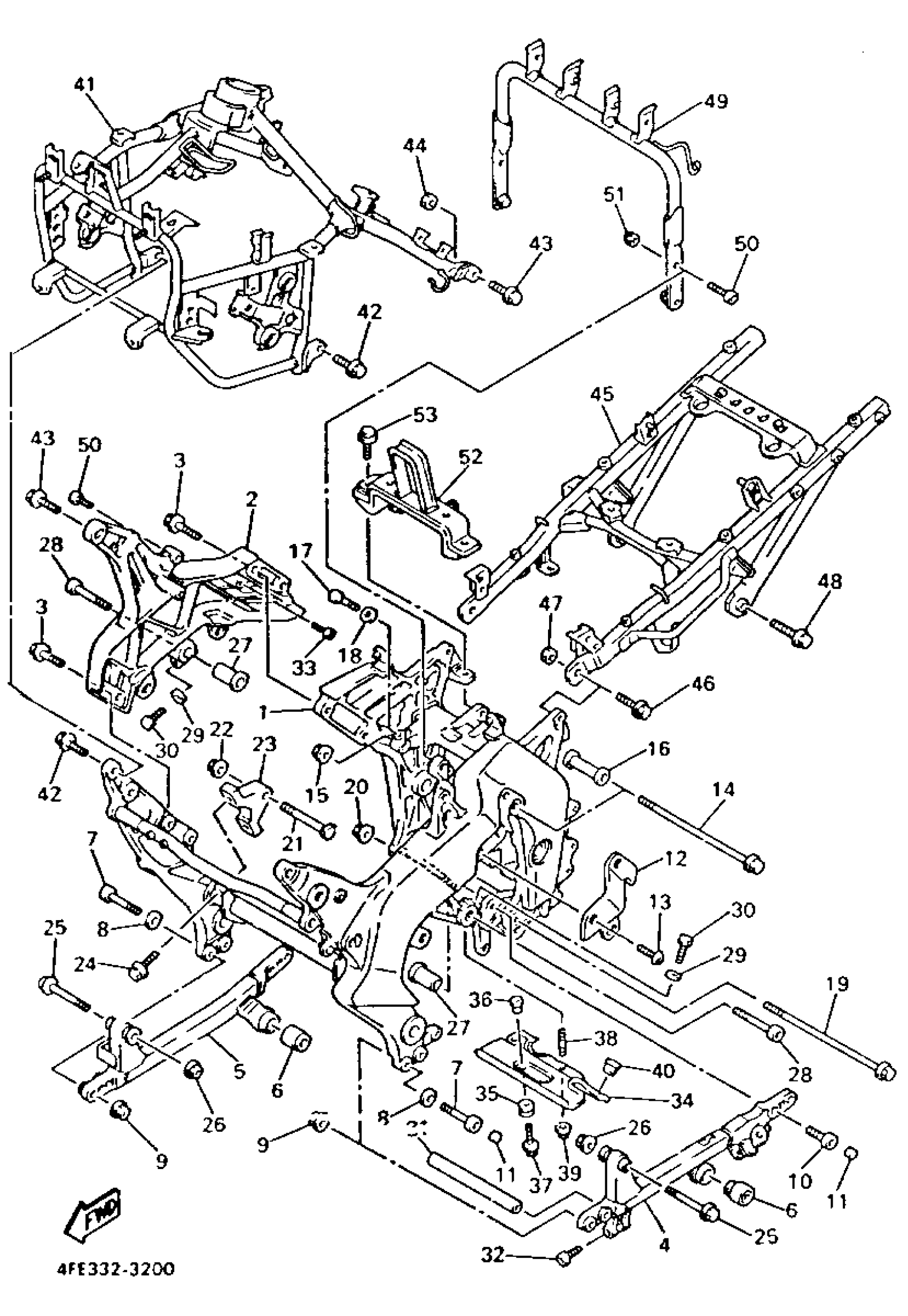

1993 Yamaha GTS1000A CA (GTS1000AEC) Frame Diagram
Find the part on the Frame diagram for your 1993 Yamaha GTS1000A CA (GTS1000AEC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME
4BH-21110-01-P1
2
SIDE MEMBER SUB-ASSEMBLY
4BH-21102-00-P1
3
BOLT, WASHER BASED
90105-10678-00
4
DOWN TUBE COMP.
4BH-21140-00-35
5
DOWN TUBE COMP.2
4BH-21150-00-35
7
BOLT, HEXAGON SOCKET HEAD
90110-10218-00
8
WASHER, PLATE
90201-112R5-00
10
BOLT, HEXAGON SOCKET HEAD
90110-10219-00
11
PLUG, STRAIGHT
90334-08234-00
12
COVER
4BH-2117F-00-P1
14
BOLT, WASHER BASED(1AE)
90105-10401-00
15
NUT
90179-10682-00
16
SPACER
3TJ-21459-00-00
17
BOLT
97017-08035-00
19
BOLT, FLANGE
90105-10N53-00
23
STAY, ENGINE 2
4BH-21315-00-00
27
COLLAR
90387-115V8-00
30
BOLT
97017-08035-00
31
TUBE, CROSS
4BH-21423-00-00
34
PLATE
4BH-21183-00-00
35
GROMMET
90480-20571-00
36
COLLAR
90387-083R4-00
37
BOLT, WITH WASHER
90119-08113-00
41
FRONT FRAME COMP.
99999-02335-00
45
REAR FRAME COMP.
4FE-21190-00-00
49
BRACKET, TANK FITTING
4BH-21348-00-00
52
BRACKET, TANK FITTING
4FE-21345-00-00
