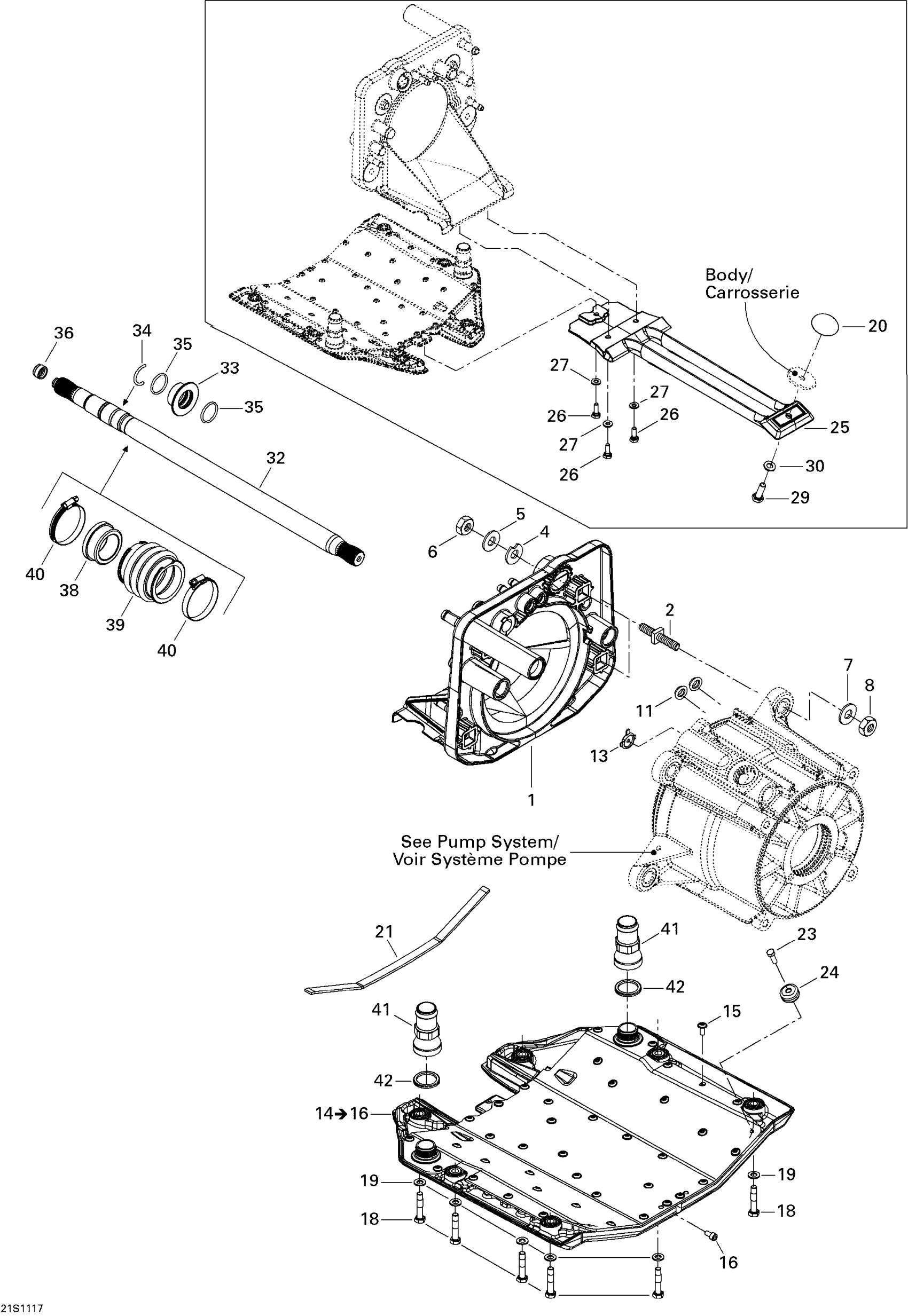

Sea-doo GTS Pro 130, 2011 Propulsion Diagram

#

Description
Price

1

Pump Support

271001545

$107.87

2

Square Stud

250300022

$15.57

4

Shim 0.3 mm

272000053

$8.02

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

Elastic Stop Nut M10, Brass

232501200

$2.16

7

Flat Washer 10 mm, Stainless

234001600

$0.91

8

Elastic Stop Nut M10, Brass

232501200

$2.16

11

Watertight Seal

293250084

$5.81

13

Reducer This part replaces 291001887.

291004649

$12.57

14

Riding Plate Ass'y | Includes 10 to 12

271001649

$220.32

15

Torx Button Head Screw M6 X 14

250000064

$7.06

16

Socket Drain Plug M6 X 12

250500005

$11.74

18

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.05

19

Stainless, Flat Washer 8 mm

234081600

$0.46

20

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable

21

Gasket, Neoprene 2000Mm Long

219704476

$12.64

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

24

Anode Zinc

271001813

$13.62

25

Pump Grate, Black

271001527

$17.52

26

Hex. Screw M6 X 16

207161660

$1.22

27

Stainless Flat Washer M6

234061600

$0.25

29

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

30

Stainless, Flat Washer 8 mm

234081600

$0.46

32

Drive Shaft This part replaces 271001534.

271001724

$265.82

33

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

34

C-Clip

271001575

$4.54

35

O-Ring

293300044

$0.86

36

Drive Shaft Plug

272000173

$7.02

38

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

39

Bellows

272000183

$22.72

40

Norma Clamp

293650077

$6.11

41

Straight Plastic Fitting

293710111

$6.88

42

O-Ring

293300121

$6.18
