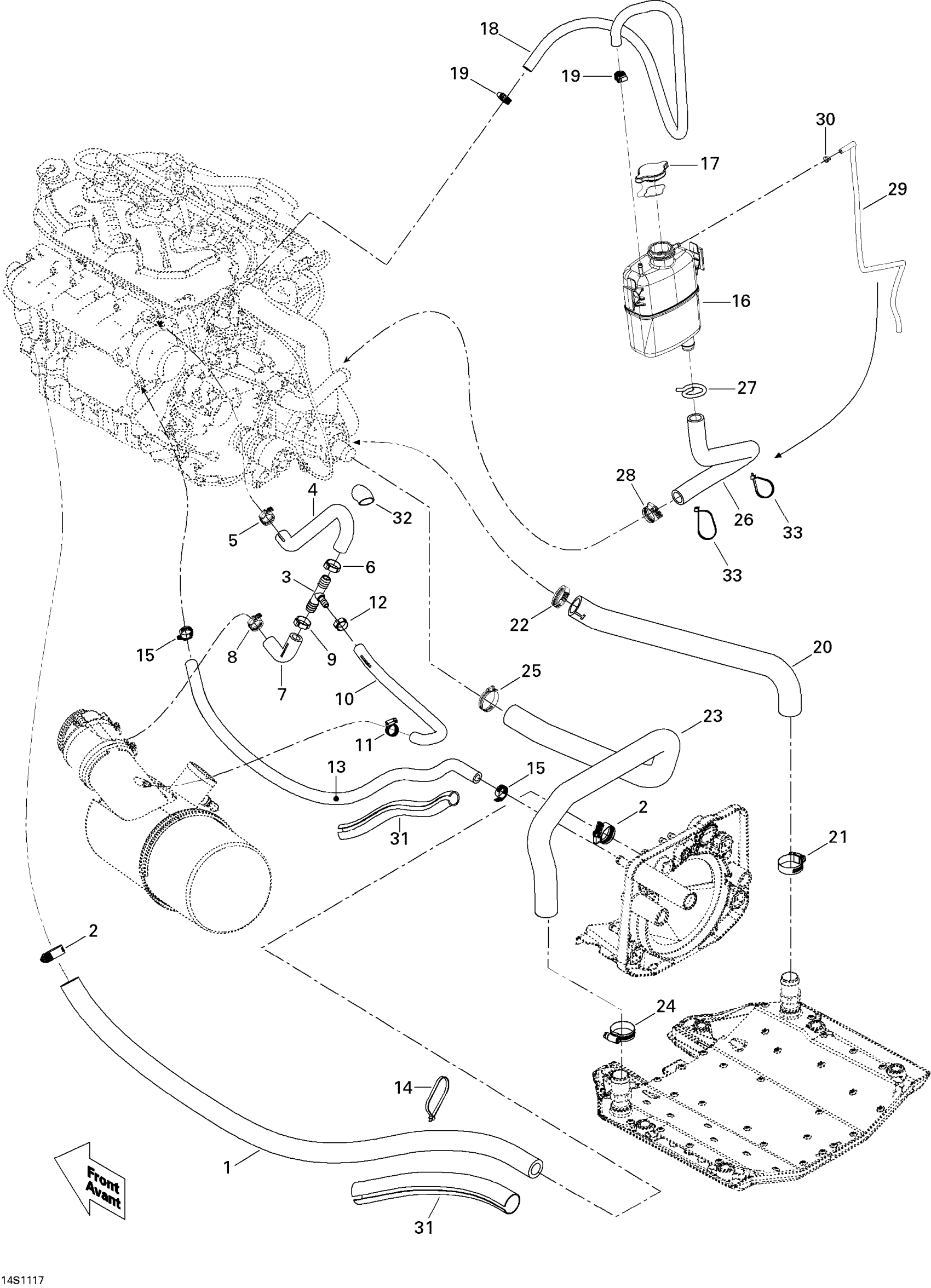

Sea-doo GTS Pro 130, 2011 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

2

Tridon Gear Clamp

293650051

$3.61

3

T-Fitting

293710116

$14.27

4

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

5

Tridon Gear Clamp

293650172

$2.68

6

Oetiker Clamp

293650012

$4.94

7

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

8

Tridon Gear Clamp

293650172

$2.68

9

Oetiker Clamp

293650012

$4.94

10

Formed Hose | Without Catalyst

276000246

$14.92

11

Tridon Gear Clamp

293650171

$2.46

12

Oetiker Clamp | Europe

293650030

$4.32

13

Was 276000001 Hose 12.5 mm

219704394

$42.87

14

Tie Wrap 368 mm

293750008

$0.85

15

Tridon Gear Clamp

293650172

$2.68

16

Coolant Tank

276000086

$87.72

17

Pressure Cap | Includes 720 to 720a

276000100

$20.77

18

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

19

Tridon Gear Clamp

293650170

$1.74

20

RH Radiator Hose

276000248

$45.47

21

Tridon Gear Clamp

293650185

$10.91

22

Tridon Gear Clamp

293650185

$10.91

23

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

24

Tridon Gear Clamp

293650185

$10.91

25

Tridon Gear Clamp

293650185

$10.91

26

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

27

Spring Clamp

293650115

$2.46

28

Tridon Gear Clamp

293650019

$4.81

29

Polyurethane Hose 10000Mm Long

219704410

$46.12

30

Tie Wrap 94 mm | 4X4

293750001

$0.83

31

Tubing 25 MM 1000MM Long

219704402

$12.69

32

PROTECTOR TUBE 25 MM - Call your local BRP dealership

276000162

Unavailable

33

Tie-Rap 180 mm

414115200

$0.09
