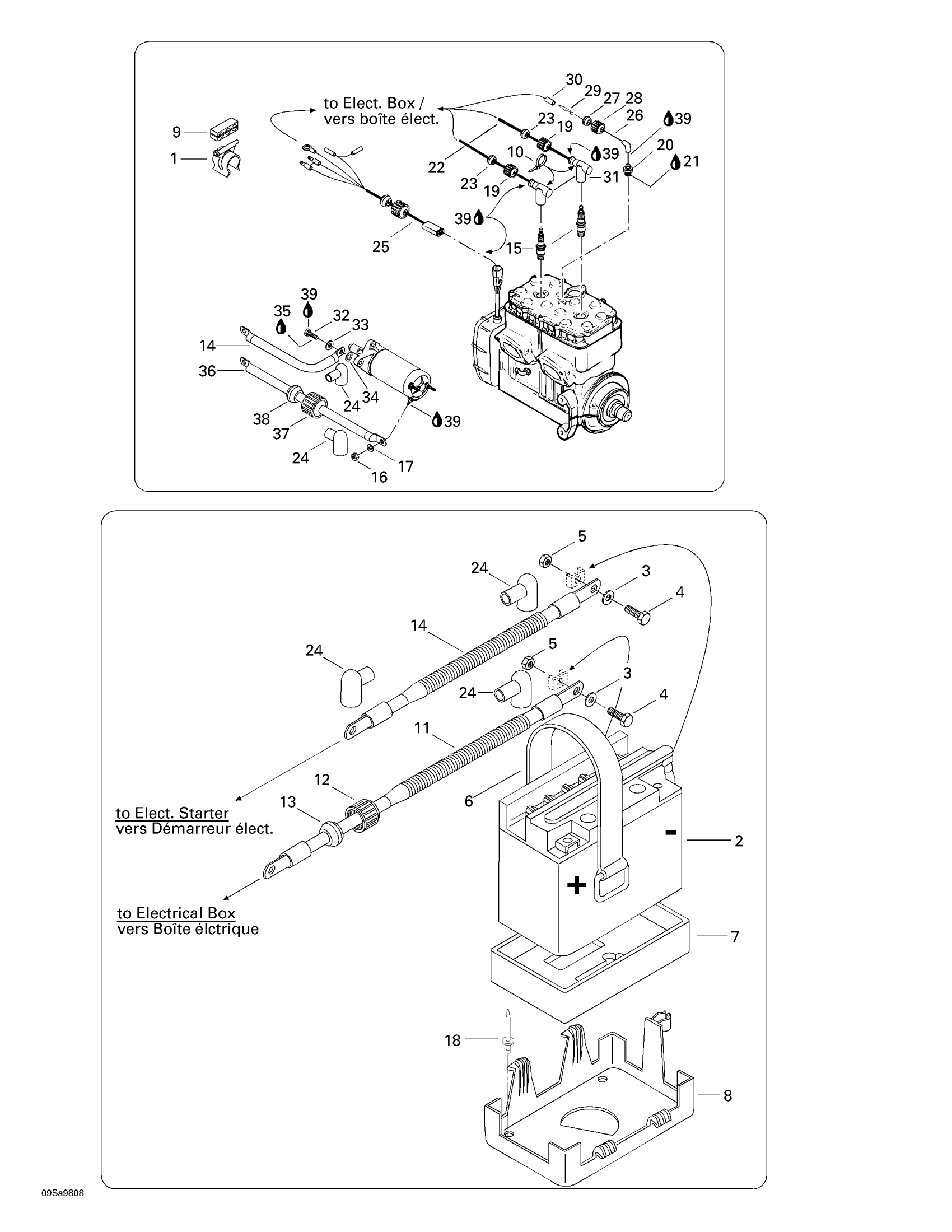

Sea-doo GTS, 5819, 1998 Electrical System Diagram

#

Description
Price

1

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

2

Battery 19A | Includes 5 to 8

278001756

Unavailable

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Screw M6 X 16

207161644

Unavailable

5

Hex. Nut M6

232061414

$0.44

6

Retainer Strap

293850097

Unavailable

7

Battery Lower Pad

278001234

Unavailable

8

Battery Support

278001233

Unavailable

9

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

10

Tie Wrap 142 mm

293750002

Unavailable

11

Battery Cable (Red)

278000514

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

GROMMET - Call your local BRP dealership

278000098

Unavailable

14

Battery Ground Cable

278000681

Unavailable

15

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

16

Hex. Elastic Stop Nut M6

232561600

$0.92

17

Stainless Flat Washer M6

234061600

$0.25

18

Avdel Rivet 3/16"

293150037

$0.47

19

Electric Wire Cap

278000100

Unavailable

20

Temperature Sensor

278000965

Unavailable

21

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

22

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

23

Grommet

278000682

Unavailable

24

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

25

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

26

Temperature Harness Ass'y | Includes 26 - 30.

278001204

Unavailable

27

Grommet, 1 Circuit, Blue

293720030

Unavailable

28

Electric Wire Cap

278000100

Unavailable

29

Male Terminal

278000230

Unavailable

30

Insulation Sheath

278000231

Unavailable

31

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

32

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

33

Stainless, Flat Washer 8 mm

234081600

Unavailable

34

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

35

Loctite 271, 10 ml

293800005

Unavailable

36

Starter Cable (Red) | Includes 51 - 53.

278000192

Unavailable

37

Electric Wire Cap

278000100

Unavailable

38

GROMMET - Call your local BRP dealership

278000098

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
