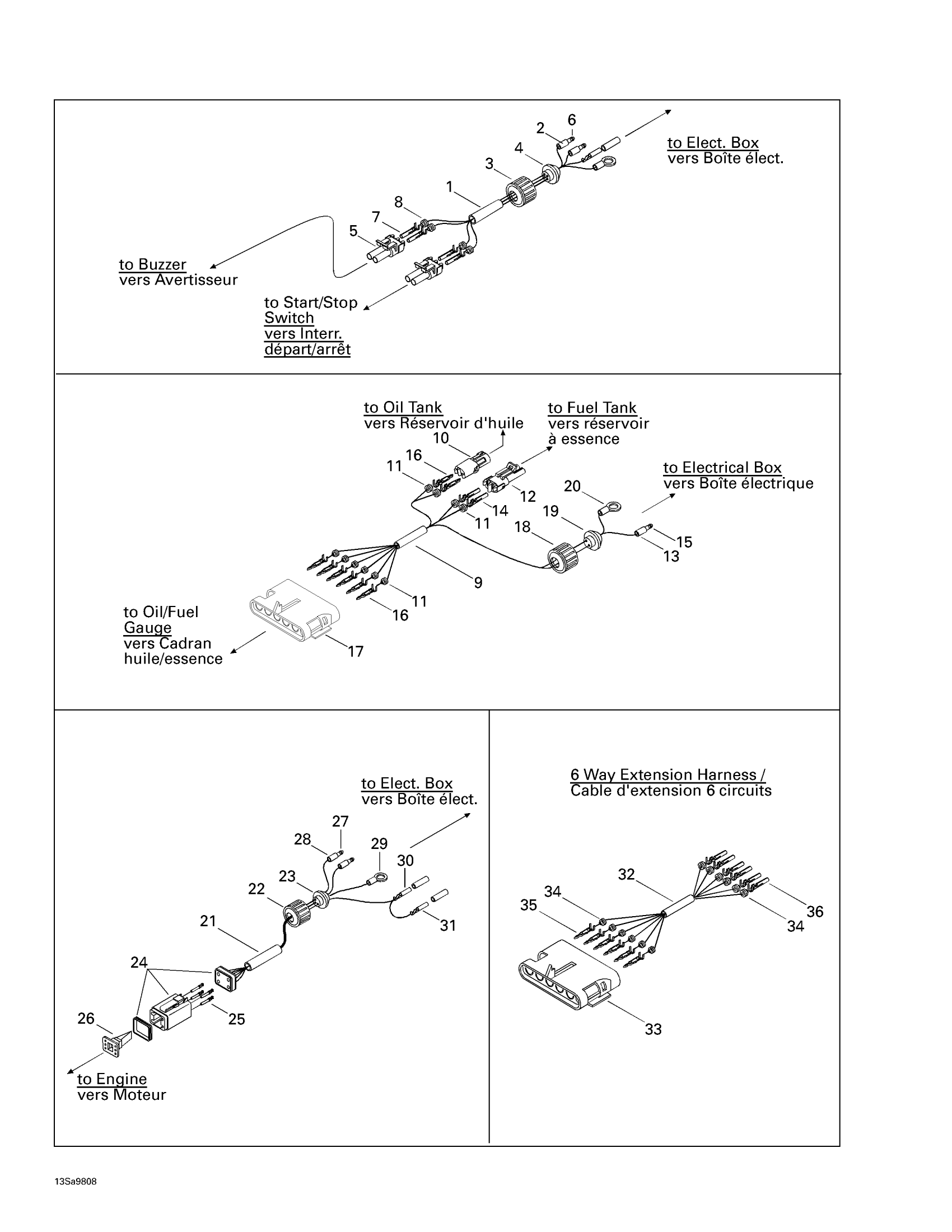

Sea-doo GTS, 5819, 1998 Electrical Harness Diagram

#

Description
Price

1

Buzzer-On/Off Switch Harness | Includes 1 - 8.

278000420

Unavailable

2

Insulation Sheath

278000231

$4.13

3

Electric Wire Cap

278000100

Unavailable

4

Grommet, 4 Circuit, Red

570026800

Unavailable

5

Male Connector, 2 Circuits

278000220

$11.02

6

Male Terminal

278000230

$3.48

7

Female Terminal

278000223

$2.55

8

Wire Seal

278000218

$3.48

9

Gauge Harness (6 Circuits) | Includes 9 - 19.

278000494

Unavailable

10

Female Housing, 2 Circuits

278000217

$7.59

11

Wire Seal

278000218

$3.48

12

Male Connector, 2 Circuits

278000220

$11.02

13

Insulation Sheath

278000231

$4.13

14

Female Terminal

278000223

$2.55

15

Male Terminal

278000230

$3.48

16

Male Terminal | XT Models

278000222

$2.55

17

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

18

Electric Wire Cap

278000100

Unavailable

19

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

20

Ring Terminal

278000300

Unavailable

21

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

22

Electric Wire Cap

278000100

Unavailable

23

Grommet, 4 Circuit, Red

570026800

Unavailable

24

Male Connector, 4 Circuits | CE

278000739

$14.92

25

Female Terminal

278000632

$1.69

26

Male Lock, 4 Circuits | CE

278000738

$2.91

27

Male Terminal

278000230

$3.48

28

Insulated Sheath

278001008

$3.20

29

Ring Terminal

278000300

Unavailable

30

Female Terminal | DS 650 X

278001009

$2.55

31

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

32

6 Circuits Harness | Includes 31 - 35.

278000495

Unavailable

33

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

34

Wire Seal

278000218

$3.48

35

Male Terminal | XT Models

278000222

$2.55

36

Female Terminal

278000223

$2.55
