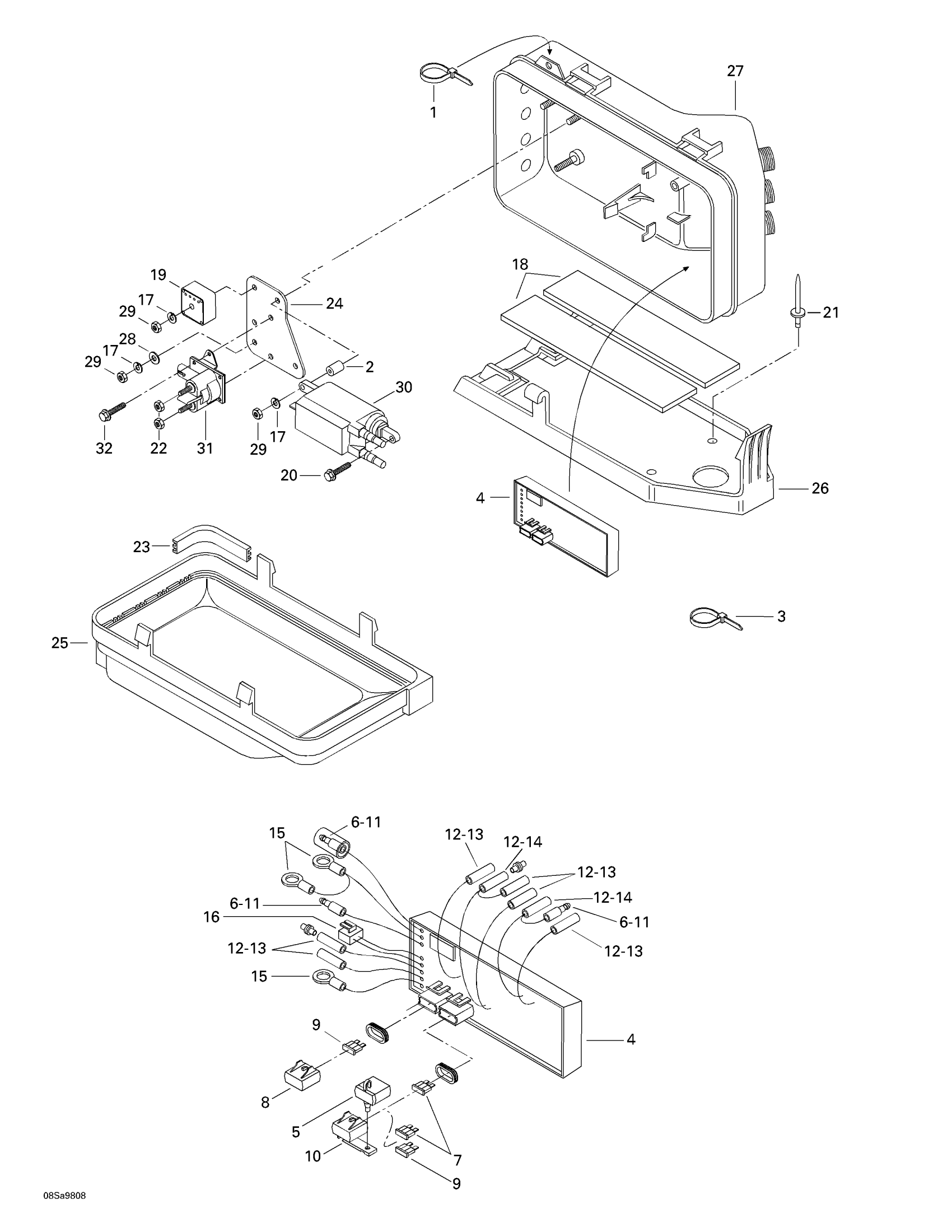

Sea-doo GTS, 5819, 1998 Electrical Box Diagram

#

Description
Price

1

Tie-Rap 173 mm

293750009

Unavailable

2

SPACER - Call your local BRP dealership

278000235

Unavailable

3

Tie Wrap 142 mm

293750002

Unavailable

4

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 4 - 16.

278001025

Unavailable

5

Fuse Holder

278000379

Unavailable

6

Insulated Sheath

278001008

Unavailable

7

Fuse, 5 Amperes | CE

278000344

$3.22

8

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

9

Fuse, 15 Amperes

278000343

$2.72

10

Fuse Holder Cap

278001326

$6.03

11

Male Terminal

278000230

Unavailable

12

Female Terminal | DS 650 X

278001009

Unavailable

13

Insulated Sheath

278001007

Unavailable

14

Insulated Sheath

278000770

Unavailable

15

Open Barrel

278000992

$1.79

16

Female Terminal

278001114

$2.55

17

Lock Washer Helical M6

234161601

Unavailable

18

Rubber Strip

293830012

Unavailable

19

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

20

Self Tapping Screw M6.3 x 25

215462550

Unavailable

21

Avdel Rivet 3/16"

293150037

$0.47

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

Gasket

278000181

Unavailable

24

Mounting Plate

278000615

Unavailable

25

Electric Box Cover

278001082

Unavailable

26

Electric Box Support

278001119

Unavailable

27

Electric Box Base

278001085

Unavailable

28

Stainless Flat Washer M6

234061600

$0.25

29

Hex. Nut M6

232061600

Unavailable

30

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

31

Starter Relay

278003012

Unavailable

32

Hex. Flange Screw M6 X 10

210261040

Unavailable
