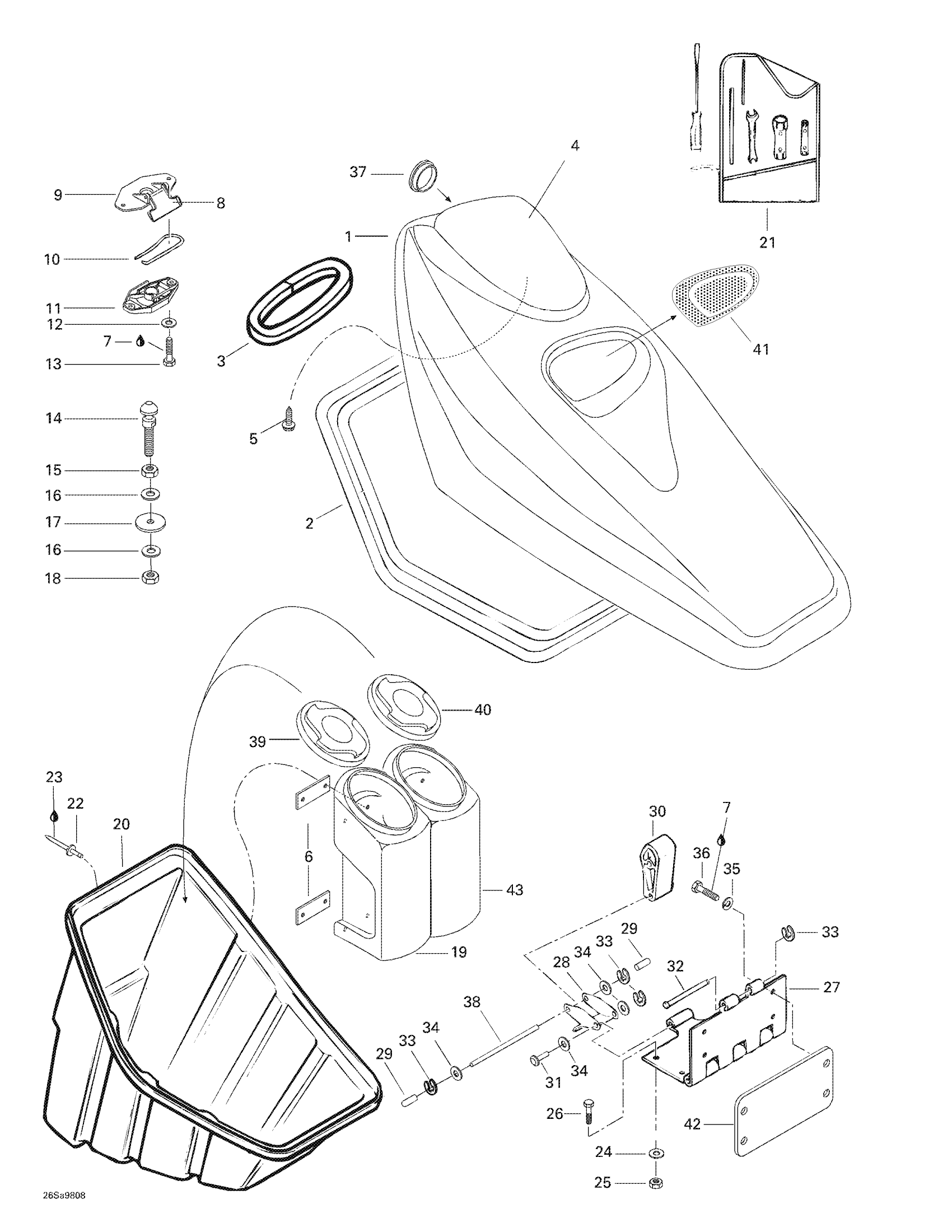

Sea-doo GTS, 5819, 1998 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover (Violet)

269500430

Unavailable

2

Was 293200017 Neoprene Seal

219704365

Unavailable

3

Seal Tray

293200031

Unavailable

4

Deflector (Violet)

269500431

Unavailable

5

SCREW-SPECIAL - Call your local BRP dealership

211000073

Unavailable

6

GASKET - Call your local BRP dealership

293250037

Unavailable

7

Loctite 243, 10 ml

293800060

$20.77

8

Latch Ass'y

269700109

Unavailable

9

Latch Ass'y

269700109

Unavailable

10

Latch Spring

269700017

$7.27

11

Latch Ass'y

269700109

Unavailable

12

Stainless Flat Washer M6

234061600

$0.25

13

Hex. Screw M6 X 30

207063060

Unavailable

14

LATCH STUD - Call your local BRP dealership

291000690

Unavailable

15

Hex. Jam Nut M10

232100600

Unavailable

16

Flat Washer 10 mm, Stainless

234002600

Unavailable

17

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

18

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

19

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

20

Storage Tray

269500152

Unavailable

21

Tool Kit

295000066

Unavailable

22

Rivet

293150017

Unavailable

23

Silicone Sealant 51388, 300 ml

296000309

Unavailable

24

Flat Washer M6, Stainless

234062600

Unavailable

25

Hex. Elastic Stop Nut M6

232561600

$0.92

26

Hex. Forming Screw M6 X 20

207162060

Unavailable

27

Hinge

269500306

Unavailable

28

Spring

269000023

Unavailable

29

Short Cap

293000025

Unavailable

30

Latch

269000025

Unavailable

31

Short Pin

269000026

Unavailable

32

Long Pin

269000027

Unavailable

33

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

34

Stainless Flat Washer M6

234061600

$0.25

35

Lock Washer Helical M6

234161601

Unavailable

36

Hex. Screw M6 X 25

207162560

Unavailable

37

Gauge Cap (Violet)

269700058

Unavailable

38

Pin

269500069

Unavailable

39

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

40

Storage Housing Cap

269500237

Unavailable

41

Intake Grille (Black)

269500165

Unavailable

42

Spacer

269500063

Unavailable

43

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable
