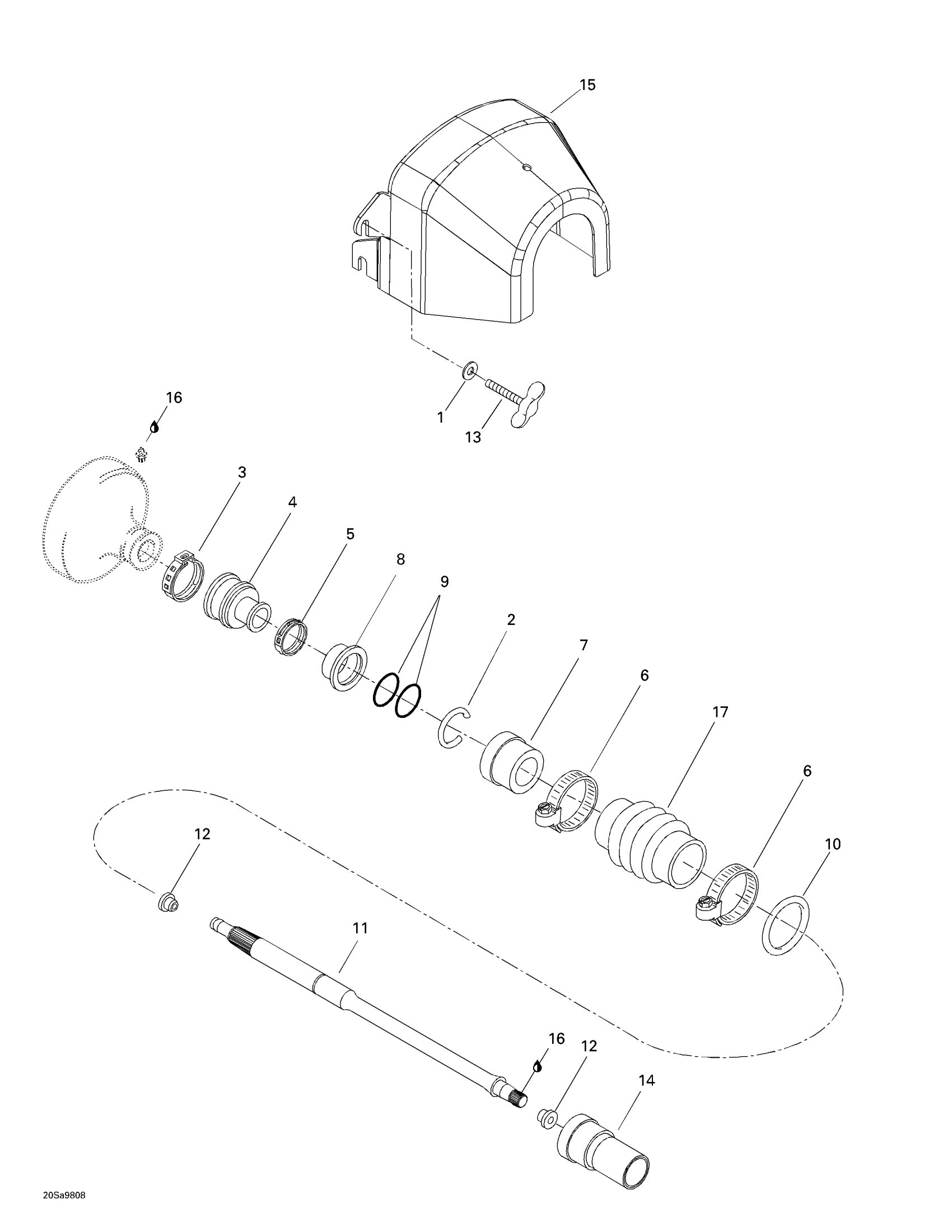

Sea-doo GTS, 5819, 1998 Drive System Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

Unavailable

2

C-CLIP - Call your local BRP dealership

272000135

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

Unavailable

7

Carbon Ring

272000770

Unavailable

8

Support Ring

272000064

Unavailable

9

O-Ring

293300032

Unavailable

10

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

11

Drive Shaft

272000073

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Screw M6 x 16

211000070

Unavailable

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

Flywheel Guard

272000132

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

BELLOWS - Call your local BRP dealership

272000184

Unavailable
