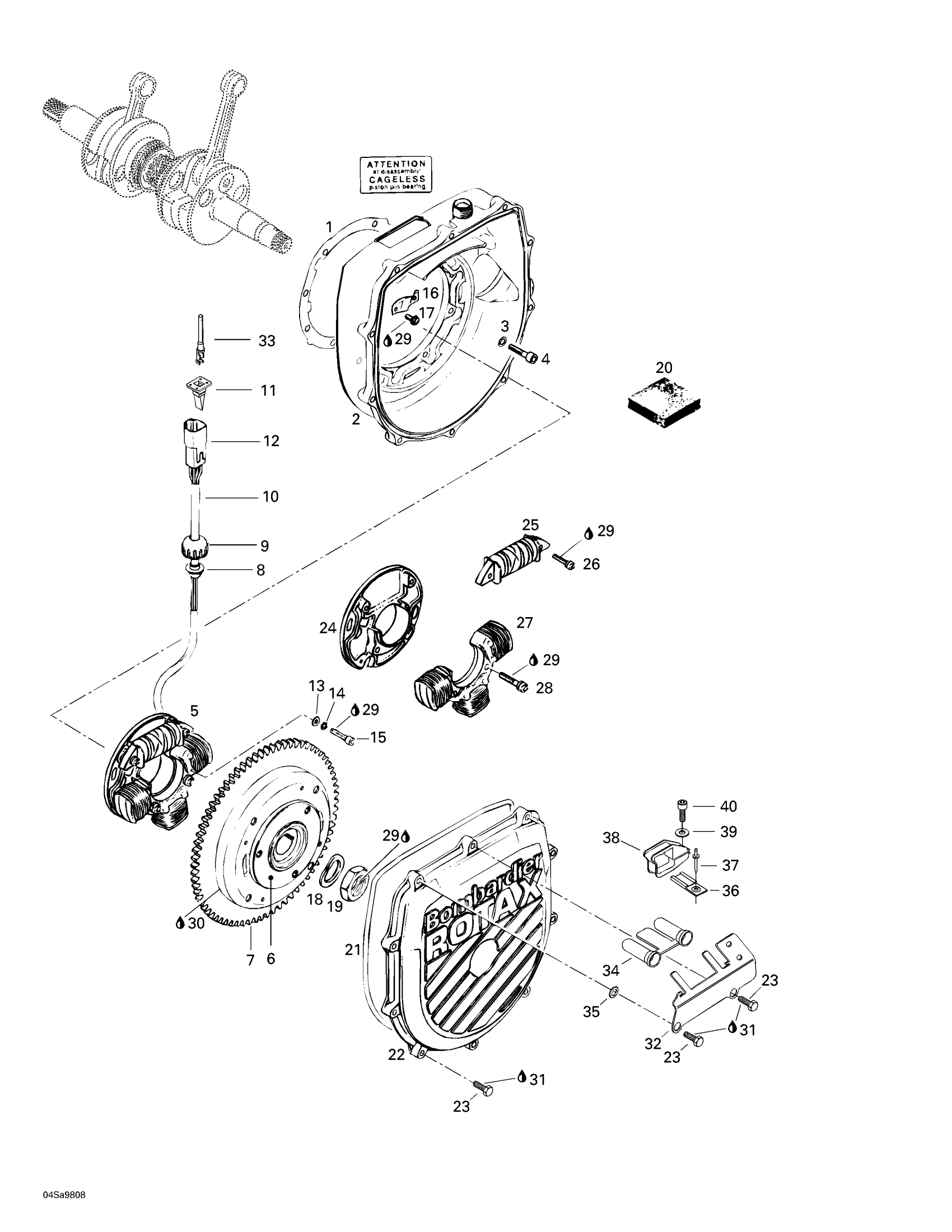

Sea-doo GTS, 5819, 1998 Magneto Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

290850605

Unavailable

2

Ignition Housing (Silver)

290810852

Unavailable

3

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

4

Socket Head Screw M6 X 25

205062544

$0.88

5

ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725.

420886725

Unavailable

6

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership | Includes 6 - 7.

290995119

Unavailable

6

Flywheel

290995118

Unavailable

7

Starter Gear 77 Teeth

290834060

Unavailable

8

Grommet

293720034

Unavailable

9

Electric Wire Cap

278000100

Unavailable

10

Tubing Isolation (75 mm)

290260931

Unavailable

11

Female Wedge, 4 Circuits

278000636

$4.12

12

Female Housing, 4 Circuits

278000635

$14.02

13

WASHER - Call your local BRP dealership

420827800

Unavailable

14

Lock Washer

420945750

Unavailable

15

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

16

Retainer Plate

290853080

Unavailable

17

Hex. Screw M5 x 8

215050848

Unavailable

18

Lock Washer, 22 mm

420945759

Unavailable

19

Hex. Nut, M22 X 1.5

420842239

Unavailable

20

Protection Mat

290860680

Unavailable

21

O-Ring

290831555

Unavailable

22

Ignition Cover

290810147

Unavailable

23

Taptite Screw

290841543

Unavailable

24

ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725.

420886725

Unavailable

25

GENERATING COIL - Call your local BRP dealership

410915200

Unavailable

26

SCREW M5 X 22 WITH WASHER - Call your local BRP dealership

420940810

Unavailable

27

Lighting Coil

410916200

Unavailable

28

SCREW M6 X 25 WITH WASHER - Call your local BRP dealership

410913900

$3.05

29

Loctite 243, 10 ml

293800060

$20.77

30

Sealant Loctite 648

219703000

Unavailable

31

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

32

Ground Plate

278000516

Unavailable

33

Male Terminal

278000631

$4.12

34

INSULATOR - Call your local BRP dealership

278000213

Unavailable

35

External Serrated Lock Washer 6 mm

234461608

Unavailable

36

Clip

270000141

$8.33

37

Pop Rivet 3/16"

204000081

Unavailable

38

Adaptor

270000158

Unavailable

39

Stainless Flat Washer M6

234061600

$0.25

40

Socket Screw M6 X 16

205061660

Unavailable

41

Engine Gasket Set (Not Shown)

290886317

Unavailable
