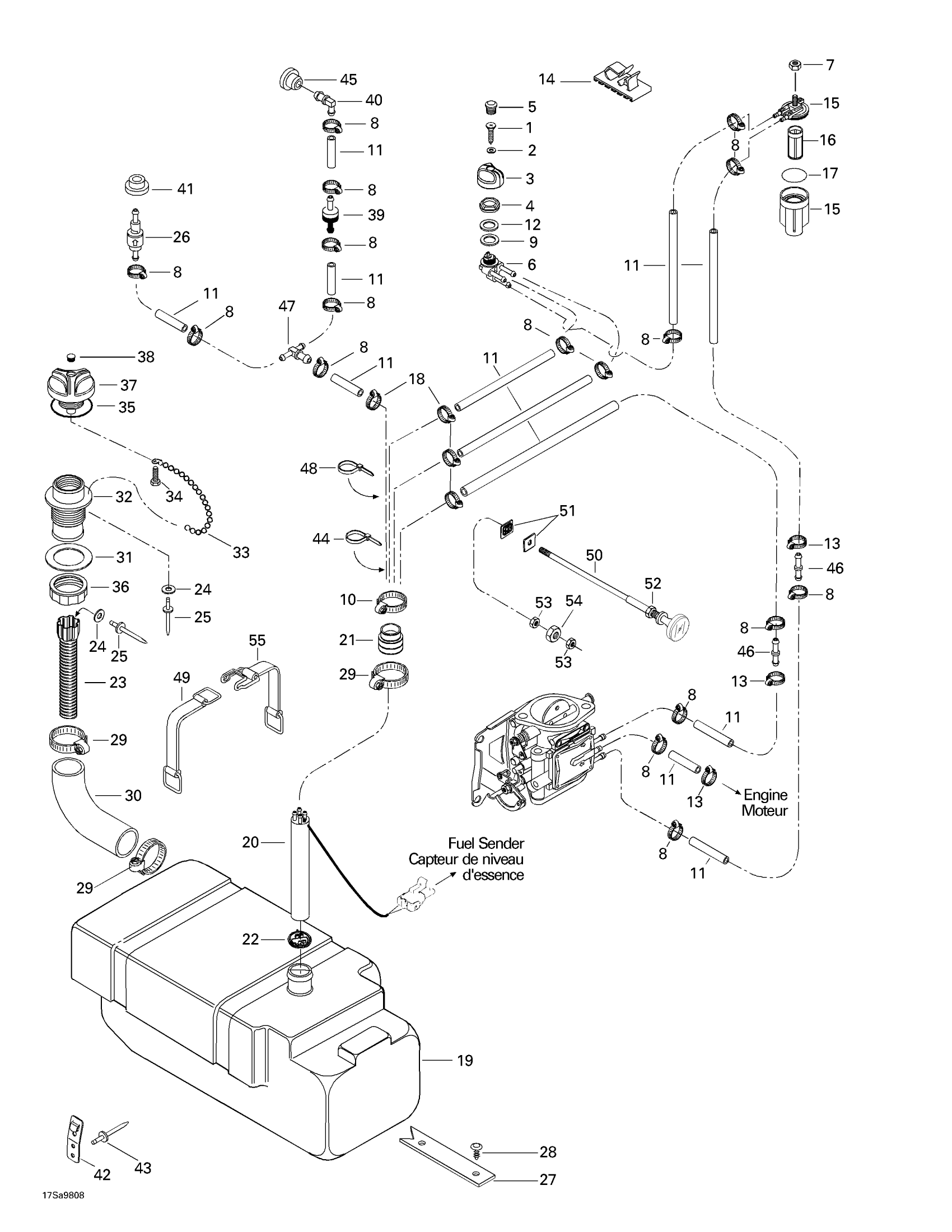

Sea-doo GTS, 5819, 1998 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

Unavailable

3

Fuel Valve Knob

275500380

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Bumper Plug, Black

291000339

Unavailable

6

Fuel Valve

275500098

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Oetiker Clamp

293650042

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650035

Unavailable

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Gasket

293250005

Unavailable

13

Tridon Gear Clamp

293650170

$1.74

14

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

Unavailable

18

Tridon Gear Clamp

293650170

$1.74

19

FUEL TANK - Call your local BRP dealership

275500183

Unavailable

20

Baffle Ass'y | Includes 20 - 22.

275500412

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Filler neck (Inner)

275500316

Unavailable

24

Flat Washer M3, Stainless

234032600

$0.54

25

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

26

Pressure Relief Valve (1.5 P.S.I)

275500104

Unavailable

27

Pad Rubber

293830033

Unavailable

28

Black, Dart

293730006

Unavailable

29

Tridon Clamp

293650023

Unavailable

30

Filler Neck Hose

275500211

Unavailable

31

Gasket

293250029

Unavailable

32

Filler Neck

275500247

Unavailable

33

Oil Cap Chain

275500015

Unavailable

34

Screw K40 X 10

241140060

$1.25

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

Unavailable

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

Unavailable

38

Black, Snap Cap

293000034

Unavailable

39

Check Valve

275500398

Unavailable

40

Male Connector

414580700

Unavailable

41

Grommet

293720029

Unavailable

42

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Tie Wrap 368 mm

293750008

$0.85

45

Grommet

709200285

$8.38

46

Straight Fitting

293710039

Unavailable

47

T-Fitting | Europe

293710024

Unavailable

48

Tie-Rap 180 mm

414115200

$0.09

49

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

50

Choke Cable | Includes 49 - 53.

270000324

Unavailable

51

Choke Plate

291000457

Unavailable

52

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

53

Hex. Nut M6

232160600

Unavailable

54

Hex. Nut

211100007

Unavailable

55

Strap | Includes 69 - 70.

293850025

Unavailable
