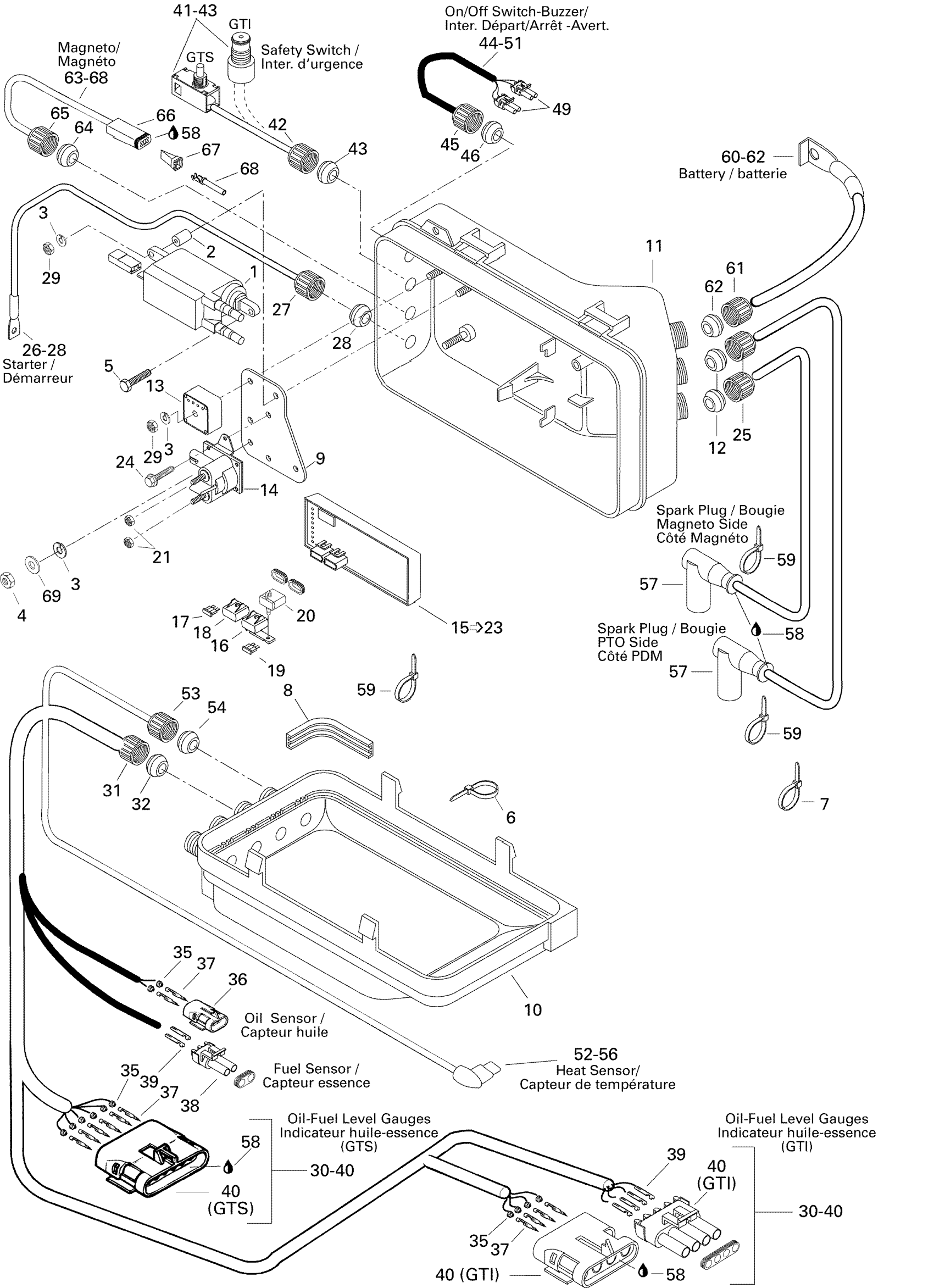

Sea-doo GTS, 5817, 1996 Electrical Box 587 Diagram

#

Description
Price

1

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

2

SPACER - Call your local BRP dealership

278000235

Unavailable

3

Lock Washer Helical M6

234161601

$0.92

4

Hex. Nut M6

232061600

$0.91

5

Self Tapping Screw M6.3 x 25

215462550

Unavailable

6

Tie Wrap 94 mm | 4X4

293750001

$0.83

7

Not Available As Spare Parts

XXX

Unavailable

8

Gasket

278000181

Unavailable

9

Mounting Plate

278000615

Unavailable

10

Electric Box Cover

278000786

Unavailable

11

Electric Box Base

278000781

Unavailable

12

Grommet

278000682

Unavailable

13

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

14

Starter Relay

278003012

$35.07

15

Electronic Module Ass'y | Includes 15 to 23

278000821

Unavailable

16

Fuse Holder Cap

278001326

$5.85

17

Fuse, 15 Amperes

278000343

$2.72

18

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

19

Fuse, 5 Amperes | CE

278000344

$3.12

20

Fuse Holder

278000379

Unavailable

21

Hex. Elastic Stop Nut M6

232561600

$0.92

22

Male Terminal

278000230

$3.48

23

Insulation Sheath

278000231

$4.13

24

Hex. Flange Screw M6 X 10

210261040

$1.25

25

Electric Wire Cap

278000100

Unavailable

26

Starter Cable (Red) | Includes 51 - 53.

278000192

Unavailable

27

Electric Wire Cap

278000100

Unavailable

28

GROMMET - Call your local BRP dealership

278000098

Unavailable

29

Hex. Nut M6

232061600

$0.91

30

Gauge Harness (6 Circuits) | Includes 9 - 19.

278000494

Unavailable

31

Electric Wire Cap

278000100

Unavailable

32

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

33

Male Terminal

278000230

$3.48

34

Insulation Sheath

278000231

$4.13

35

Wire Seal

278000218

$3.48

36

Female Housing, 2 Circuits

278000217

$7.59

37

Male Terminal | XT Models

278000222

$2.55

38

Male Connector, 2 Circuits

278000220

$11.02

39

Female Terminal

278000223

$2.55

40

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

41

Safety Switch | Includes 41 - 43.

278000552

$114.37

42

Electric Wire Cap

278000100

Unavailable

43

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

44

Buzzer-On/Off Switch Wiring | Includes 54 - 63.

278000470

Unavailable

45

Electric Wire Cap

278000100

Unavailable

46

Grommet, 4 Circuit, Red

570026800

Unavailable

47

Male Terminal

278000230

$3.48

48

Insulation Sheath

278000231

$4.13

49

Male Connector, 2 Circuits

278000220

$11.02

50

Female Terminal

278000223

$2.55

51

Wire Seal

278000218

$3.48

52

Temperature Harness Ass'y | (Incl. It. 1,52,64,65)

278000489

Unavailable

53

Electric Wire Cap

278000100

Unavailable

54

Grommet, 1 Circuit, Blue

293720030

Unavailable

55

Male Terminal

278000230

$3.48

56

Insulation Sheath

278000231

$4.13

57

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

58

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

59

Tie Wrap 142 mm

293750002

$0.88

60

Battery Cable (Red)

278000514

Unavailable

61

Electric Wire Cap

278000100

Unavailable

62

GROMMET - Call your local BRP dealership

278000098

Unavailable

63

Engine Harness | (Incl. It.19,21,26,47,52,54,57,64,66,67,68)

278000472

Unavailable

64

Grommet, 4 Circuit, Red

570026800

Unavailable

65

Electric Wire Cap

278000100

Unavailable

66

Male Connector, 4 Circuits | CE

278000739

$14.92

67

Male Lock, 4 Circuits | CE

278000738

$2.82

68

Female Terminal

278000632

$1.69

69

Stainless Flat Washer M6

234061600

$0.25
