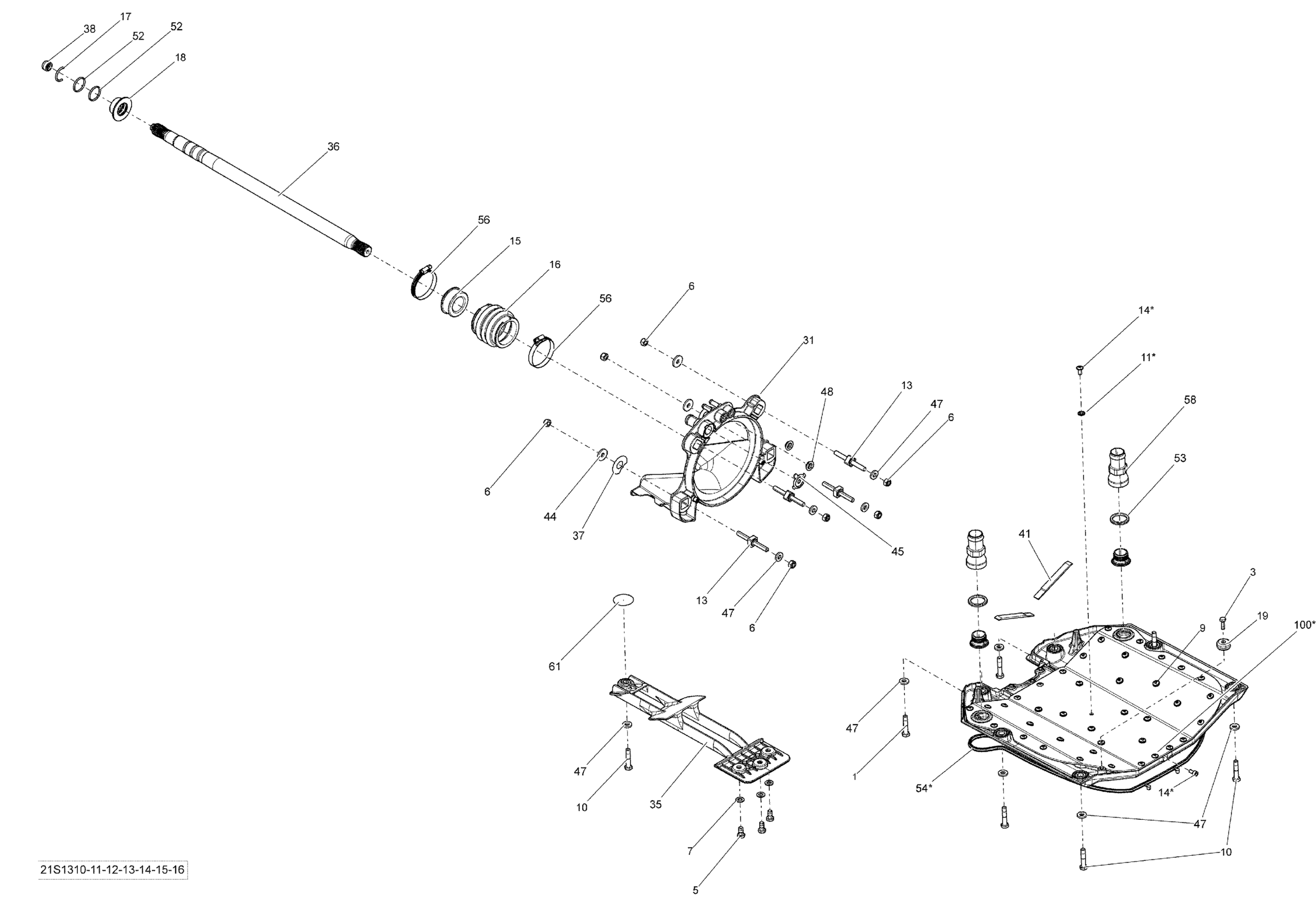

Sea-doo GTR 215, 2013 Propulsion Diagram

#

Description
Price

1

Hex. Screw M8 X 65

207186560

Unavailable

3

Hex. Screw M6 X 20, Scotch Grip

207362060

Unavailable

5

Hex. Screw M8 X 16, Scotch Grip

207381660

Unavailable

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Stainless, Flat Washer 8 mm

234081600

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Torx Button Head Screw M6 X 14

250000064

Unavailable

10

HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership

250000530

Unavailable

11

Sealing Washer

250200114

Unavailable

13

Square Stud

250300046

Unavailable

14

Socket Drain Plug M6 X 12

250500005

Unavailable

15

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

16

Bellow This part replaces 271001422.

271001933

Unavailable

17

C-Clip

271001575

Unavailable

18

Carbon Ring Kit | Includes 280b to 280b4

295501204

Unavailable

19

Anode Zinc

271001813

Unavailable

31

PUMP SUPPORT - Call your local BRP dealership | Hull LFI This part replaces 271001841.

271001682

Unavailable

35

Pump Grate

271001969

Unavailable

36

Drive Shaft

271001719

Unavailable

37

Shim 0.3 mm

272000053

Unavailable

38

Drive Shaft Plug

272000173

Unavailable

41

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

43

Polyurethane Hose 10000Mm Long

219704410

Unavailable

44

Flat Washer

279000336

Unavailable

45

Reducer This part replaces 291001887.

291004649

Unavailable

47

Flat Washer M8.5 x 18

293050001

Unavailable

48

Watertight Seal

293250084

Unavailable

52

O-Ring

293300107

Unavailable

53

O-Ring

293300121

Unavailable

54

Seal

293250235

Unavailable

56

Norma Clamp

293650079

$8.89

58

Straight Plastic Fitting

293710111

Unavailable

61

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable

100

Riding Plate Ass'y | Includes 120 TO 120f

271001860

Unavailable
