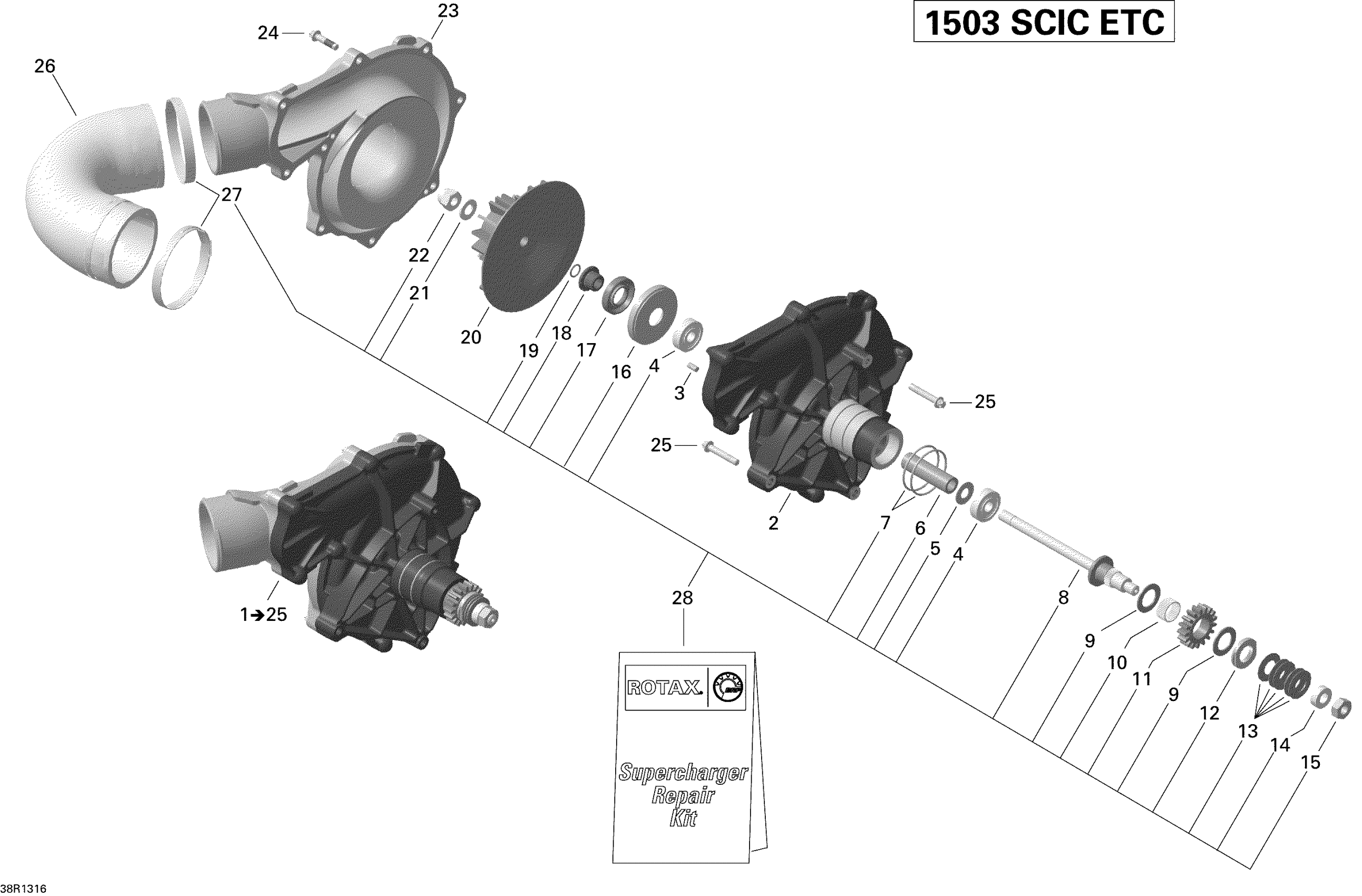

Sea-doo GTR 215, 2013 Supercharger Diagram

#

Description
Price

1

Supercharger Ass'Y | Includes 1 to 25 This part replaces 420881996.

420890489

Unavailable

2

Compressor Base Plate

420867180

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

Bearing Ball This part replaces 420832710.

420832713

Unavailable

5

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

O-Ring | Included in gasket kit

420650270

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Needle Pin This part replaces 420632430.

420632435

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

LOCK WASHER - Call your local BRP dealership

420926377

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

HEX. NUT - Call your local BRP dealership

420942950

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420926393

Unavailable

17

Oil Seal

420950940

Unavailable

18

STEP COLLAR - Call your local BRP dealership

420947012

Unavailable

19

O-Ring

420950950

Unavailable

20

Compressor Impeller

420867191

Unavailable

21

SHIM - Call your local BRP dealership

420627418

Unavailable

22

CAP NUT - Call your local BRP dealership

420842833

Unavailable

23

Compressor Housing

420867154

Unavailable

24

Torx Flange Screw M6 X 25

420641238

Unavailable

25

Torx Flange Screw M6 X 35

420641258

$2.78

26

Formed Hose

420660155

Unavailable

27

Gear Clamp

420851703

Unavailable

28

Supercharger Kit This part replaces 420881101.

420881102

Unavailable
