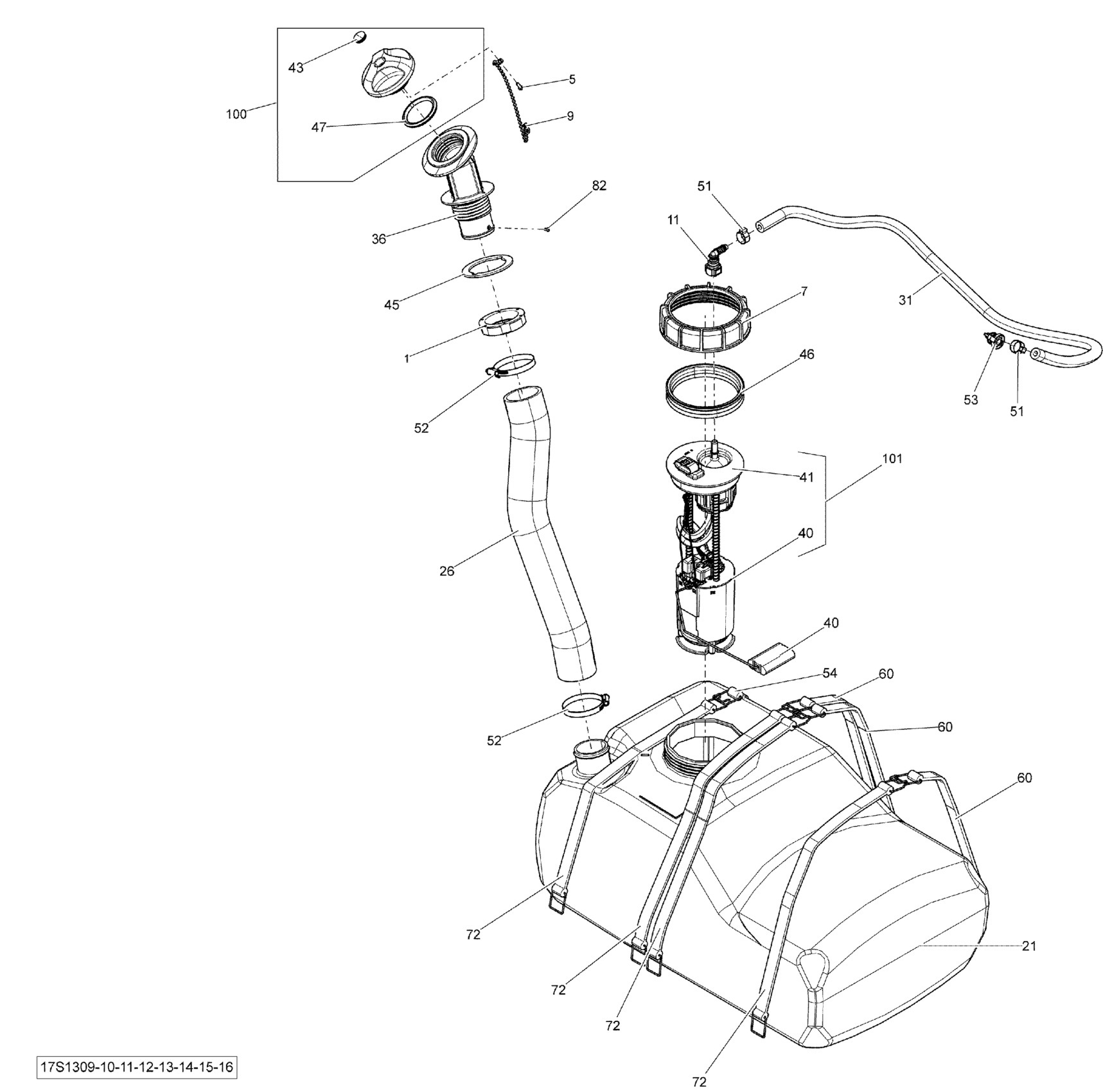

Sea-doo GTR 215, 2013 Fuel System Diagram

#

Description

Price

1

Filler Neck Nut, Fuel

211100012

Unavailable

5

Screw K40 X 10

241140060

$1.25

7

Special Nut M130

250100062

Unavailable

9

Fuel Cap Chain

275500507

Unavailable

11

Quick Attach 90°

275500700

$12.61

21

Fuel Tank

275500962

Unavailable

26

Hose

275500918

Unavailable

31

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

36

Filler Neck

275500845

Unavailable

40

Sensor Lever

275500780

Unavailable

41

Fuel Filter

270600113

Unavailable

43

Black, Snap Cap

293000034

Unavailable

45

Gasket

293250029

Unavailable

46

Gasket

293250173

Unavailable

47

Gasket

293250417

Unavailable

51

Crimp Clamp

293650053

Unavailable

52

Norma Clamp

293650081

Unavailable

53

Elbow Fitting 90°

293710105

$10.58

54

Fuel Tank Strap

293850087

Unavailable

60

Fuel Tank Strap

293850093

Unavailable

72

Fuel Tank Strap

293850101

Unavailable

82

Pop Rivet 1/8"

390407900

Unavailable

100

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

Unavailable

101

Pump Fuel Ass'y | Includes 300 to 300b

275500996

Unavailable
