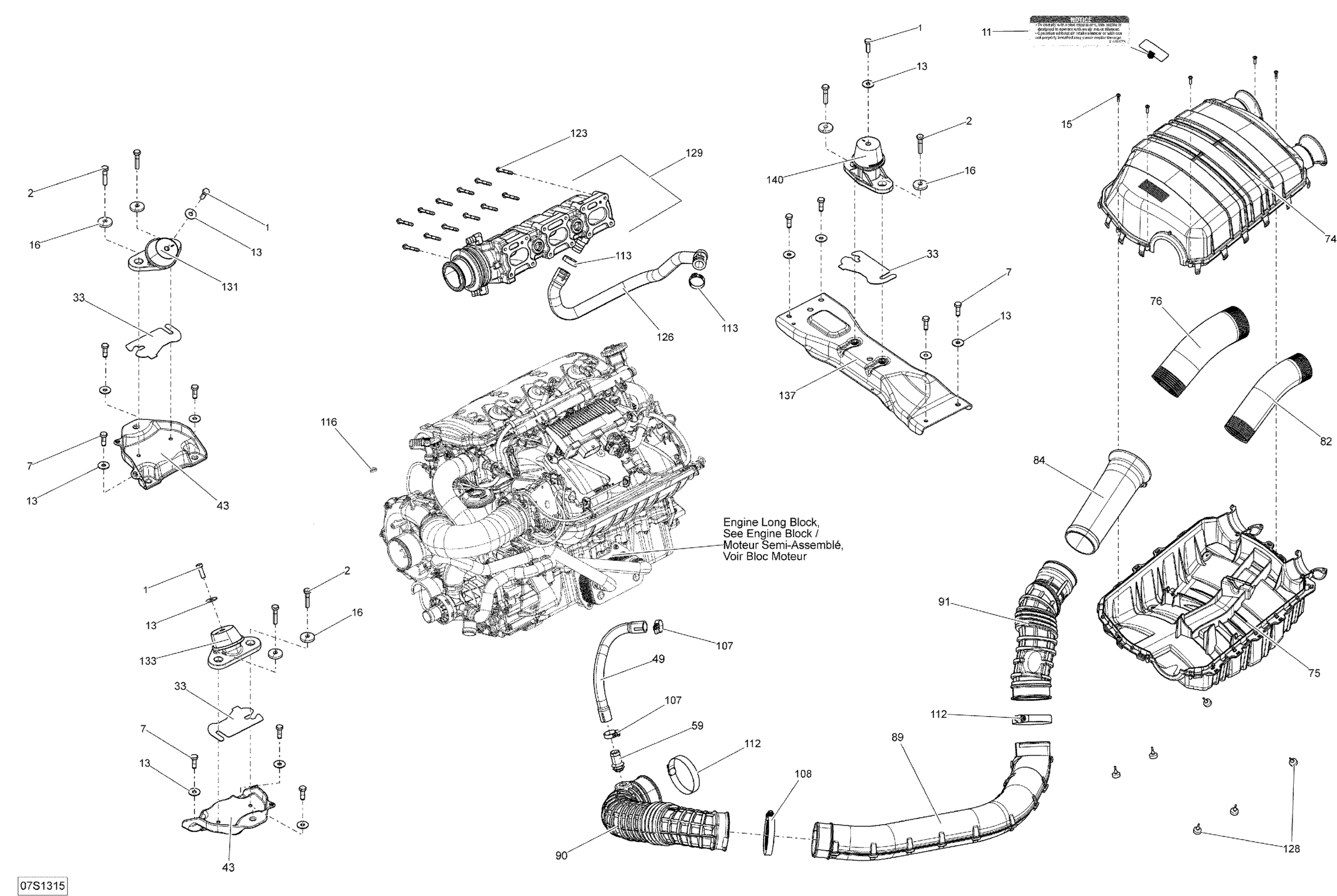

Sea-doo GTR 215, 2013 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

2

Hex. Screw M8 X 40, Scotch Grip

207284060

Unavailable

7

Hex. Screw M8 X 25, Scotch Grip

207382560

Unavailable

11

Air Silencer Notice Decal

219903177

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

Unavailable

15

Flange Torx Screw K40 X 16

250000287

Unavailable

16

Cone Washer

250200018

Unavailable

33

Shim 1.3 mm

270000762

Unavailable

43

REAR SPACER - Call your local BRP dealership | Hull LFI

270000815

Unavailable

49

Formed Hose

270000864

$10.14

59

Breather Valve

273000234

$10.63

74

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

75

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

76

Air Silencer Hose

273000290

Unavailable

84

Intake Hose

273000359

Unavailable

89

INTAKE HOSE, CENTER - Call your local BRP dealership | Model GTR

273000311

Unavailable

90

Hose Intake, Rear | Model GTR

273000328

Unavailable

91

HOSE CONNECTOR - Call your local BRP dealership

273000320

Unavailable

107

Tridon Gear Clamp

293650051

Unavailable

108

Tridon Clamp

293650179

Unavailable

112

Tridon Clamp

293650179

Unavailable

113

Crimp Clamp

293650217

Unavailable

116

Tie Wrap 142 mm

293750002

Unavailable

123

Torx Flange Screw M6 X 45

420641198

Unavailable

126

FORMED HOSE - Call your local BRP dealership

420822174

Unavailable

128

Rubber Stopper

708000759

Unavailable

129

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

Unavailable

131

Engine Support Ass'y

270001081

Unavailable

133

Engine Support Ass'y

270001081

Unavailable

137

Front Spacer | Hull LFI

270000818

$124.58

140

Engine Support Ass'y

270001096

Unavailable
