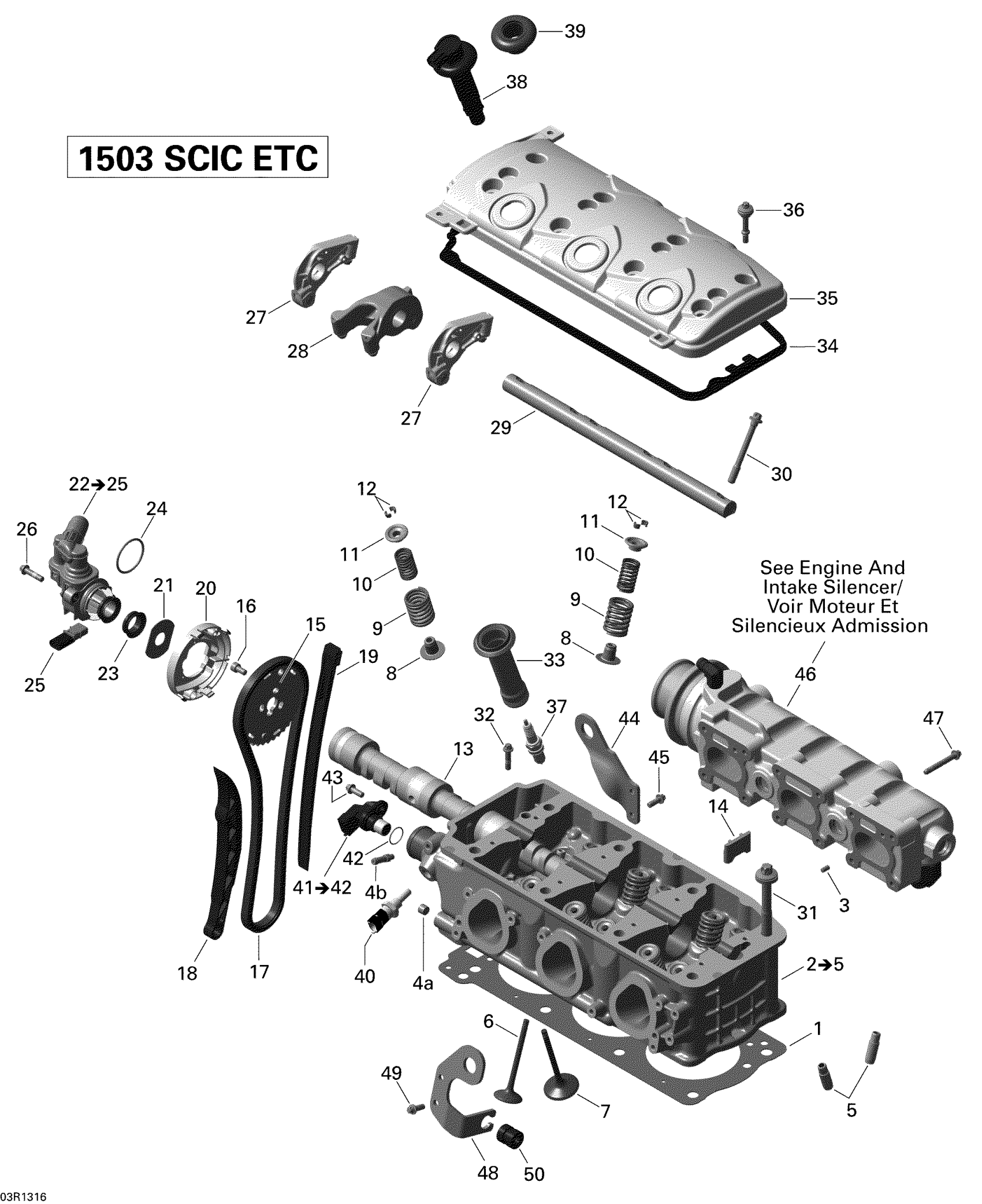

Sea-doo GTR 215, 2013 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

Unavailable

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4a

Plug Screw M10 X 1

420641323

Unavailable

4b

Hose Nipple

420924724

Unavailable

5

Valve Guide | Inner diameter machined

420253929

Unavailable

6

Exhaust Valve, 31 mm

420254682

Unavailable

7

Intake Valve 38MM

420253163

Unavailable

8

Valve Steam Seal

420630202

Unavailable

9

Valve Spring

420238180

Unavailable

10

Valve Spring Inside

420838280

Unavailable

11

Valve Spring Retainer

420254283

Unavailable

12

Valve Cotter

420253645

Unavailable

13

Camshaft This part replaces 420837851.

420637780

Unavailable

14

Camshaft Guide

420851694

Unavailable

15

Timing Gear, 38 Teeth

420254309

Unavailable

16

Allen Screw M6 X 12

420840032

Unavailable

17

Camshaft Chain

420898042

Unavailable

18

Chain Tension Guide

420236541

Unavailable

19

Chain Guide

420236501

Unavailable

20

Cover

420660037

Unavailable

21

Thrust Washer

420627494

$6.11

22

Vent Valve Ass'y | Includes no. 39-42

420856504

Unavailable

23

V-Ring 20S FPM Blow By Valve

420630125

$9.37

24

O-Ring

420950870

$4.41

25

TOPS Switch

420665951

Unavailable

26

Torx Flange Screw M6 X 25

420641238

Unavailable

27

Rocker Arm, Exhaust

420254329

Unavailable

28

Rocker Arm, Inner

420254316

Unavailable

29

Rocker Arm, Shaft

420854594

Unavailable

30

Torx Screw M8 X 72

420641080

Unavailable

31

Torx Flange Screw M11 X 147

420641110

Unavailable

32

Torx Flange Screw M6 X 25

420641238

Unavailable

33

Spark Plug Pipe

420851754

Unavailable

34

Valve Cover Gasket | Included in gasket kit

420950820

Unavailable

35

Valve Cover

420811589

Unavailable

36

Allen Screw M6 x 30,5

420440561

Unavailable

37

Spark Plug, NGK DCP-R8E

715900637

Unavailable

38

Ignition Coil Kit This part replaces 420664020.

296000307

Unavailable

39

Sealing Cup

420460830

Unavailable

40

Temperature Sensor

278002895

$31.82

41

Camshaft Position Sensor Ass'y

420664046

$70.82

42

O-Ring

420631890

$4.24

43

Torx Flange Screw M6 X 16

420641048

Unavailable

44

Transport Bracket PTO

420851618

Unavailable

45

Torx Flange Screw M6 X 16

420641048

Unavailable

47

Torx Flange Screw M6 X 45

420641198

Unavailable

48

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

49

Torx Flange Screw M6 X 16

420641048

Unavailable

50

Rubber Bracket

420660090

Unavailable
