1979 Yamaha Gtmx (GTMXF) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1979 Yamaha Gtmx (GTMXF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

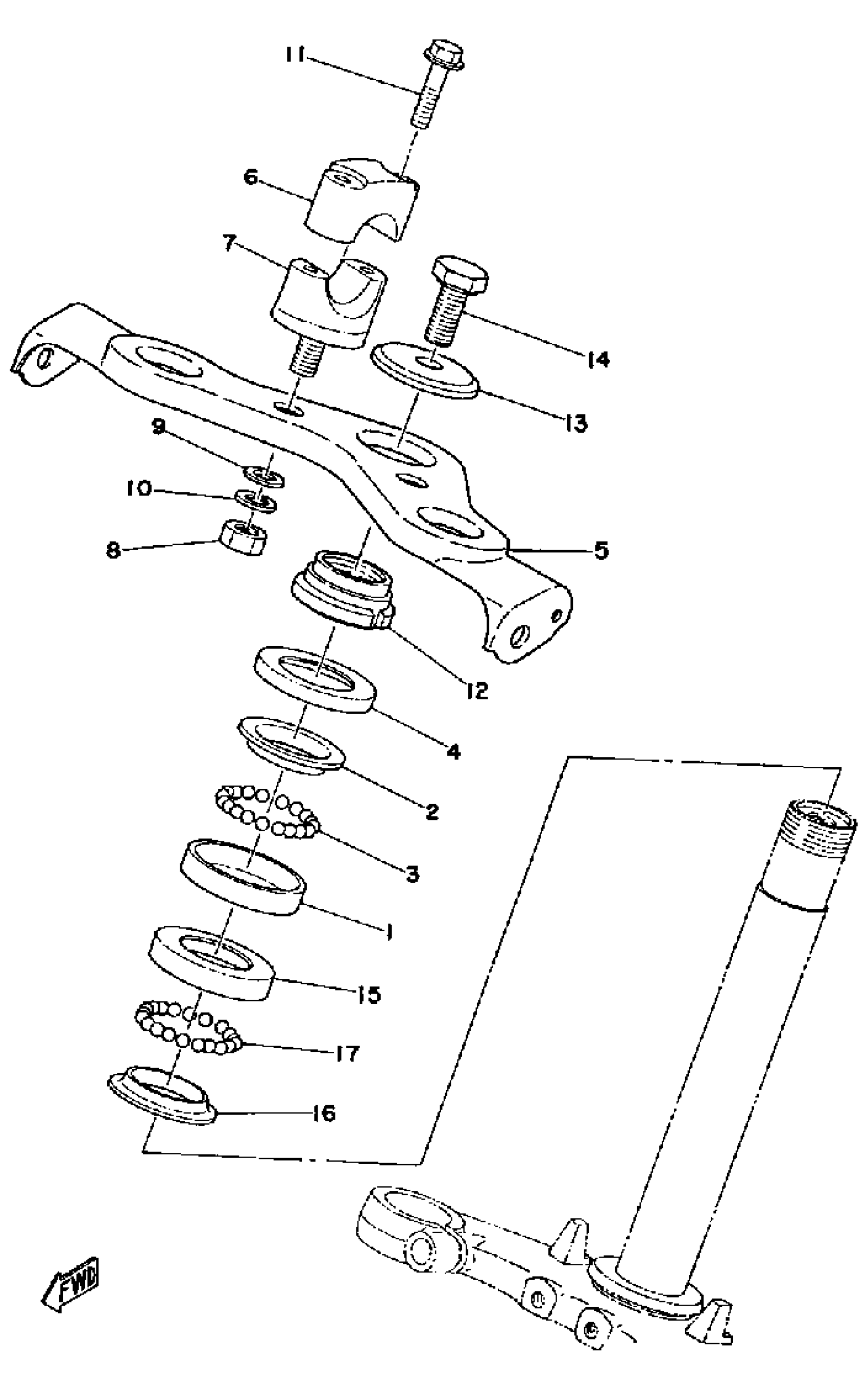

1979 Yamaha Gtmx (GTMXF) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

2

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

3

BALL

93503-16003-00

1

$2.14

In stock

4

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

5

CROWN, HANDLE

185-23435-00-98

1
Out of stock

6

HOLDER, HANDLE UPPER

462-23441-01-00

—
Out of stock

7

HOLDER, HANDLE UNDER

462-23442-00-98

—
Out of stock

8

NUT(3BM)

95314-10600-00

1

$1.74

In stock

9

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

12

NUT (122-23453-00)

90179-25051-00

1
Out of stock

13

WASHER (1YJ)

90209-10160-00

1

$5.68

In stock

14

BOLT 1222345100

90105-10006-00

1

$9.17

In stock

15

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

16

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

17

BALL

93501-04011-00

—
Out of stock
