1978 Yamaha Gtmx (GTMXE) Front Wheel Diagram

← All diagrams

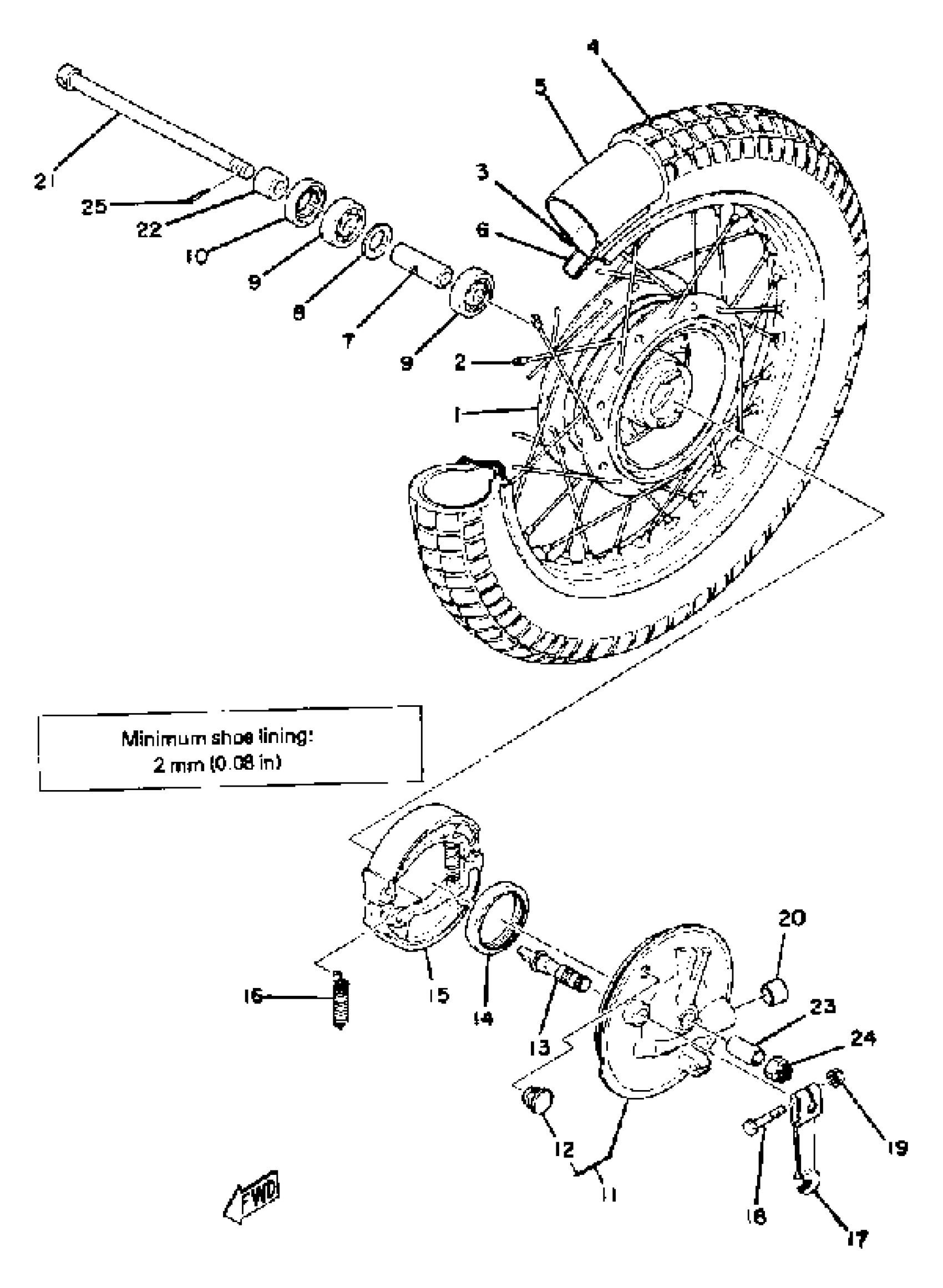

Find the part on the Front Wheel diagram for your 1978 Yamaha Gtmx (GTMXE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha Gtmx (GTMXE) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(367-25111-00-Y8)

1
Out of stock

2

SPOKE SET, FRONT

288-25104-01-00

1
Out of stock

3

RIM 1.40X15

94414-15058-00

1
Out of stock

4

250-15 IRC TRIALS

94125-15478-00

1
Out of stock

5

TUBE (1K8)

94225-15103-00

1

$26.06

In stock

6

BAND, RIM(3DM)

94313-15154-00

1

$5.69

In stock

7

SPACER, BEARING

90560-10303-00

1
Out of stock

8

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

9

BRG,R-B 6300 35MM 58G NT

93306-30003-00

1
Out of stock

10

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

11

PLATE, BRAKE SHOE

1K8-25121-00-35

1
Out of stock

12

GROMMET (397)

90480-10068-00

1

$6.77

In stock

13

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

14

SEAL,OIL

93105-47007-00

1
Out of stock

15

BRAKE SHOE KIT

4KN-W253E-11-00

1

$22.40

In stock

16

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

17

LEVER, CAMSHAFT 1

538-25155-00-00

1
Out of stock

18

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

21

AXLE, WHEEL

99999-02188-00

1
Out of stock

22

COLLAR

90387-10077-00

1
Out of stock

23

COLLAR

90387-10264-00

1
Out of stock

24

NUT 3532518200

90171-10004-00

—

$5.32

In stock

25

PIN, COTTER

91490-20025-00

—

$1.31

In stock
