1973 Yamaha Gtmx (GTMX) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1973 Yamaha Gtmx (GTMX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

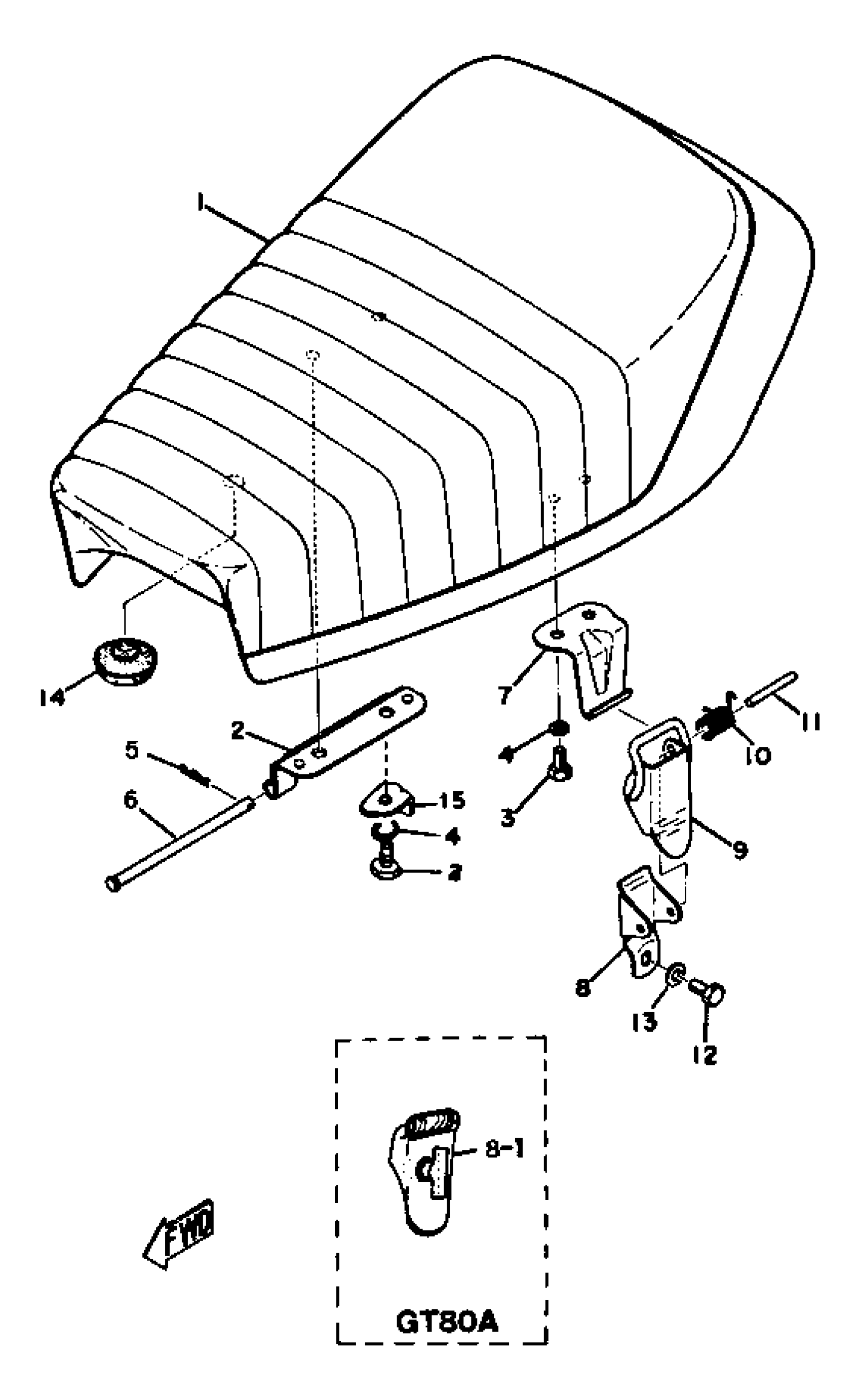

1973 Yamaha Gtmx (GTMX) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. COVER, SM-DBL SEAT

2A3-24771-00-00

1
Out of stock

1

SEMI-DBL-SEAT ASSEMBLY

2A3-W2473-00-00

1
Out of stock

1

SEAT LOCK ASSEMBLY

526-24705-00-00

1
Out of stock

2

HINGE, SEAT

353-24726-00-00

1
Out of stock

3

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

6

PIN, CLEVIS (3M7)

91701-05105-00

1
Out of stock

7

BRACKET, SEAT

278-24728-00-00

1
Out of stock

8

BRACKET, SEAT

214-24718-00-00

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

241-24776-00-33

1
Out of stock

10

. SPRING, TORSION

90508-10012-00

1
Out of stock

11

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

PAD, SEAT

1L9-24741-00-00

—

$8.91

In stock

15

STOPPER

374-24768-00-00

1
Out of stock
