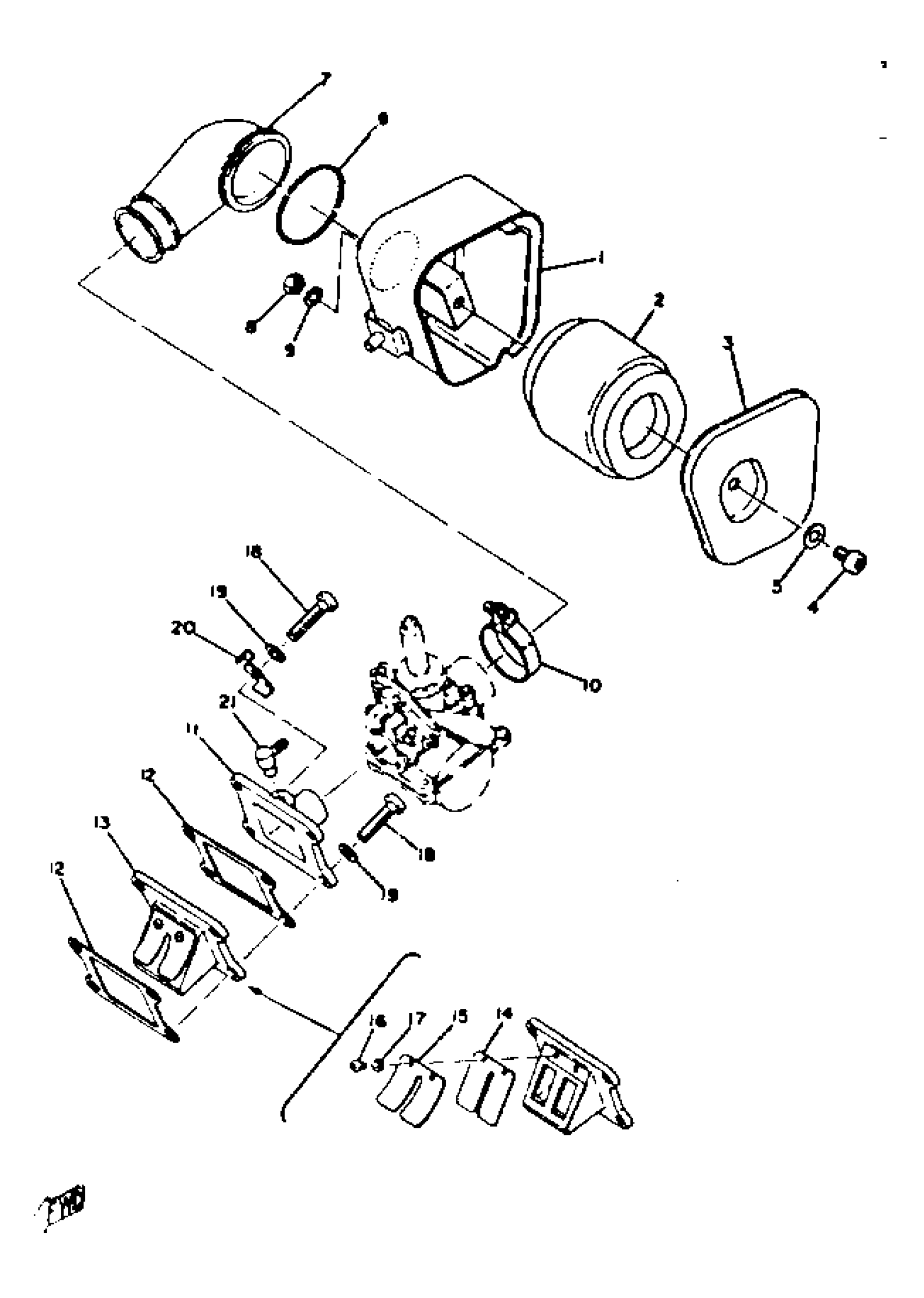

Yamaha GTMX (GTMX) 1973 INTAKE Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

367-14411-00-00

Unavailable

2

ELEMENT, AIR CLEANER

367-14451-08-00

Unavailable

3

CAP, CLEANER CASE 1

2A3-14412-00-00

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$5.75

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

6

BAND 3671445501

90506-06075-00

$6.57

7

JOINT, AIR CLEANER

367-14453-02-00

$34.08

8

NUT, HEXAGON

95380-06600-00

$4.11

9

WASHER, SPRING

92995-06100-00

$2.95

10

CLAMP,HOSE

90460-33013-00

Unavailable

11

JOINT, CARBURETOR (367-13565-00-98)

374-13565-00-00

Unavailable

11

JOINT, CARBURETOR (367-13565-00-98)

374-13565-00-00

Unavailable

12

GASKET, VALVE SEAT

3MT-13621-00-00

$7.03

13

REED VALVE ASSEMBLY

353-13610-01-00

Unavailable

14

VALVE, REED

314-13613-01-00

Unavailable

15

. STOPPER, REED VALVE

10X-13616-00-00

Unavailable

16

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

17

WASHER, SPRING

92990-03100-00

Unavailable

18

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

19

WASHER, SPRING

92995-06100-00

$2.95

20

HOLDER

(367-15378-00-00)

Unavailable

21

NOZZLE

3XV-13741-00-00

Unavailable
