1973 Yamaha Gtmx (GTMX) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1973 Yamaha Gtmx (GTMX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

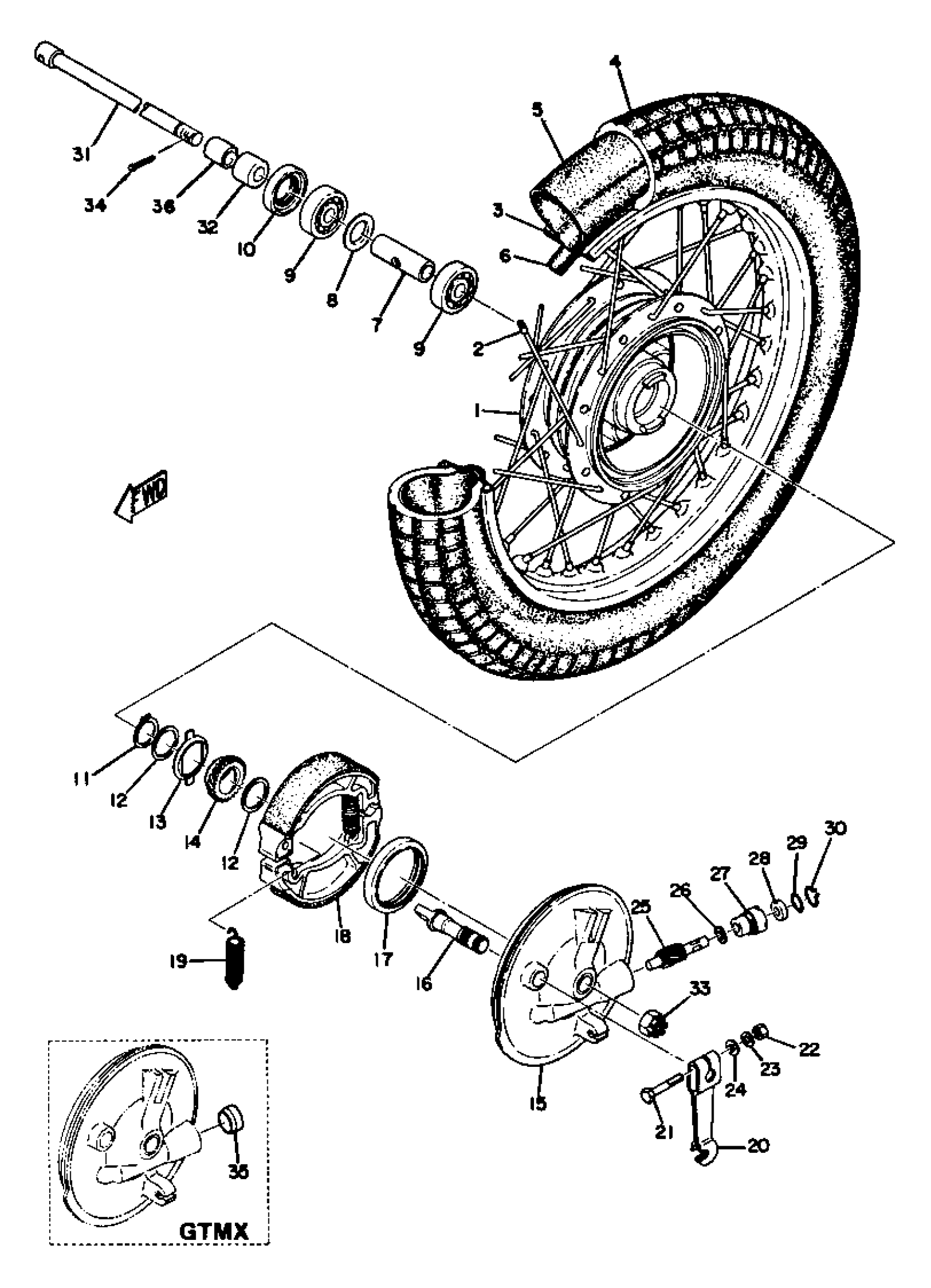

1973 Yamaha Gtmx (GTMX) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(367-25111-00-Y8)

1
Out of stock

2

SPOKE SET, FRONT

288-25104-01-00

1
Out of stock

3

RIM 1.40X15

94414-15058-00

1
Out of stock

4

250-15 IRC TRIALS

94125-15478-00

1
Out of stock

5

TUBE (1K8)

94225-15103-00

1

$26.06

In stock

6

BAND, RIM(3DM)

94313-15154-00

1

$5.69

In stock

6

UNAVAILABLE IN PRICE BOOK

94325-15005-00

1
Out of stock

7

SPACER, BEARING

90560-10303-00

1
Out of stock

8

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

9

BRG,R-B 6300 35MM 58G NT

93306-30003-00

1
Out of stock

10

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

11

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

12

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

13

CLUTCH, METER

183-25149-00-00

1
Out of stock

14

GEAR, DRIVE

(368-25135-00-00)

1
Out of stock

15

BRAKE SHOE PLT ASSEMBLY

393-25016-10-35

1
Out of stock

16

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

17

SEAL,OIL

93105-47007-00

—
Out of stock

18

BRAKE SHOE KIT

4KN-W253E-11-00

—

$22.40

In stock

19

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

20

LEVER, CAMSHAFT 1

109-25155-00-00

1
Out of stock

21

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

GEAR, METER

(368-25138-00-00)

1
Out of stock

26

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

27

BUSHING

109-25136-00-00

—

$8.78

In stock

28

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

29

O-RING (26H)

93210-14579-00

—

$5.69

In stock

30

RING, STOP

102-25137-00-00

—
Out of stock

31

AXLE, WHEEL

99999-02188-00

1
Out of stock

32

COLLAR

90387-10077-00

1
Out of stock

33

NUT 3532518200

90171-10004-00

—

$5.32

In stock

34

PIN, COTTER

91490-20025-00

—

$1.31

In stock

35

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

36

COLLAR

90387-10264-00

1
Out of stock
