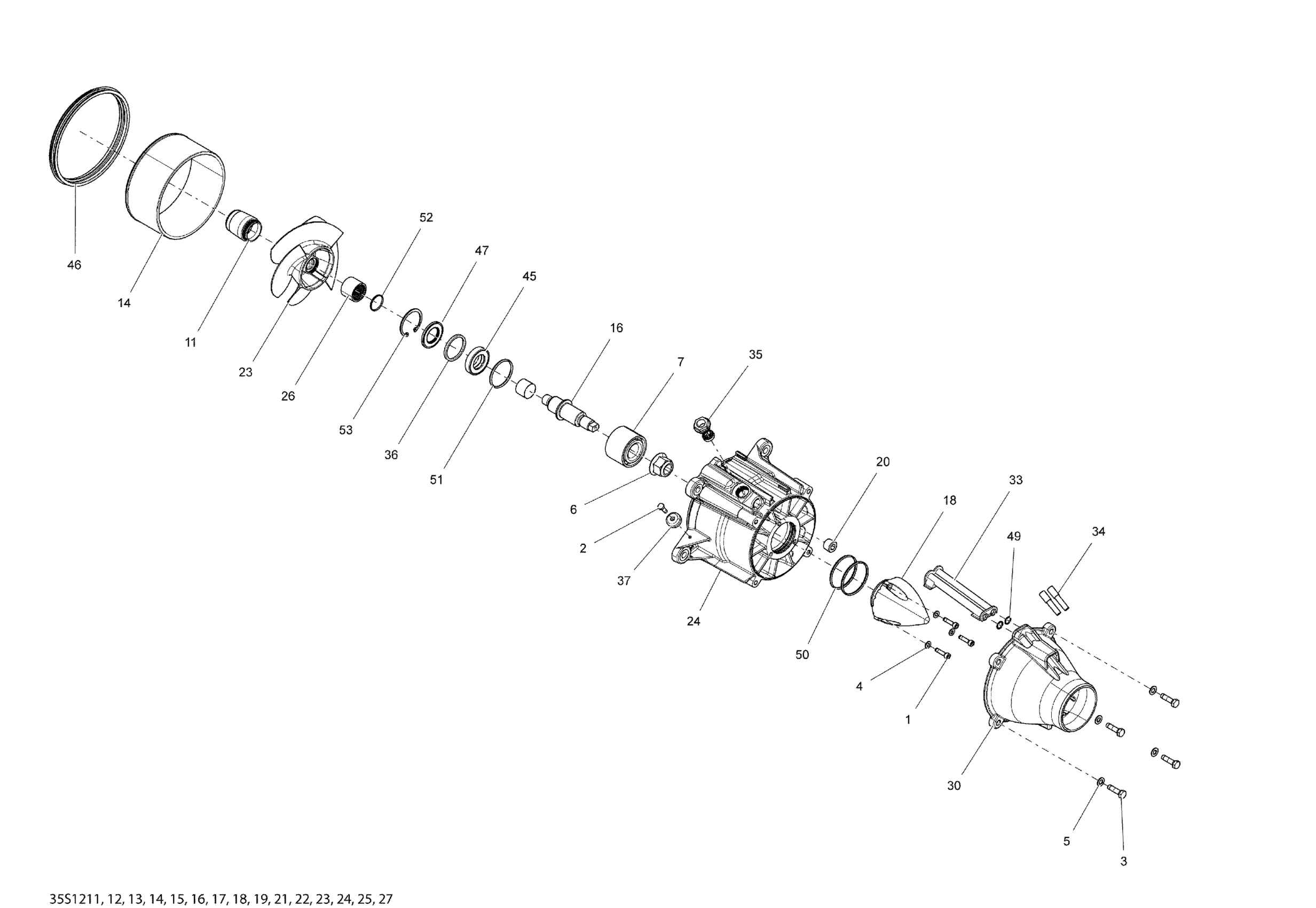

Sea-doo GTI SE 130, 2012 Pump Diagram

#

Description
Price

1

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

3

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

4

Stainless Flat Washer M6

234061600

$0.25

5

Stainless, Flat Washer 8 mm

234081600

$0.46

6

Elastic Flange Nut M20

250100104

$9.71

7

Angled Bearing This part replaces 267000030.

267000900

$66.27

11

Guard

271002225

$9.20

14

Wear Ring

267000419

$81.51

16

Impeller Shaft

267000388

$94.22

18

Impeller Cover

267000428

$14.27

20

Black, Plastic Plug

267000469

$5.99

23

Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.

267000940

$317.17

24

Impeller Housing

271002018

$227.47

26

Not Available As Spare Part - Friction Washer

Unavailable

30

Anodise Venturi

267000659

Unavailable

33

Water Outlet

271000785

$3.04

34

Siphon Tube

271001133

$7.05

35

Plug | Includes 370z to 370z1

267000282

$14.27

36

Spacer

271001393

$6.12

37

Anode Zinc

271001813

$13.62

45

Seal

271002071

$26.62

46

Neoprene Seal

293200087

$9.19

47

Oil Seal

293200089

$15.57

49

O-Ring

293300013

$5.69

50

O-Ring

293300086

$2.90

51

O-Ring

293300090

$5.97

52

O-Ring

293300114

$12.97

53

Circlip

293370038

$7.12
