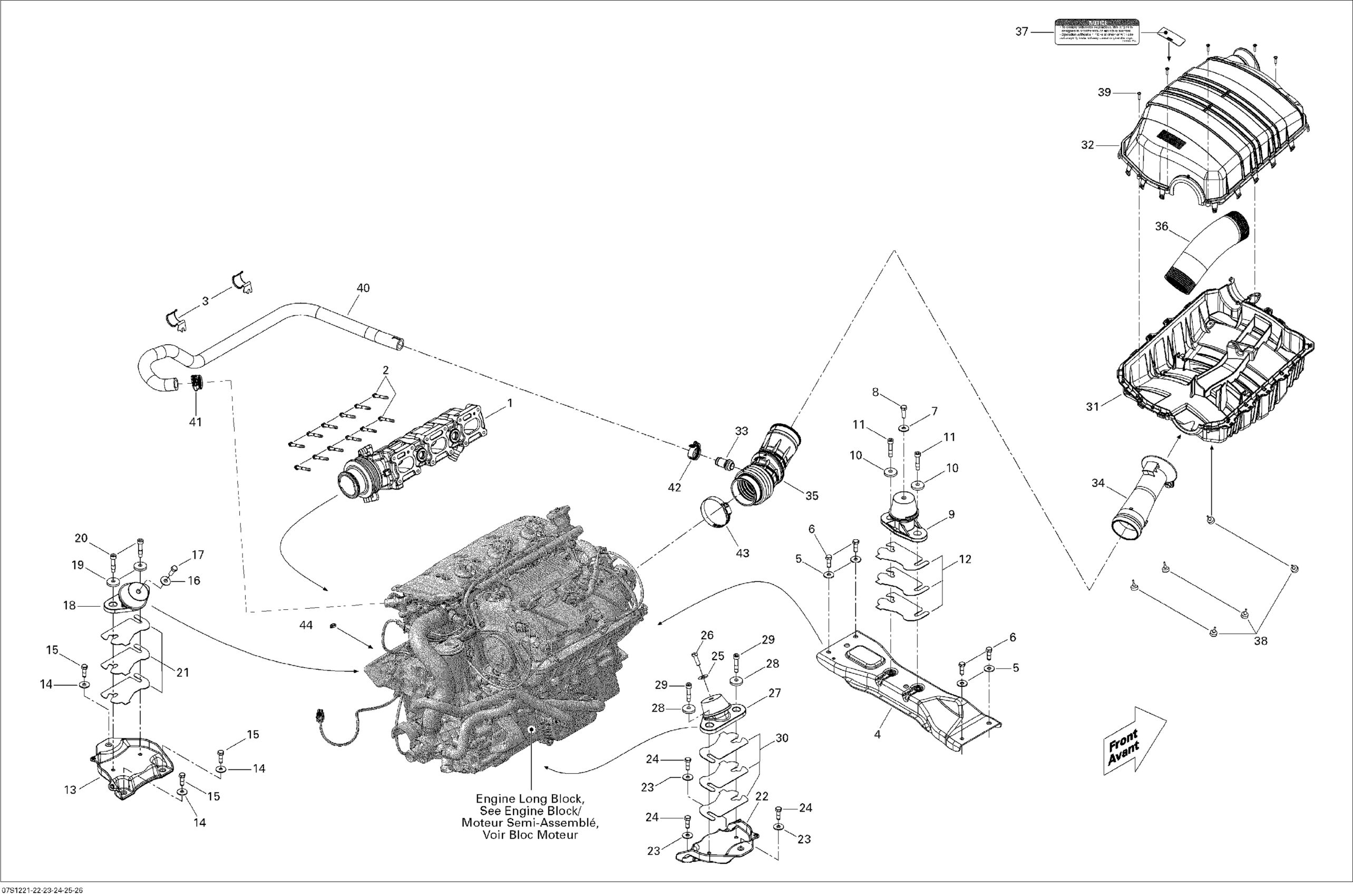

Sea-doo GTI SE 130, 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

2

Torx Flange Screw M6 X 45

420641198

$3.38

3

Retainer

275500664

$10.91

4

Front Spacer | Hull LFI

270000818

$117.88

5

Flat Washer 8 mm, Stainless

234082600

$1.98

6

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

9

Engine Support Ass'y

270001096

$77.32

10

Cone Washer

250200018

$4.64

11

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

12

Shim 1.3 mm

270000762

$9.04

13

REAR SPACER - Call your local BRP dealership | Hull LFI

270000815

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

$1.98

15

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

16

Flat Washer 8 mm, Stainless

234082600

$1.98

17

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

18

Engine Support Ass'y

270001081

$84.47

19

Cone Washer

250200018

$4.64

20

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

21

Shim 1.3 mm

270000762

$9.04

22

REAR SPACER - Call your local BRP dealership | Hull LFI

270000815

Unavailable

23

Flat Washer 8 mm, Stainless

234082600

$1.98

24

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

25

Flat Washer 8 mm, Stainless

234082600

$1.98

26

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

27

Engine Support Ass'y

270001081

$84.47

28

Cone Washer

250200018

$4.64

29

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

30

Shim 1.3 mm

270000762

$9.04

31

Airbox Base

273000354

$51.46

32

Airbox Cover

273000371

$65.64

33

Breather Valve

273000234

$10.63

34

INTAKE HOSE - Call your local BRP dealership

273000291

Unavailable

35

Hose Connector

273000292

$40.92

36

Air Silencer Hose

273000290

$20.12

37

Air Silencer Notice Decal

219903177

Unavailable

38

Rubber Stopper

708000759

$3.61

39

Flange Torx Screw K40 X 16

250000287

$1.74

40

Formed Hose

270000949

$37.02

41

Tridon Gear Clamp

293650051

$3.61

42

Tridon Gear Clamp

293650051

$3.61

43

Tridon Clamp

293650179

$8.81

44

Tie Wrap 142 mm

293750002

$0.88
