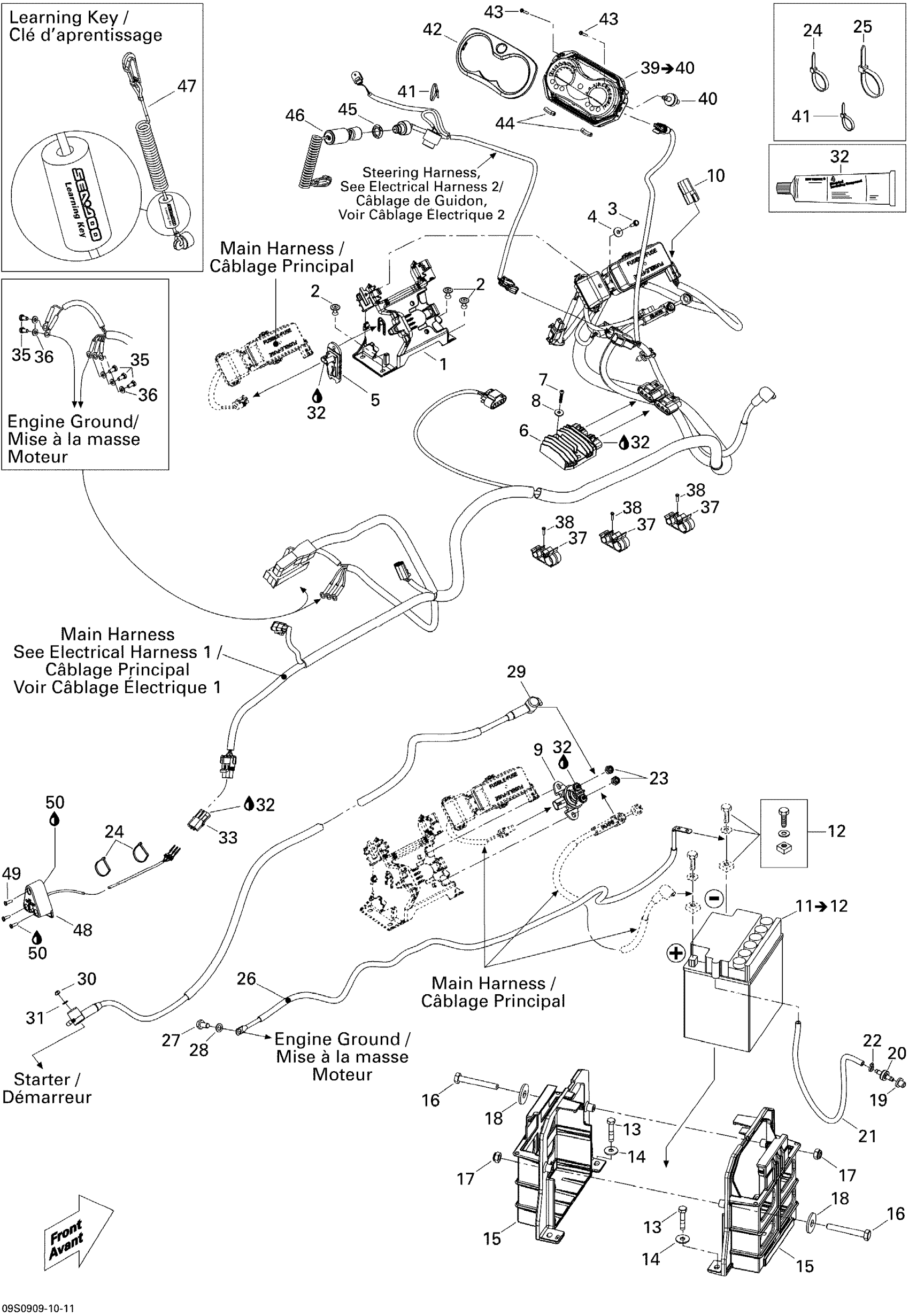

Sea-doo GTI SE 130, 2009 Electrical System Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

2

Pop Rivet 3/16"

293150123

Unavailable

3

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

4

Flat Washer M6, Stainless

234062600

Unavailable

5

Interrupter T.O.P.S.

278001992

Unavailable

6

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

7

TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership

250000236

Unavailable

8

Flat Washer M6, Stainless

234062600

Unavailable

9

Starter Relay

278003012

Unavailable

10

Diagnostic Connector

278002704

Unavailable

11

Battery, 30 Amperes

278001882

Unavailable

12

Battery Bolt Kit

250000282

$2.95

13

Hex. Screw M8 X 40, Scotch Grip

207284060

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

Unavailable

15

Battery Support

278003306

Unavailable

16

Hex. Screw M6 X 45

207164560

Unavailable

17

Elastic Stop Nut M6, Brass

232561200

Unavailable

18

Flat Washer M6, Stainless

234062600

Unavailable

19

Grommet

293720029

Unavailable

20

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

21

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

22

Tie Wrap 94 mm | 4X4

293750001

$0.83

23

Elastic Stop Nut M6, Brass

232561200

Unavailable

24

Tie-Rap 180 mm

414115200

$0.09

25

Tie Wrap 368 mm

293750008

$0.85

26

GROUND CABLE ASS'Y - Call your local BRP dealership

278002177

Unavailable

27

Hex. Screw M10 X 20, Scotch Grip

207302060

Unavailable

28

Flat Washer 10 mm, Stainless

234000600

Unavailable

29

STARTER CABLE - Call your local BRP dealership

278002267

Unavailable

30

Elastic Stop Nut M6, Brass

232561200

Unavailable

31

Stainless Flat Washer M6

234061600

$0.25

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

35

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

36

Stainless Flat Washer M6

234061600

$0.25

37

RETAINER - Call your local BRP dealership

275500553

Unavailable

38

Hex. Flange Screw K40 X 16

241141660

Unavailable

39

Digital Multifunction Gauge | Includes 39 to 40

278002273

Unavailable

40

Check Valve

275500398

Unavailable

41

Tie Wrap 142 mm

293750002

Unavailable

42

Gauge Bezel, Black

278002135

Unavailable

43

Hex. Flange Screw K40 X 25

241142560

Unavailable

44

TRIM - Call your local BRP dealership

293830113

Unavailable

45

Safety Nut (DESS Switch)

278002963

$2.72

46

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

47

SAFETY LANYARD, LEARNING KEY - Call your local BRP dealership

278002406

Unavailable

48

Speed Sensor

278001993

Unavailable

49

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

50

Silicone Sealant 51388, 300 ml

296000309

Unavailable
