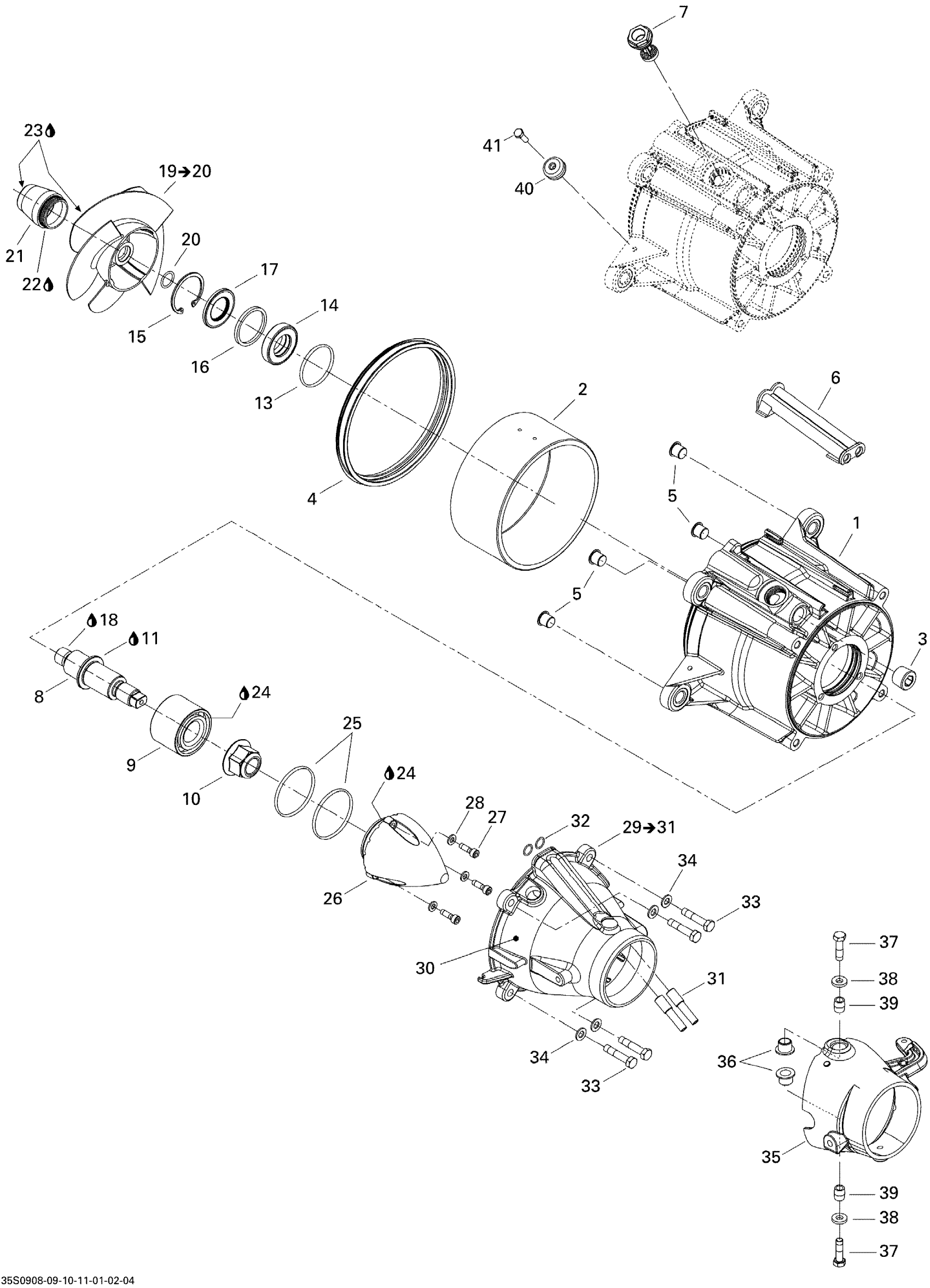

Sea-doo GTI SE 130, 2009 Pump Diagram
#
1
Housing Impeller Anodized This part replaces 267000417.
271002161
Unavailable
2
Wear Ring
267000419
Unavailable
3
Black, Plastic Plug
267000469
Unavailable
4
Neoprene Seal
293200087
Unavailable
5
Bushing
267000093
Unavailable
6
Water Outlet
271000785
Unavailable
7
Plug | Includes 370z to 370z1
267000282
Unavailable
8
Impeller Shaft
267000388
Unavailable
9
Angled Bearing This part replaces 267000030.
267000900
Unavailable
10
Elastic Flange Nut M20
250100104
Unavailable
11
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
13
O-Ring
293300090
Unavailable
14
Seal
271002071
Unavailable
15
Circlip
293370038
Unavailable
16
Spacer
271001393
Unavailable
17
Oil Seal
293200089
Unavailable
18
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
19
Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.
267000940
Unavailable
20
O-Ring
293300114
Unavailable
21
Guard
271002225
Unavailable
22
Était Was 293800050 Loctite 577, 250 ml
219704459
Unavailable
23
Synthetic Grease, 400 G
293550010
Unavailable
24
Jet Pump Bearing Grease, 110 G
293550032
Unavailable
25
O-Ring
293300086
Unavailable
26
Impeller Cover
267000428
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
VENTURI - Call your local BRP dealership | GTS PRO
267000289
Unavailable
31
Siphon Tube
271001133
Unavailable
33
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
34
Stainless, Flat Washer 8 mm
234081600
Unavailable
35
STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.
267000552
Unavailable
36
Venturi Bushing
293900001
Unavailable
37
Hex. Screw M8 X 30, Scotch Grip
207383060
Unavailable
38
Flat Washer M8.5 x 18
293050001
Unavailable
39
Sleeve
271001816
Unavailable
40
Anode Zinc
271001813
Unavailable
41
Hex. Screw M6 X 20, Scotch Grip
207362060
Unavailable
