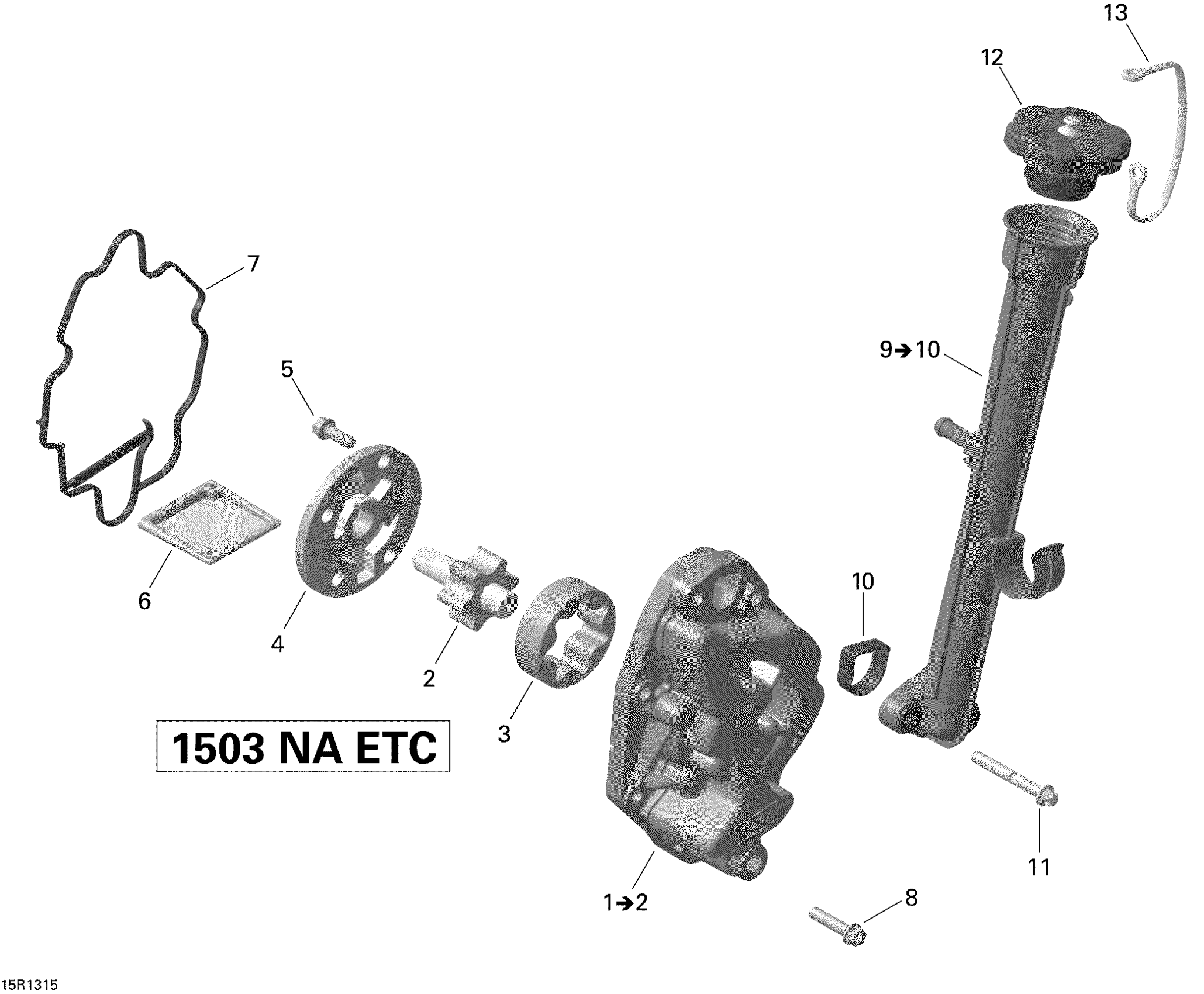

Sea-doo GTI LTD 155, 2013 Oil Separator Diagram

#

Description

Price

1

Oil Pump Housing

420812723

Unavailable

2

Oil Pump Shaft

420837543

Unavailable

3

Oil Pump Rotor 16 mm

420956675

Unavailable

4

Oil Pump Cover

420811851

Unavailable

5

Torx Flange Screw M6 X 16

420641048

Unavailable

6

Oil Sieve

420856520

Unavailable

7

Oil Suction Pump Gasket | Included in gasket kit

420631486

Unavailable

8

Torx Flange Screw M6 X 25

420641238

Unavailable

9

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420856511

Unavailable

10

Gasket

420430240

Unavailable

11

Torx Flange Screw M6 X 45

420641198

Unavailable

12

Plug Cover, Yellow

420956923

Unavailable

13

Retaining Band

420660620

Unavailable
