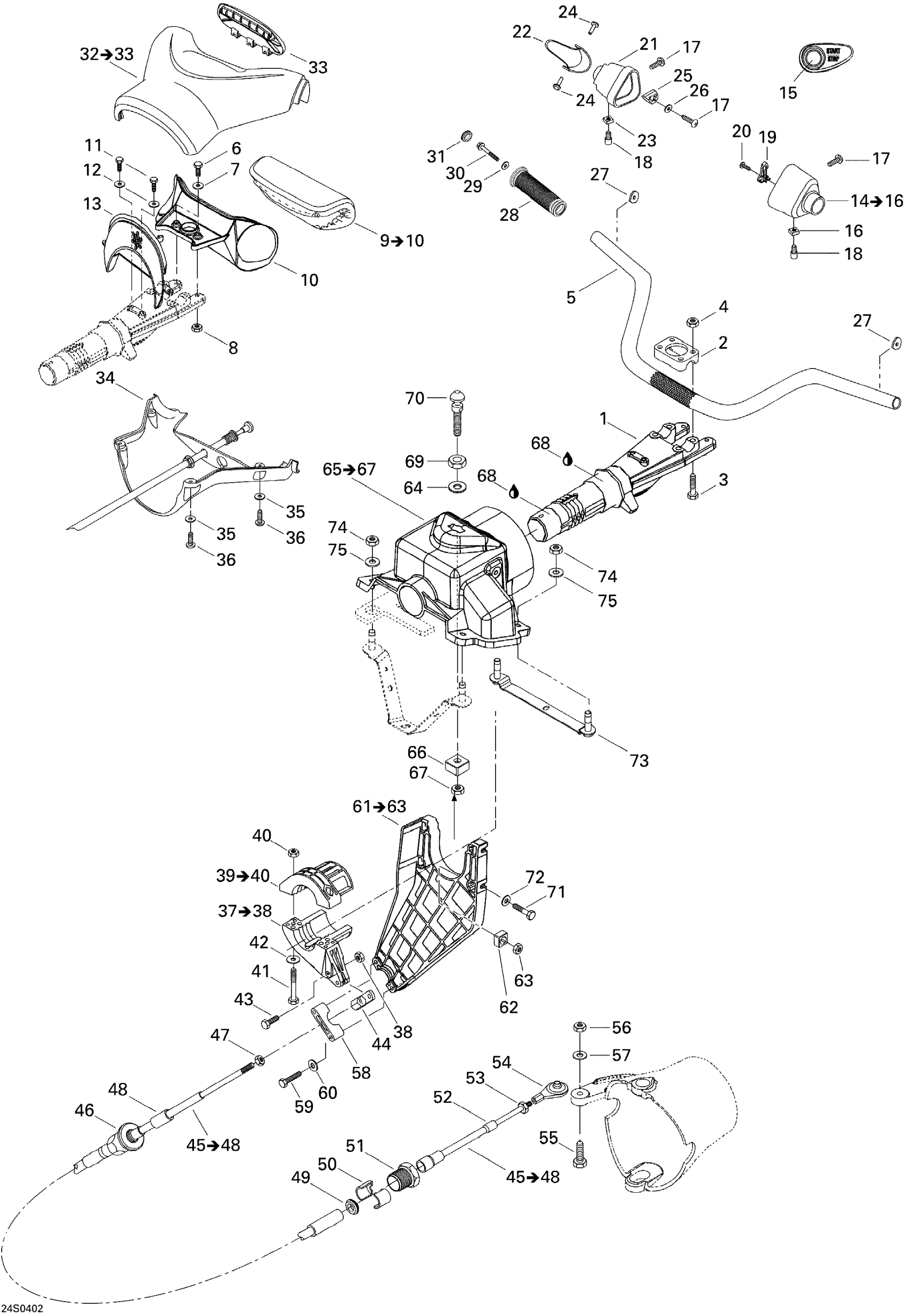

Sea-doo GTI LE, 2004 Steering System Diagram

#

Description
Price

1

Steering Stem

277000562400

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

Hex. Elastic Nut M8

232581600

Unavailable

5

Handlebar

277000824

Unavailable

6

Hex. Screw M6 X 30

207063060

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Handle Pad | Includes 9 to 10

277001093

Unavailable

Handle Pad, Blue Jay | Includes 9 to 10

277001239

Unavailable

10

Handle Bar Pad Support

277000687

Unavailable

11

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

12

Flat Washer M6, Stainless

234062600

Unavailable

13

PLATE - Call your local BRP dealership

277000549

Unavailable

14

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

15

Switch Knob

277000306

Unavailable

16

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

17

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

18

Socket Head Screw M6 X 16

250000036

Unavailable

19

Retainer Plate

277000845

Unavailable

20

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

21

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

22

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

23

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

24

PIN - Call your local BRP dealership

277000381

Unavailable

25

INSERT - Call your local BRP dealership

293450153

Unavailable

26

Flat Washer M5, Stainless

234051600

Unavailable

27

Insert Grip Handle

277001863

Unavailable

28

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

29

Flat Washer M6, Stainless

234062600

Unavailable

30

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

31

Black, Cap

277000203

Unavailable

32

Upper Steering Cover | Includes 32 to 33

277000833

Unavailable

33

Steering Plate | STD

277000823

Unavailable

34

LOWER STEERING COVER - Call your local BRP dealership

277000625

Unavailable

35

Flat Washer M5, Stainless

234051600

Unavailable

36

Hex. Flange Screw K40 X 16

241141660

Unavailable

37

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

Unavailable

39

Arm Thrust | Includes 43 to 44

277000519

Unavailable

40

Hex. Elastic Stop Nut M6

232561600

Unavailable

41

Hex. Screw M6 X 25

207162560

Unavailable

42

Flat Washer M6, Stainless

234062600

Unavailable

43

Hex. Screw M6 X 30

211000081

Unavailable

44

Ball Joint

277001180

Unavailable

45

Steering Cable | Includes 38 to 42

277001580

Unavailable

46

Ajustment Knob

277000782

Unavailable

47

Hex. Nut 1/4"-28

211100056

Unavailable

48

Terminal Wiper

277000441

Unavailable

49

Rubber Washer

293830063

Unavailable

50

Half Ring

277001527

Unavailable

51

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

52

Terminal Wiper

277000441

Unavailable

53

Hex. Nut 1/4"-28

211100056

Unavailable

54

Ball Joint

277000775

Unavailable

55

Hex. Screw M6 X 35

207063560

Unavailable

56

Hex. Elastic Stop Nut M6

232561600

Unavailable

57

Stainless Flat Washer M6

234061600

Unavailable

58

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

59

Hex. Screw M6 X 50

207065060

Unavailable

60

Stainless Flat Washer M6

234061600

Unavailable

61

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

62

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

63

Hex. Elastic Stop Nut M6

232561600

Unavailable

64

Flat Washer 10 mm, Stainless

234002600

Unavailable

65

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

66

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

67

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

68

Synthetic Grease, 400 G

293550010

Unavailable

69

Hex. Jam Nut M10

232100600

Unavailable

70

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

71

Hex. Forming Screw M6 X 20

207162060

Unavailable

72

Stainless Flat Washer M6

234061600

Unavailable

73

Steering Support

277001000

Unavailable

74

Hex. Elastic Nut M8

232581600

Unavailable

75

Stainless, Flat Washer 8 mm

234081600

Unavailable
