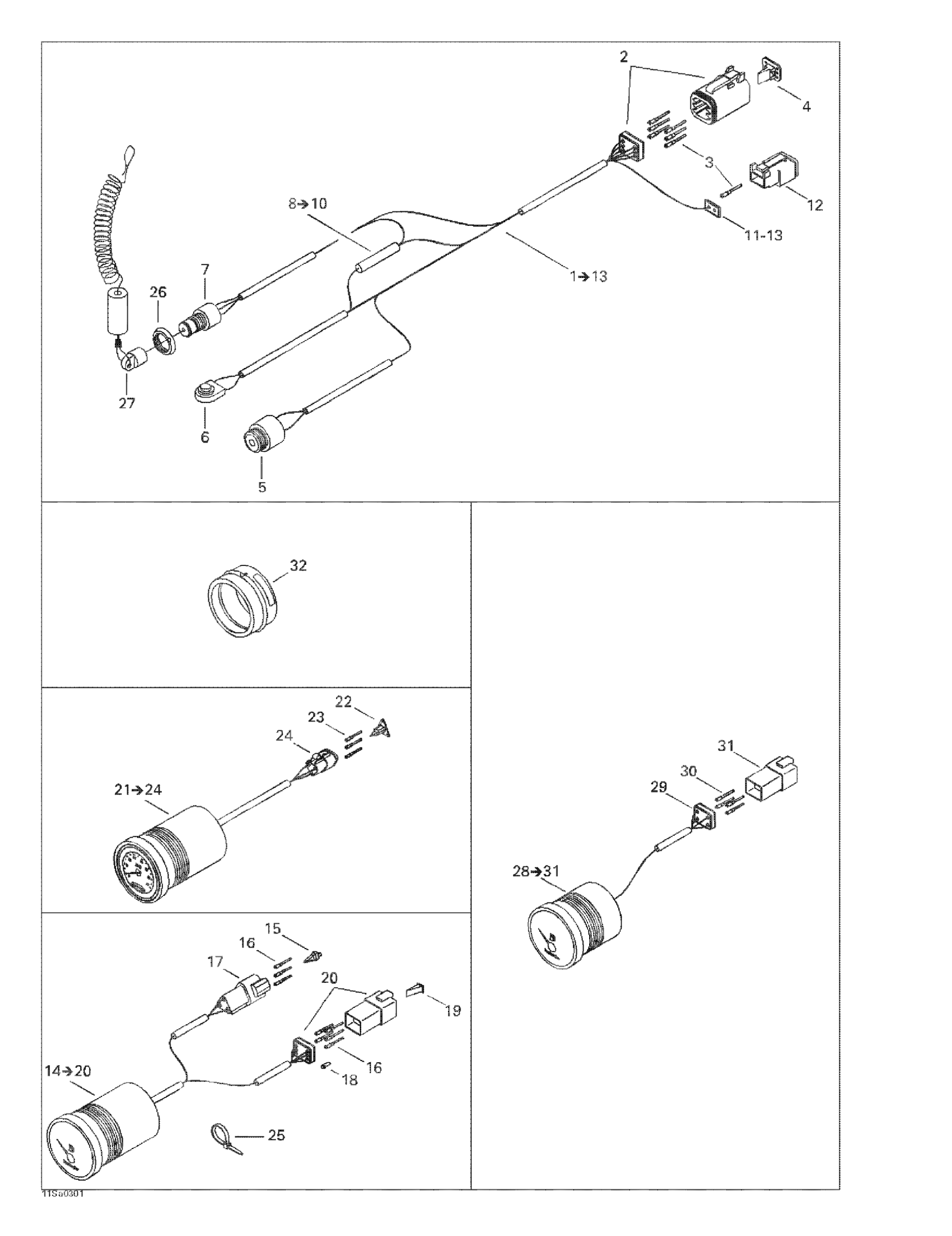

Sea-doo GTI LE, 2003 Electrical Accessories Diagram

#

Description
Price

1

Steering Harness | Includes 23 to 35

278001791

Unavailable

2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

3

Female Terminal

278000632

$1.94

4

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

5

BUZZER - Call your local BRP dealership

278001586

Unavailable

6

SWITCH - Call your local BRP dealership

278001587

Unavailable

7

SAFETY SWITCH - Call your local BRP dealership

278001790

Unavailable

8

Male Terminal

278000230

$4.00

9

Insulated Sheath

278001008

$3.10

10

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

11

Sealing Cap

293000052

$2.93

12

Female Connector, 2 Circuits

409207300

$9.31

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

14

Oil/Fuel Gauge | Includes 14 - 20. GTI LE.

278001621

Unavailable

15

Male Lock, 3 Circuits

409207600

$2.93

16

Male Terminal | GTI RFI LE

278001664

Unavailable

17

Male Housing

278002378

$12.52

18

Sealing Cap

293000052

$2.93

19

Female Lock, 6 Circuits

278000735

$2.93

20

Male Terminal Housing, 6 Circuits

710001539

$17.88

21

Speedometer | Includes 21 - 24. GTI LE.

278001620

Unavailable

22

Female Lock

409207200

$4.00

23

Female Terminal

278001665

$4.28

24

Female Connector, 2 Circuits

409207300

$9.31

25

Tie-Rap 180 mm

414115200

$0.10

26

Safety Nut (DESS Switch)

278002963

$3.12

27

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

28

Oil/Fuel Gauge | Includes 59 to 62 / STD

278001622

Unavailable

29

Female Wedge, 4 Circuits

278000636

$4.00

30

Male Terminal | GTI RFI LE

278001664

Unavailable

31

Female Housing, 4 Circuits

278000635

$13.60

32

Gauge Support

293720047

Unavailable
