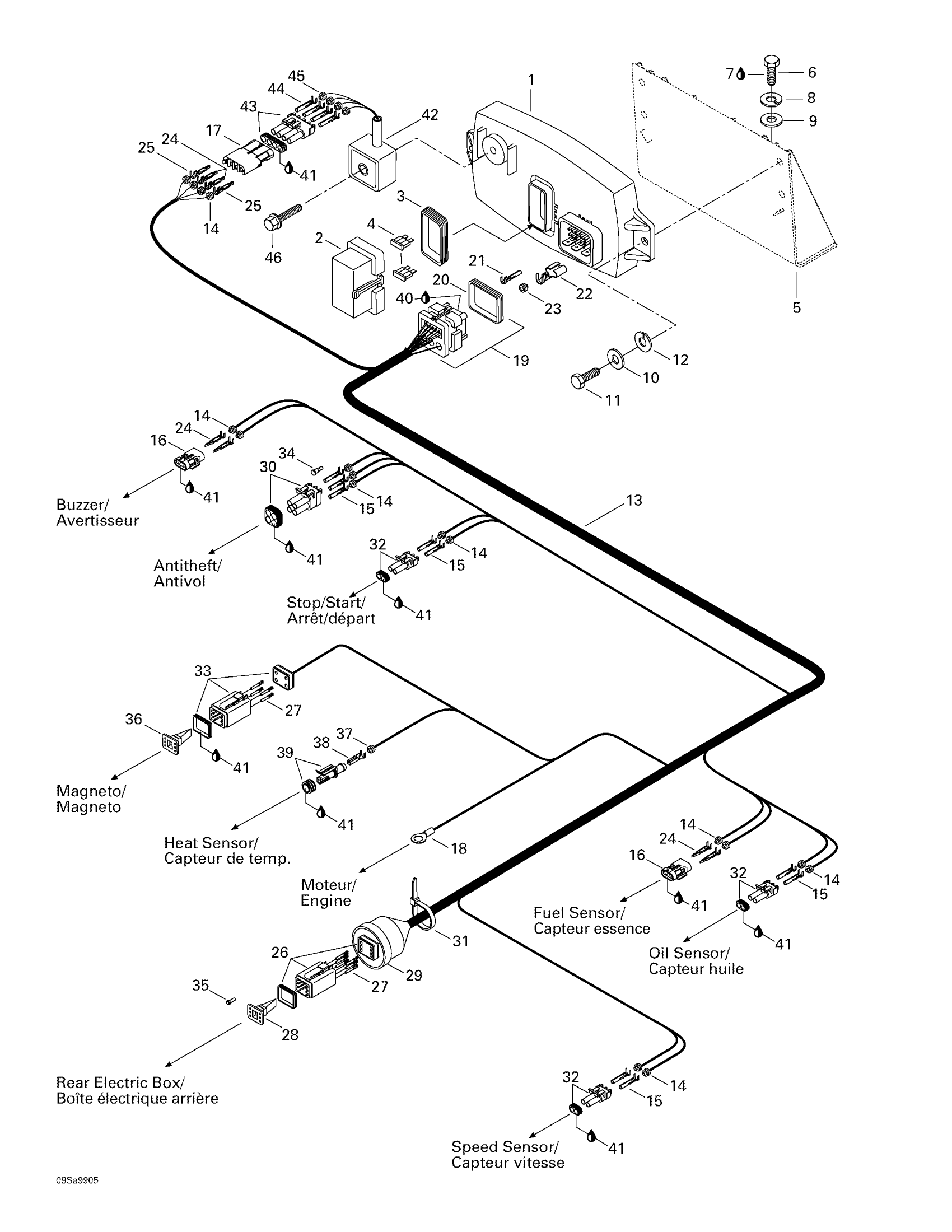

Sea-doo GTI, 5884/5885, 1999 Electrical System Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 1 - 4.

278001496

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$2.72

Fuse, 5 Amperes | CE

278000344

$3.12

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Hex. Plastite Screw M4, 8 X 20

243042060

Unavailable

7

Loctite 271, 10 ml

293800005

$20.77

8

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

9

Flat Washer 5 mm, Stainless

234052600

$0.64

10

Flat Washer M6, Stainless

234062600

$0.64

11

Hex. Screw M6 X 16

207161660

$1.22

12

Lock Washer Helical M6

234161601

$0.92

13

Main Harness Ass'y | Includes 13 - 39.

278001086

Unavailable

14

Wire Seal

278000218

$3.48

15

Female Terminal

278000223

$2.55

16

Female Housing, 2 Circuits

278000217

$7.59

17

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

18

Open Barrel

278001165

Unavailable

19

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

20

Wire Seal

278000307

Unavailable

21

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

23

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

24

Male Terminal | XT Models

278000222

$2.55

25

Male Terminal

409004300

$5.30

26

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

27

Female Terminal

278000632

$1.69

28

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

29

Switch Boot

570150700

Unavailable

30

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

31

Tie Wrap 142 mm

293750002

$0.88

32

Male Connector, 2 Circuits

278000220

$11.02

33

Male Connector, 4 Circuits | CE

278000739

$14.92

34

Wire Seal

278000216

$2.55

35

Sealing Cap

293000052

$2.55

36

Male Lock, 4 Circuits | CE

278000738

$2.82

37

Wire Seal

278001013

$2.72

38

Female Terminal

278001014

$2.72

39

Male Housing, 1 Circuit

278001012

$12.65

40

Grease, Super Lube

293550030

$24.67

41

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

42

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

43

Male Housing, 4 Circuits

278000395

$14.57

44

Female Terminal

409007300

$0.36

45

Wire Seal

278000218

$3.48

46

Hex. Tapping Screw

211000139

Unavailable
