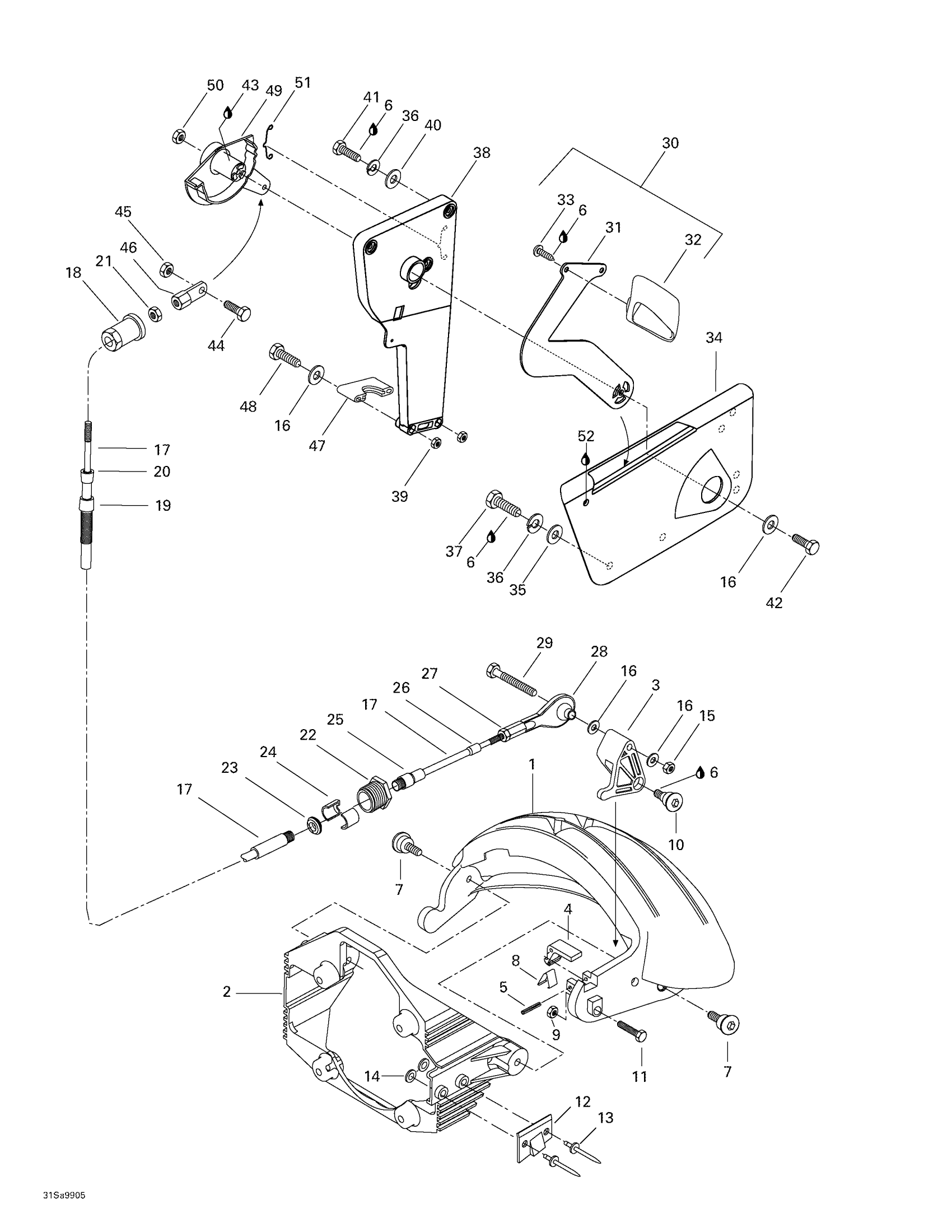

Sea-doo GTI, 5884/5885, 1999 Reverse Diagram

#

Description
Price

1

REVERSE GATE - Call your local BRP dealership

271000947

Unavailable

2

GATE SUPPORT - Call your local BRP dealership

271000846

Unavailable

3

CABLE LEVER - Call your local BRP dealership

271000583

Unavailable

4

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

5

Pin

211400009

$1.31

6

Loctite 243, 10 ml

293800060

$20.77

7

Screw

211000007

Unavailable

8

Spring

271000431

$12.13

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

Unavailable

11

Hex. Forming Screw M6 X 20

207162060

$1.03

12

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

13

Pop Rivet 3/16"

293150043

$1.61

14

Flat Washer | XT

211200035

$0.46

15

Hex. Elastic Stop Nut M6

232561600

$0.92

16

Stainless Flat Washer M6

234061600

$0.25

17

Reverse Cable Ass'y | Includes 17 - 21.

277000725

Unavailable

18

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

19

Boot, Large

277000473

Unavailable

20

Boot, Small

277000466

Unavailable

21

Hex. Nut

212100005

$0.90

22

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

23

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

24

Half Ring

277000055

$6.19

25

Boot, Large

277000473

Unavailable

26

Boot, Small

277000466

Unavailable

27

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

28

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

29

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

30

Handle Reverse Ass'y | Includes 29 - 32.

271000586

Unavailable

31

Lever

271000613

Unavailable

32

Reverse Handle

271000614

Unavailable

33

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

34

Housing Reverse Handle

271000587

Unavailable

35

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

36

Helical Lock Washer M5

234151601

$0.91

37

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

38

Reverse Cable Support | Includes 38 - 39.

271000584

Unavailable

39

Hex. Elastic Stop Nut M6

232561600

$0.92

40

Flat Washer 5 mm, Stainless

234052600

$0.64

41

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

42

Hex. Screw M6 X 16

207161660

$1.22

43

Synthetic Grease, 400 G

293550010

Unavailable

44

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

45

Hex. Elastic Stop Nut M6

232561600

$0.92

46

Joint

277000646

Unavailable

47

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

48

Hex. Screw M6 X 50

207065060

$1.85

49

LEVER INTERIOR - Call your local BRP dealership | Includes 48 - 49.

271000585

Unavailable

50

Hex. Elastic Stop Nut M6

232561600

$0.92

51

SPRING - Call your local BRP dealership

271000612

Unavailable

52

Silicone Sealant 51388, 300 ml

296000309

$35.72
