Description

Price

1

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

2

Safety Nut (DESS Switch)

278002963

$2.72

3

Gauge Support

293720047

Unavailable

4

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

5

Wire Seal

278000218

$3.48

6

Male Terminal | XT Models

278000222

$2.55

7

Female Housing, 2 Circuits

278000217

$7.59

8

Grommet

293720008

$10.91

9

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

10

Buzzer Ass'y | Includes 10 - 13.

278001565

Unavailable

11

Female Terminal

278000223

$2.55

12

Wire Seal

278000218

$3.48

13

Male Connector, 2 Circuits

278000220

$11.02

14

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001358

Unavailable

15

Male Terminal | XT Models

278000222

$2.55

16

Wire Seal

278000218

$3.48

17

Female Housing, 2 Circuits

278000217

$7.59

18

Oil/Fuel Level Gauge | Includes 18 - 22.

278001350

Unavailable

19

Male Terminal | XT Models

278000222

$2.55

20

Female Housing, 2 Circuits

278000217

$7.59

21

Wire Seal

278001065

$6.03

22

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

23

Safety Switch | Includes 15 - 19.

278000977

Unavailable

24

Male Terminal | XT Models

278000222

$2.55

25

Wire Seal

278000218

$3.48

26

Wire Seal

278000216

$2.55

27

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

28

Speedometer Ass'y | Includes 28 - 32.

278001333

Unavailable

29

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

30

Wire Seal

278001065

$6.03

31

Female Terminal

278000223

$2.55

32

Male Connector, 2 Circuits

278000220

$11.02

33

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

36

Paddle Wheel Kit

295500108

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Female Housing, 2 Circuits

278000217

$7.59

40

Phillips Screw M5 x 12

250000319

$1.03

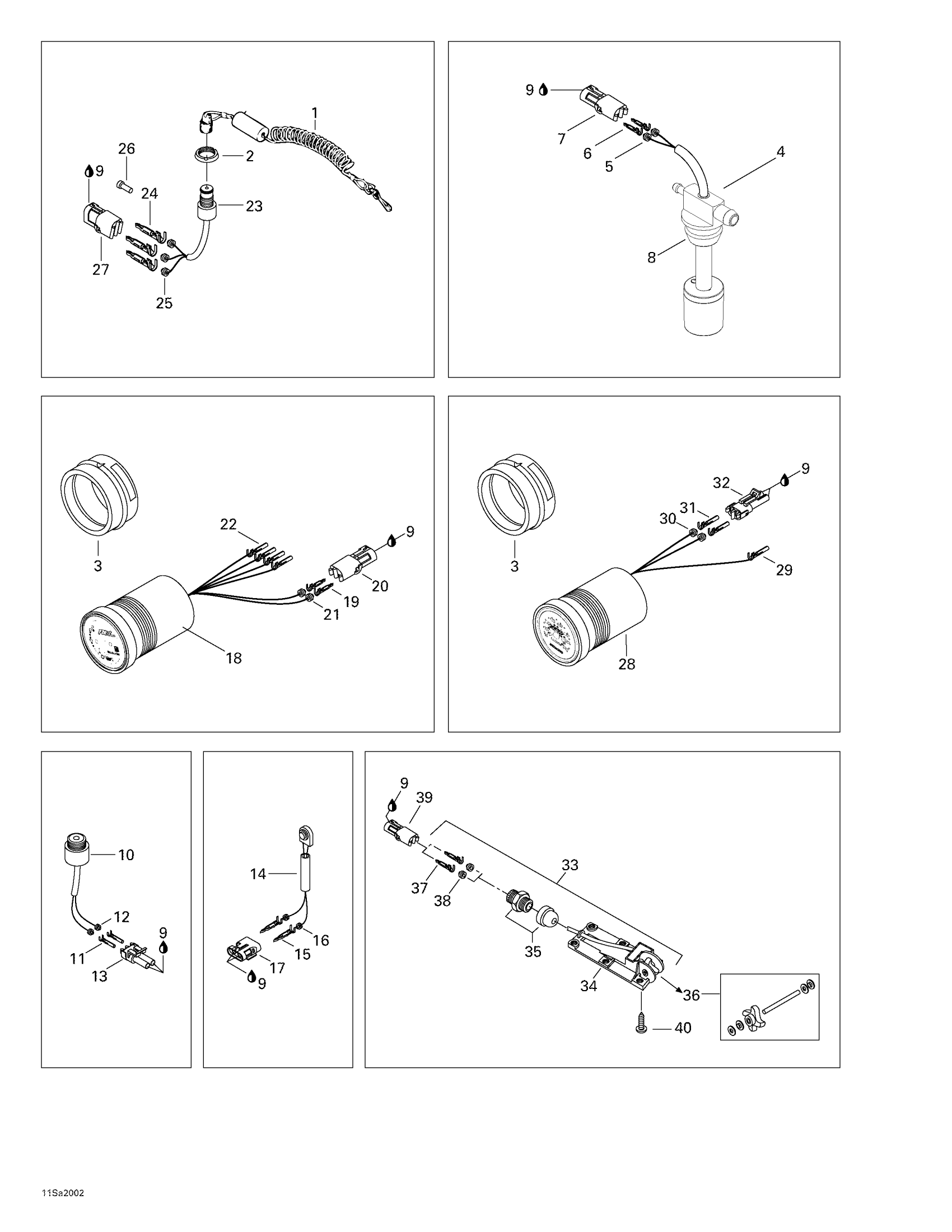

Sea-doo GTI, 5647/5657, 2000 Electrical Accessories Diagram

Safety Lanyard, Antitheft This part replaces 278001543.

Safety Nut (DESS Switch)

Gauge Support

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

Wire Seal

Male Terminal | XT Models

Female Housing, 2 Circuits

Grommet

Was 293550004 Dielectric Grease, 150 g

Buzzer Ass'y | Includes 10 - 13.

Female Terminal

Wire Seal

Male Connector, 2 Circuits

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

Male Terminal | XT Models

Wire Seal

Female Housing, 2 Circuits

Oil/Fuel Level Gauge | Includes 18 - 22.

Male Terminal | XT Models

Female Housing, 2 Circuits

Wire Seal

FEMALE TERMINAL - Call your local BRP dealership

Safety Switch | Includes 15 - 19.

Male Terminal | XT Models

Wire Seal

Wire Seal

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

Speedometer Ass'y | Includes 28 - 32.

FEMALE TERMINAL - Call your local BRP dealership

Wire Seal

Female Terminal

Male Connector, 2 Circuits

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

Not Available As Spare Part - Friction Washer

ELECTRIC CONNECTION - Call your local BRP dealership

Paddle Wheel Kit

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Female Housing, 2 Circuits

Phillips Screw M5 x 12
