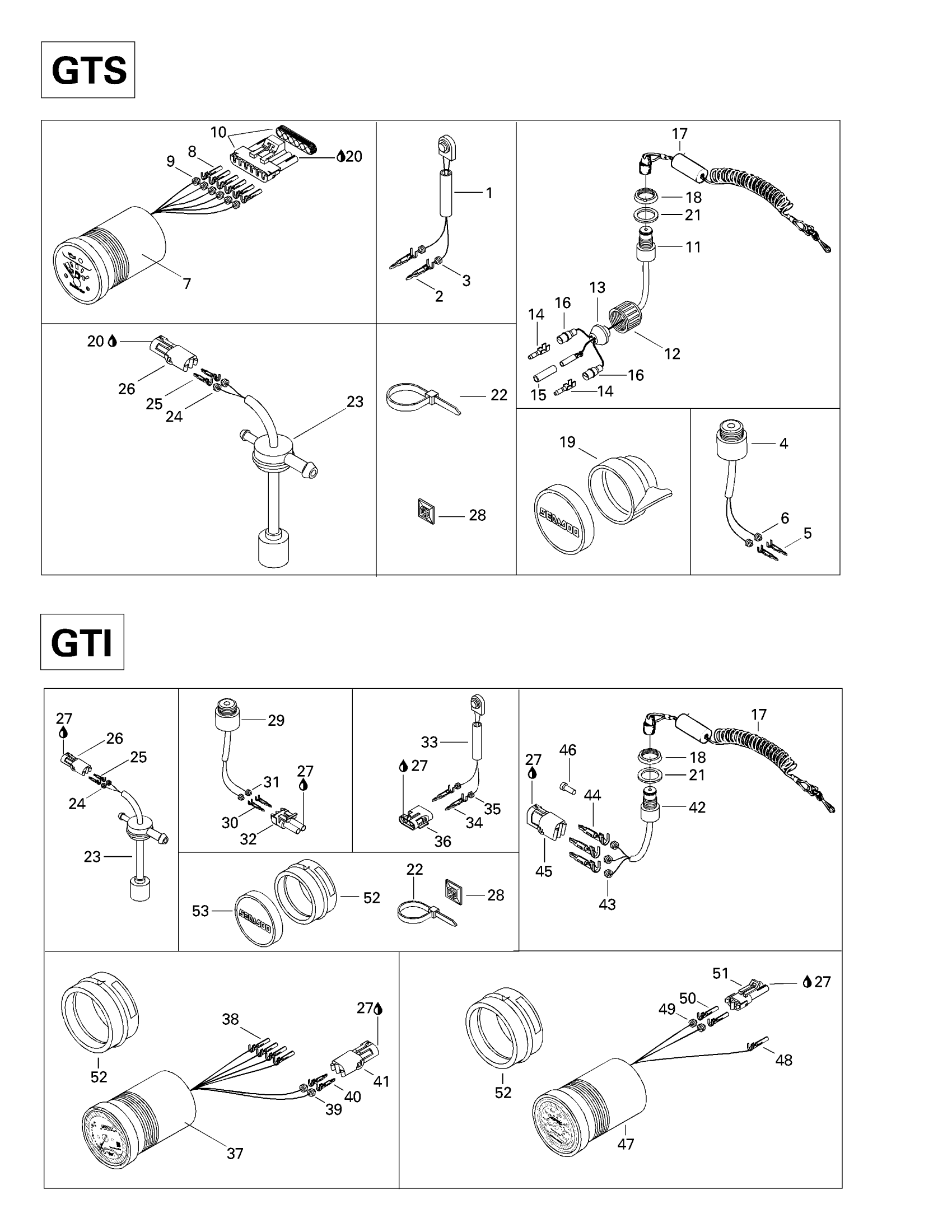

Sea-doo GTI, 5641, 1997 Electrical Accessories Diagram

#

Description
Price

1

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

2

Male Terminal | XT Models

278000222

$2.93

3

Wire Seal

278000218

$4.00

4

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

5

Male Terminal | XT Models

278000222

$2.93

6

Wire Seal

278000218

$4.00

7

Oil / Fuel Level Gauge | Includes 35 - 38.

278000496

Unavailable

8

Female Terminal

278000223

$2.93

9

Wire Seal

278000218

$4.00

10

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

11

SAFETY SWITCH - Call your local BRP dealership | Includes 11 - 16.

278000638

Unavailable

12

Electric Wire Cap

278000100

Unavailable

13

GROMMET, 3 CIRCUIT, BLACK - Call your local BRP dealership

278000193

Unavailable

14

Male Terminal

278000230

$4.00

15

Insulated Sheath

278001007

$3.12

16

Insulated Sheath

278001008

$3.10

17

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

18

Safety Nut (DESS Switch)

278002963

$3.12

19

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

21

WASHER - Call your local BRP dealership

211200027

Unavailable

22

Tie-Rap 180 mm

414115200

$0.10

23

Oil Level Sensor

278000478

Unavailable

24

Wire Seal

278000218

$4.00

25

Male Terminal | XT Models

278000222

$2.93

26

Female Housing, 2 Circuits

278000217

$8.72

27

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

28

Tie-rap Mount

293750010

Unavailable

29

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

30

Female Terminal

278000223

$2.93

31

Wire Seal

278000218

$4.00

32

Male Connector, 2 Circuits

278000220

$12.66

33

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001115

Unavailable

34

Male Terminal | XT Models

278000222

$2.93

35

Wire Seal

278000218

$4.00

36

Female Housing, 2 Circuits

278000217

$8.72

37

Oil / Fuel Level Gauge | Includes 18 - 22.

278001035

Unavailable

38

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

39

Wire Seal

278001065

$5.85

40

Male Terminal | XT Models

278000222

$2.93

41

Female Housing, 2 Circuits

278000217

$8.72

42

Safety Switch | Includes 15 - 19.

278000977

Unavailable

43

Wire Seal

278000218

$4.00

44

Male Terminal | XT Models

278000222

$2.93

45

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

46

Wire Seal

278000216

$2.93

47

Speedometer Ass'y | Includes 28 - 32.

278001071

Unavailable

48

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

49

Wire Seal

278001065

$5.85

50

Female Terminal

278000223

$2.93

51

Male Connector, 2 Circuits

278000220

$12.66

52

Gauge Support

293720047

Unavailable

53

Gauge Cap | STD

293000068

Unavailable
