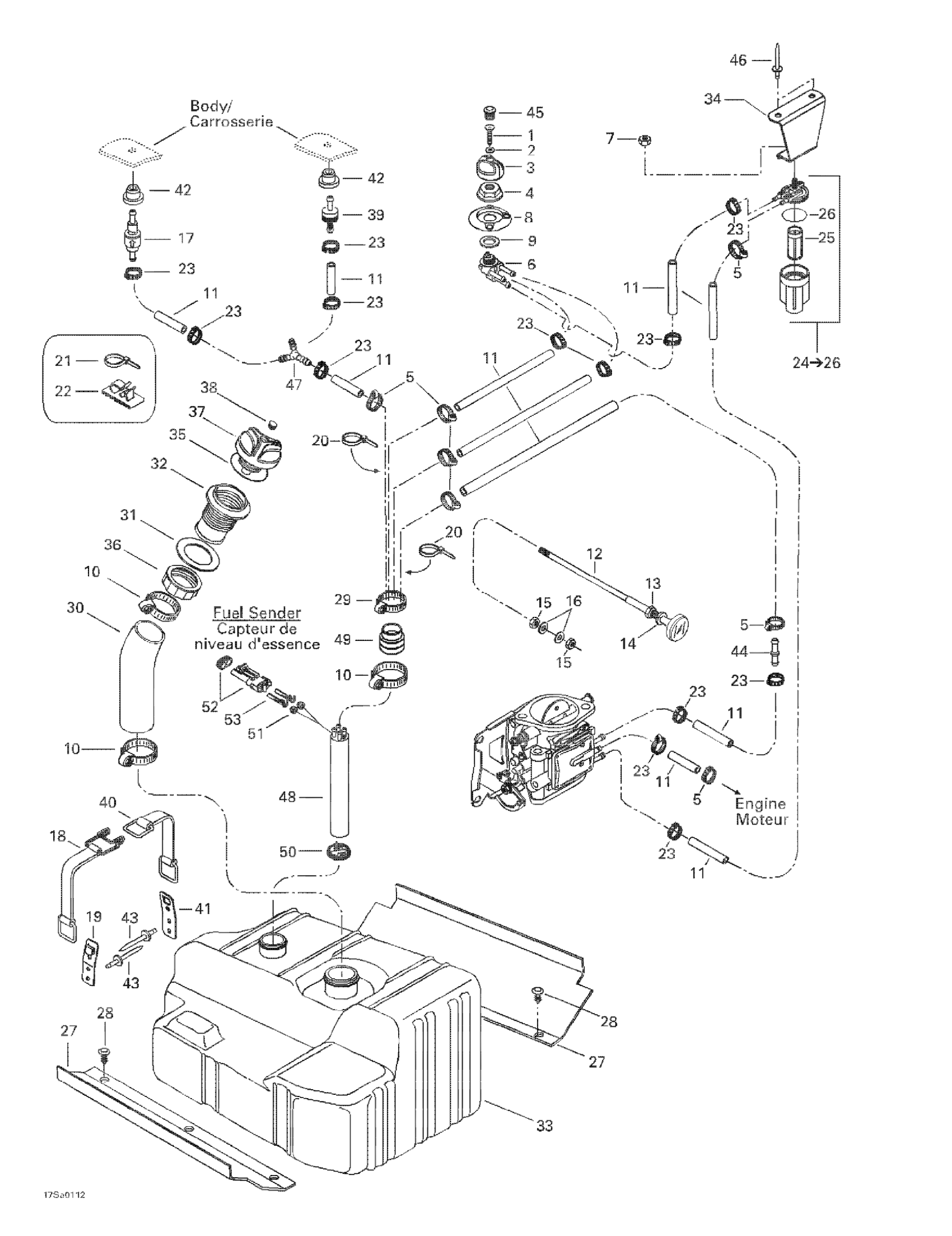

Sea-doo GTI, 5552, 2001 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.52

3

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Tridon Gear Clamp

293650170

$2.00

6

Fuel Valve

275500098

$39.52

7

Hex. Elastic Stop Nut M6

232561600

$1.06

8

FUEL VALVE PLATE - Call your local BRP dealership

275500264

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Tridon Clamp

293650023

$11.37

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

CHOKE CABLE - Call your local BRP dealership | Includes 12 - 16.

270000728

Unavailable

13

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Hex. Nut M6

232160600

$1.04

16

Stainless Flat Washer M6

234061600

$0.28

17

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

18

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

19

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

20

Tie-Rap 180 mm

414115200

$0.10

21

Tie Wrap 368 mm

293750008

$0.97

22

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

23

Oetiker Clamp

293650042

$1.61

24

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$39.52

25

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

26

O-Ring

275500090

$7.85

27

Rubber Pad

293830077

Unavailable

28

Black, Dart

293730006

$0.93

29

Tridon Clamp

293650035

$6.66

30

Filler Hose Neck

275500301

Unavailable

31

Gasket

293250029

$13.85

32

Filler Neck, Fuel

275500231

$12.40

33

Fuel Tank

275500291

Unavailable

34

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$11.51

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$26.09

38

Black, Snap Cap

293000034

$8.58

39

Check Valve

275500398

$9.84

40

Fuel Tank Strap

293850036

$15.64

41

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

42

Grommet

293720029

$1.30

43

Avdel Rivet 3/16"

293150037

$0.54

44

Straight Fitting

293710039

$6.75

45

Black, Cap

275500241

$3.16

46

Pop Rivet 3/16"

293150043

$1.85

47

Y-Fitting

293710059

$9.40

48

BAFFLE PICK UP - Call your local BRP dealership | Includes 20 - 22.

275500473

Unavailable

49

Tube Adapter

275500111

Unavailable

50

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

51

Wire Seal

278000218

$4.00

52

Male Connector, 2 Circuits

278000220

$12.66

53

Female Terminal

278000223

$2.93
