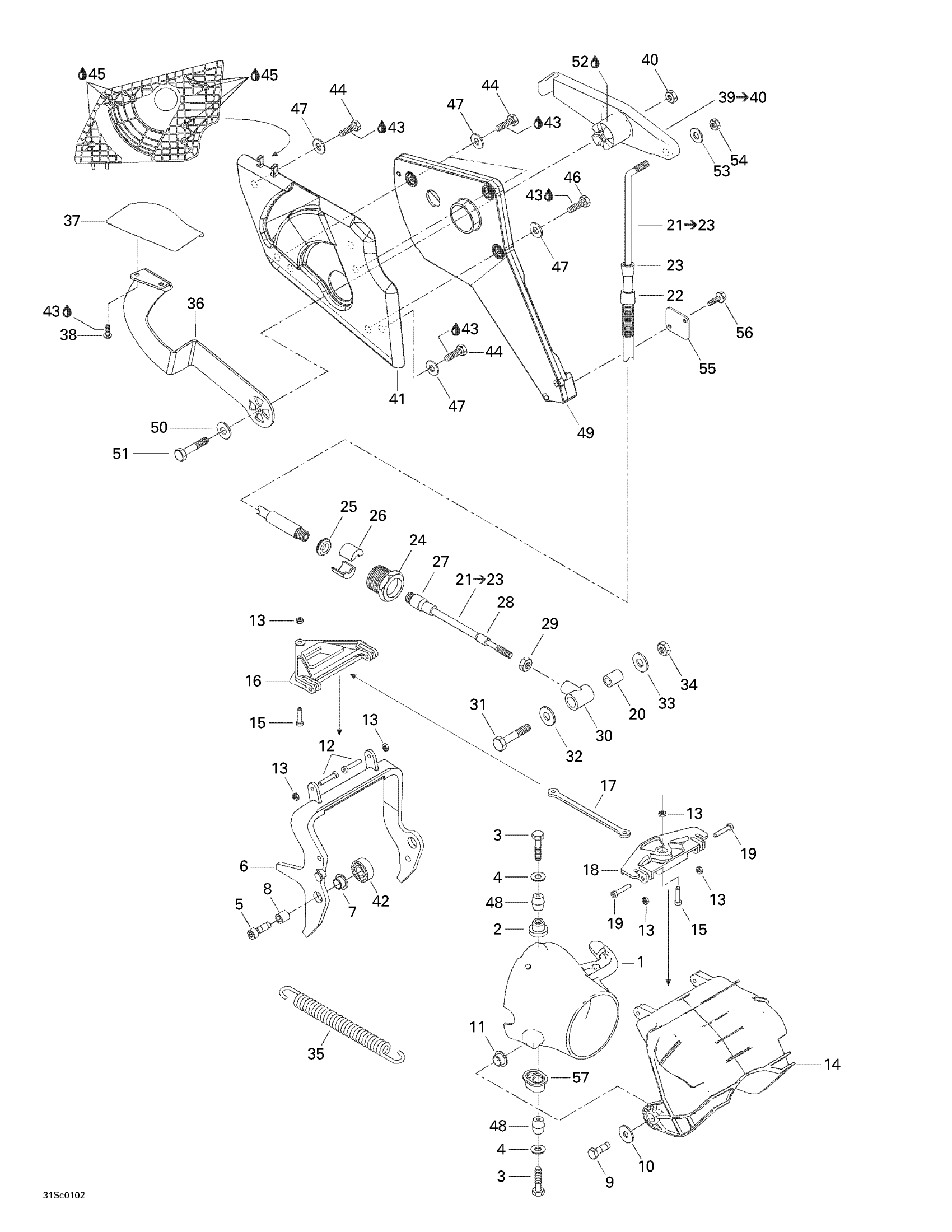

Sea-doo GTI, 5522/5523, 2001 Reverse Diagram

#

Description
Price

1

Steering Nozzle Ass'y (Black)

271001197

Unavailable

2

Venturi Bushing

293900001

$7.04

3

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

4

Flat Washer M8.5 x 18

293050001

$1.48

5

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

6

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

7

Venturi Bushing

271000321

$7.09

8

Spacer

271001039

$13.52

9

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

10

Flat Washer 8 mm, Stainless

234082600

$2.27

11

Spacer

277000856

Unavailable

12

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

13

Hex. Elastic Nut M5 | X

232551600

$1.04

14

Reverse Gate

268000028

$167.13

15

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

16

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

17

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

18

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

19

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

20

Spacer

271001020

$10.60

21

Reverse Cable

268000017

$141.76

22

Boot, Large

277000473

Unavailable

23

Boot, Small

277000466

Unavailable

24

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

25

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

26

Half Ring

277000055

$7.10

27

Boot, Large

277000473

Unavailable

28

Boot, Small

277000466

Unavailable

29

Hex. Nut

212100005

$1.03

30

Joint

277001204

$16.39

31

Hex. Screw M6 X 35

207063560

$2.12

32

Flat Washer M6, Stainless

234062600

$0.73

33

Stainless Flat Washer M6

234061600

$0.28

34

Hex. Elastic Stop Nut M6

232561600

$1.06

35

Spring

271001328

$14.43

36

HANDLE LEVER - Call your local BRP dealership | RXP

271000982

Unavailable

37

REVERSE HANDLE - Call your local BRP dealership

271000983

Unavailable

38

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

39

Lever Ass.

271000986

$38.03

40

Hex. Elastic Stop Nut M6

232561600

$1.06

41

Handle Housing

271000984

Unavailable

42

BUSHING - Call your local BRP dealership | GTS PRO

293900038

Unavailable

43

Loctite 243, 10 ml

293800060

$21.49

44

Hex. Cap Screw M6 X 12

207161260

$1.21

45

Silicone Sealant 51388, 300 ml

296000309

$36.99

46

Hex. Screw M6 X 16

207161660

$1.40

47

Flat Washer M6, Stainless

234062600

$0.73

48

Sleeve

271001816

$13.30

49

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

50

Stainless Flat Washer M6

234061600

$0.28

51

Hex. Screw M6 X 16

207161660

$1.40

52

Synthetic Grease, 400 G

293550010

Unavailable

53

Flat Washer M5, Stainless

234051600

$0.73

54

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

55

BRACKET - Call your local BRP dealership

277001058

Unavailable

56

Hex. Flange Screw K40 X 16

241141660

$1.43

57

Plastic Bushing

293900010

$8.21
