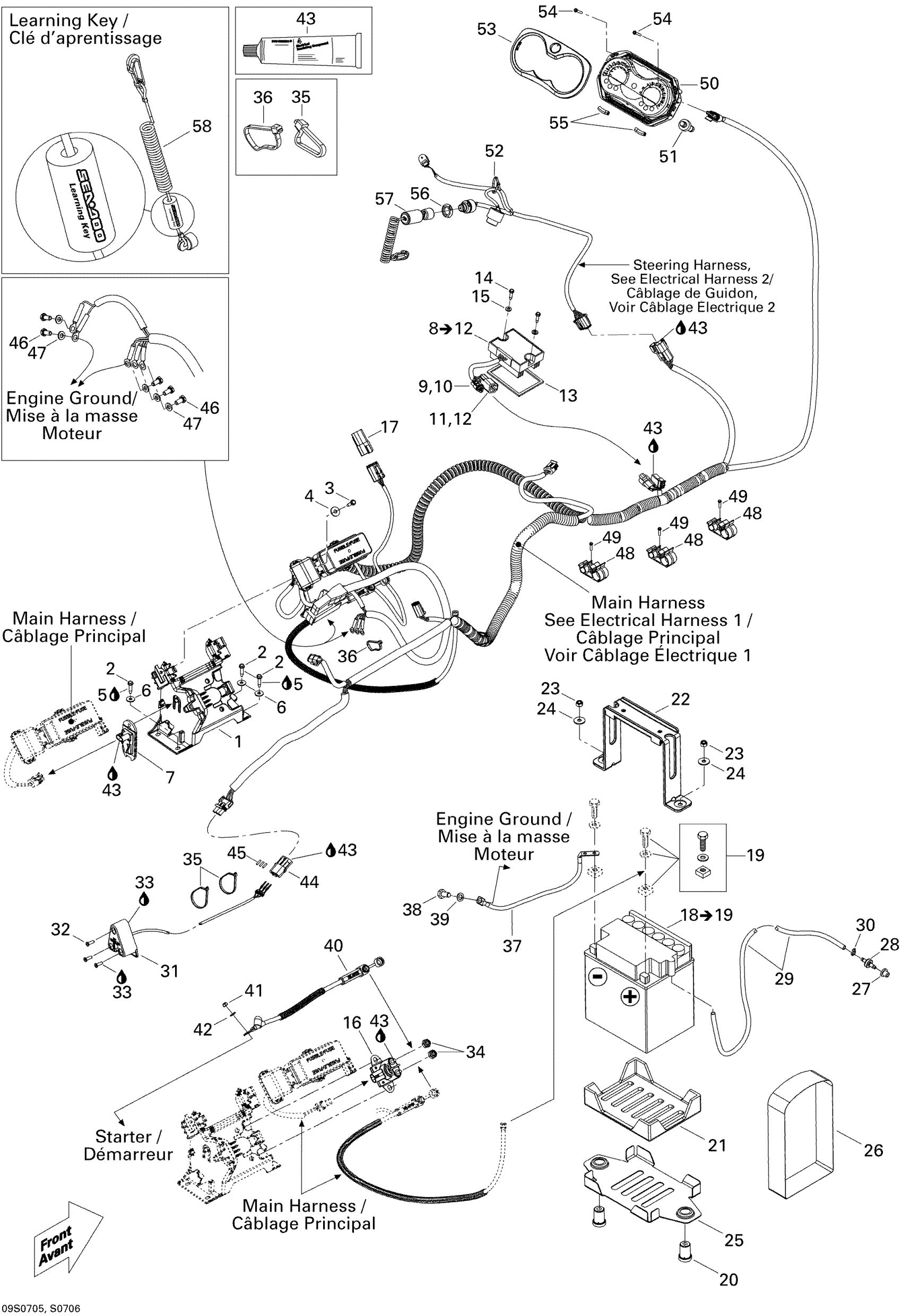

Sea-doo GTI 4-TEC SE, 2007 Electrical System GTI SE Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

$19.20

2

Hex. Screw 10-14 X 7/8”

211000023

$2.91

3

Hex. Screw 10-14 X 7/8”

211000023

$2.91

4

Flat Washer M6, Stainless

234062600

$0.64

5

Loctite 271, 10 ml

293800005

$20.77

6

Flat Washer M6, Stainless

234062600

$0.64

7

Interrupter T.O.P.S.

278001992

$66.27

8

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

9

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

10

Female Terminal

278000632

$1.69

11

Male Housing, 2 Circuits

409206900

$8.98

12

Female Terminal

515175567

$6.03

13

SEAL - Call your local BRP dealership

293250123

$4.72

14

Hex. Screw 10-14 X 7/8”

211000023

$2.91

15

Stainless Flat Washer M6

234061600

$0.25

16

Starter Relay

278003012

$35.07

17

Diagnostic Connector

278002704

$15.57

18

Battery, 30 Amperes

278001882

$152.72

19

Battery Bolt Kit

250000282

$2.95

20

BUSHING - Call your local BRP dealership

278001939

Unavailable

21

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

22

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

23

Hex. Elastic Nut M8 Brass

232581200

$1.29

24

Flat Washer 8 mm, Stainless

234082600

$1.98

25

BATTERY SUPPORT - Call your local BRP dealership

278001966

$20.57

26

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

$11.69

27

Grommet

293720029

$1.13

28

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

29

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

30

Tie Wrap 94 mm | 4X4

293750001

$0.83

31

Speed Sensor

278001993

$143.62

32

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$35.72

34

Elastic Stop Nut M6, Brass

232561200

$3.51

35

Tie-Rap 180 mm

414115200

$0.09

36

Tie Wrap 368 mm

293750008

$0.85

37

GROUND CABLE ASS'Y - Call your local BRP dealership

278002177

$33.05

38

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

39

Flat Washer 10 mm, Stainless

234000600

$1.07

40

STARTER CABLE - Call your local BRP dealership

278002267

Unavailable

41

Elastic Stop Nut M6, Brass

232561200

$3.51

42

Stainless Flat Washer M6

234061600

$0.25

43

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

44

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

45

Wire Seal

278000216

$2.55

46

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

47

Stainless Flat Washer M6

234061600

$0.25

48

RETAINER - Call your local BRP dealership

275500553

Unavailable

49

Hex. Flange Screw K40 X 16

241141660

$1.25

50

Digital Multifunction Gauge | Includes 50 to 51

278002217

$978.22

51

Check Valve

275500398

$8.57

52

Tie Wrap 142 mm

293750002

$0.88

53

Gauge Bezel, Black

278002135

$22.07

54

Hex. Flange Screw K40 X 25

241142560

$2.17

55

TRIM - Call your local BRP dealership

293830113

Unavailable

56

Safety Nut (DESS Switch)

278002963

$2.72

57

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

58

Safety Lanyard, Learning Key

278002203

Unavailable
