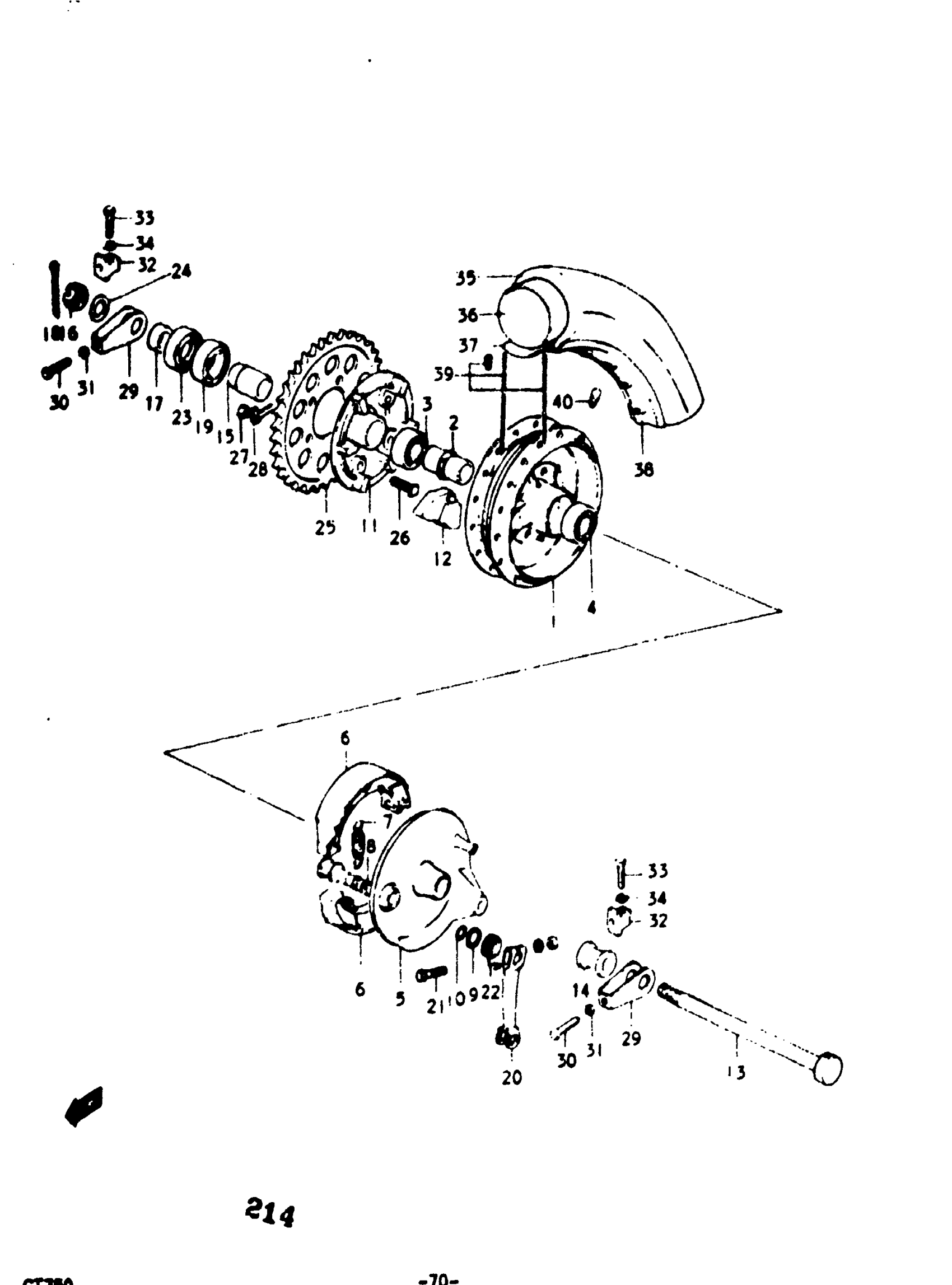

Find the part on the Rear Wheel diagram for your 1977 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT750 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB SET, WHEEL | K,L,M,A,B; Includes Item(s) 2 - 4

64100-31830

1
Out of stock

2

SPACER | K,L,M,A,B

64730-31000

1
Out of stock

5

PANEL | K; TO 64210-31002

64210-31000

—
Out of stock

5

PANEL | L,M,A,B

64210-31002

1
Out of stock

6

SHOE SET, BRAKE | K,L,M,A,B This part replaces 64410-31000.

64400-31830

2
Out of stock

7

SPRING | K,L,M,A,B

55420-30000

2
Out of stock

8

CAM, REAR BRAKE | K; TO 54440-11003

54440-11002

—
Out of stock

8

CAM, BRAKE | L,M,A,B This part replaces 54440-11003.

64440-38A00

1
Out of stock

11

DRUM, SPROCKET | K,L,M,A,B This part replaces 64611-31000.

64611-31003

1
Out of stock

13

AXLE, REAR | K,L,M,A,B

64711-31000

1
Out of stock

14

SPACER | K,L,M,A,B

09180-20041

1
Out of stock

15

SPACER,RR HUB B | K,L,M,A,B This part replaces 64733-31000.

64733-3100V

1
Out of stock

16

NUT | K,L,M,A,B; FROM 08314-31187 This part replaces 08314-31188.

08314-3118A

1
Out of stock

17

SPACER | K,L,M,A,B; 20x33x10.5

09180-20040

1
Out of stock

20

LEVER, BRAKE CAM | K,L,M,A,B

64451-31002

1
Out of stock

21

1

$2.10

In stock

22

SPRING | K,L,M,A,B This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

23

OIL SEAL | K,L,M,A,B

09285-33001

1
Out of stock

24

WASHER | K,L,M,A,B; 19x34x4

09160-19008

1
Out of stock

25

SPROCKET, REAR | K,L,B; NT:43 OPT STDM,A; NT:43 OPT STD

64511-31700

1
Out of stock

25

SPROCKET, REAR | K,L,M,A,B; NT:45 OPT STD

64511-31000

1
Out of stock

25

SPROCKET, REAR | K,L; NT:47 OPT STDM,A,B; NT:47 OPT STD

64511-31731

1
Out of stock

25

NO DESCRIPTION AVAILABLE | K,L,M,A,B; NT:49 OPT STD This part replaces 64511-31740.

64511-31741

1
Out of stock

25

SPROCKET, REAR | K,L,M,A,B; NT:51 OPT STD

64511-31750

1
Out of stock

25

SPROCKET, REAR | A,B; NT:40 F.NO.67347~

64511-31770

1
Out of stock

26

BOLT | K,L,M,A,B This part replaces 09119-10002.

09105-10001

6
Out of stock

27

NUT | K,L,M,A; TO 08312-31108

09140-10018

—
Out of stock

27

6

$2.35

In stock

28

WASHER | K,L,M,A,B

09169-10007

3
Out of stock

29

ADJUSTER, CHAIN | K,L,M,A,B This part replaces 61410-31000.

61410-31001

2
Out of stock

30

BOLT (8X50) | K,L,M,A,B; 8x50 This part replaces 09104-08006.

09104-08034

2
Out of stock

31

2

$1.93

In stock

32

SUPPORTER,CHAIN | K,L,M,A,B This part replaces 61433-31000.

61433-3100V

2
Out of stock

33

BOLT | K,L,M,A,B This part replaces 01122-08408.

01500-0840A

2
Out of stock

34

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

2
Out of stock

35

TIRE | K,L; 4.00-18 TO 65100-31013

65100-31012

—
Out of stock

35

TIRE | M,A,B; 4.00-18 FROM 65100-31013

65100-31600

—
Out of stock

36

TUBE, INNER | K,L,M,A,B; 4.00-18 This part replaces 65200-15011.

65200-49015

1
Out of stock

38

RIM | K,L; 2.158-18

65311-15020

1
Out of stock

38

RIM | M,A,B; 2.158-18

65311-15021

1
Out of stock

39

SPOKE SET, REAR | K,L

65300-31812

1
Out of stock

39

SPOKE SET, RR W | M,A,B; FROM 65300-37810 This part replaces 65300-37811.

65300-45811

1
Out of stock

40

BALANCER WHEEL (30G) | (0 ~ 3)FROM 55412-37000 30G This part replaces 55412-11000.

55413-41F00

1
Out of stock

40

BALANCER WHEEL (15G) | ( 0 ~ 3 )FROM 55411-37000 20G This part replaces 55411-11000.

55411-26G00

1
Out of stock
