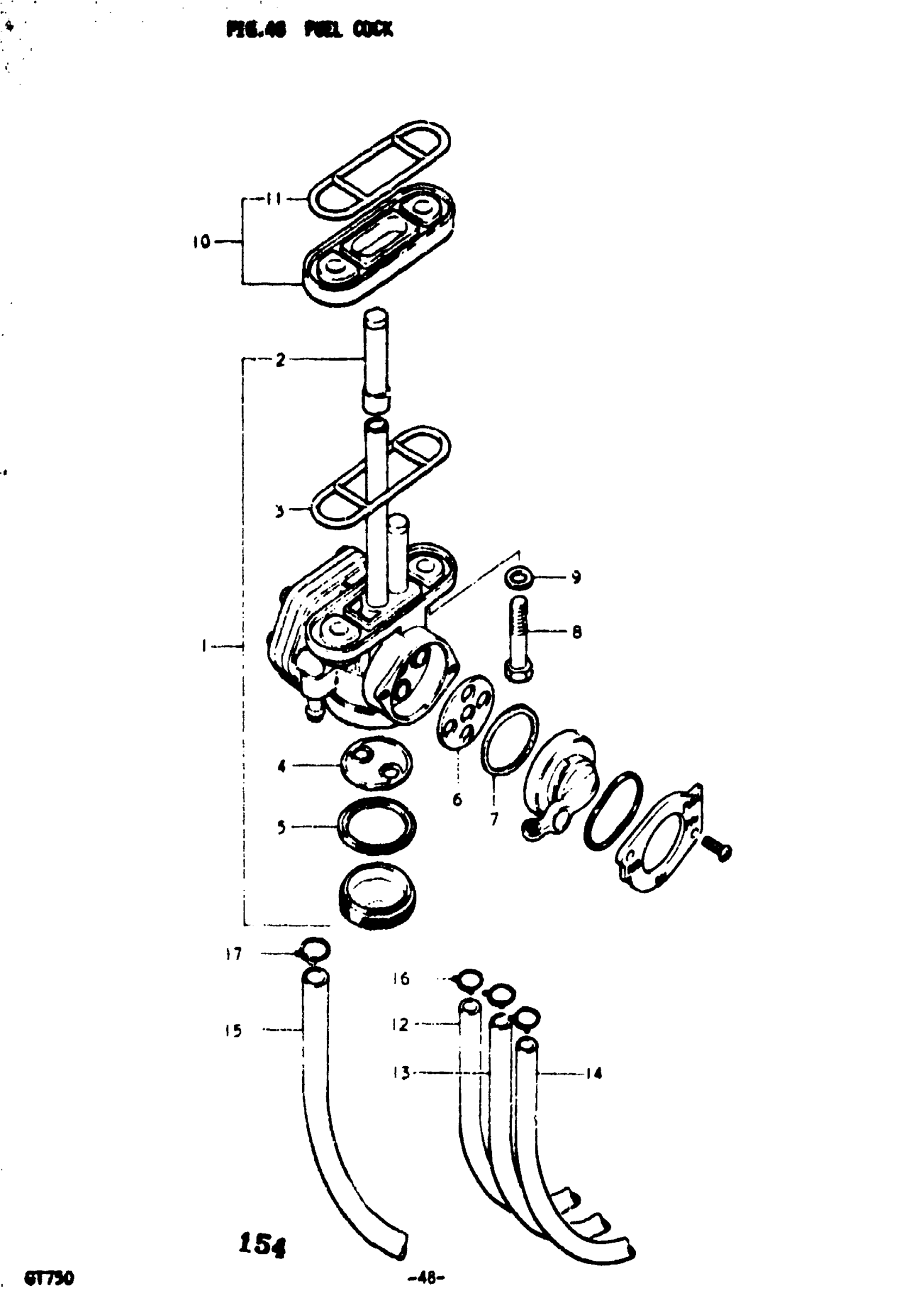

Suzuki GT750 (1977) FUEL COCK Diagram

COCK ASSY, FUEL | K; FROM 44300-31050

44300-31051

Unavailable

COCK ASSY,FUEL | L; TO 44300-33152 This part replaces 44300-33151.

44300-33601

Unavailable

COCK ASSY,FUEL | M,A; TO 44300-33154 ~F.NO.63682 This part replaces 44300-33152.

44300-33601

Unavailable

COCK ASSY,FUEL | A This part replaces 44300-33154.

44300-33601

Unavailable

COCK ASSY,FUEL | B; BLACK PAINTED; Includes Item(s) 2 - 7 This part replaces 44300-33600.

44300-33601

Unavailable

FILTER | K,L,M,A,B

44322-31050

$5.91

O RING | K,L,M,A,B This part replaces 44348-31050.

44348-31051

Unavailable

FILTER | K,L,M,A,B

44344-31050

Unavailable

GASKET | K,L,M,A,B

44346-31050

$6.12

GASKET, LEVER | K

44376-31050

Unavailable

GASKET | L,M,A,B; FROM 44376-33150 This part replaces 44341-33150.

44341-33151

$2.20

V SEAL,FUEL COC | B This part replaces 44353-33154.

44353-33155

$4.95

BOLT | K This part replaces 01112-06208.

01500-06207

$1.99

BOLT, REAR | L This part replaces 01112-06308.

01500-06307

$3.17

BOLT | M,A; 6x35 This part replaces 09128-06009.

01500-0635A

$2.21

BOLT | B; 6x20 This part replaces 09128-06006.

09128-06057

$1.64

GASKET (5.8X13X1.2) | K,L,M,A,B This part replaces 09168-06010.

09168-06023

$2.01

PLATE | L,M,A; Includes Item(s) 11

44380-31250

Unavailable

O RING | L,M,A This part replaces 44348-31050.

44348-31051

Unavailable

HOSE | K; 5x8,2x300 This part replaces 09343-05076.

09352-50005-00B

$12.58

.HOSE | K; 5x8,2x180 This part replaces 09343-05018.

09352-50006-600

$6.75

.HOSE | K; 5x8,2x135 TO 09343-05018 This part replaces 09343-05025.

09352-50006-600

$6.75

HOSE(7X10.2X200 | L,M,A; 7x10,2x210 TO 09343-07020 This part replaces 09343-07003.

09352-70104-00B

$13.82

HOSE(7X10.2X200 | B; 7x10,2x240 This part replaces 09343-07020.

09352-70104-00B

$13.82

CLIP | K; TO 09401-08401

09386-08001

Unavailable

CLIP | L,M,A,B

09401-10401

$1.45
