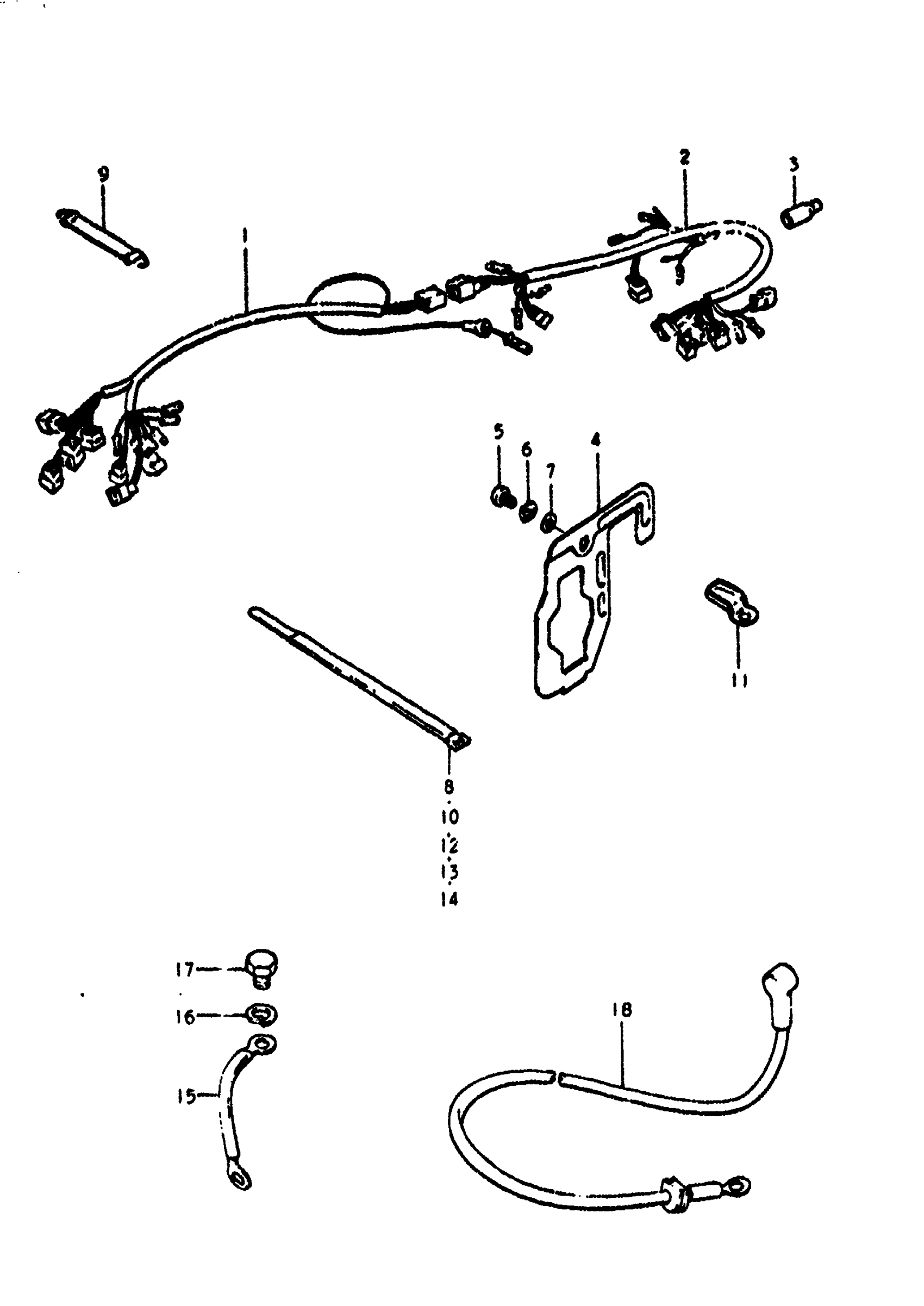

Find the part on the Wiring Harness diagram for your 1972 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki GT750 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HIRING HARNESS, NO.1

36610-31001

1
Out of stock

2

WIRING HARNESS, NO.2 This part replaces 36620-31001.

36620-31004

1
Out of stock

3

BOOT | OD:38 This part replaces 36618-28000.

36618-30000

1
Out of stock

4

PLATE, COUPLER | TO 37911-31071

37911-31000

—
Out of stock

5

1

$1.20

In stock

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

1
Out of stock

7

WASHER This part replaces 08322-21048.

08322-01047

1
Out of stock

8

CLAMP | FROM 09410-00014 This part replaces 09407-18301.

09407-18302

3
Out of stock

9

BAND

09462-00056

1
Out of stock

10

CLAMP | FROM 09407-14401 This part replaces 09407-18301.

09407-18302

2
Out of stock

11

CLAMP, CABLE This part replaces 09403-06302.

09403-06301

1
Out of stock

12

CLAMP | FROM 09407-00020 This part replaces 09407-11302.

09407-18302

1
Out of stock

13

CLAMP This part replaces 09407-18301.

09407-18302

2
Out of stock

14

CLAMP This part replaces 09407-11302.

09407-18302

4
Out of stock

15

LEAD WIRE, ENGINE EARTH | FROM 36864-31000

36864-31001

1
Out of stock

16

1

$2.28

In stock

17

BOLT | Includes Item(s) 18 This part replaces 01122-08128.

01500-08127

1
Out of stock

18

LEAD WIRE, STARTING MOTOR

36863-31000

1
Out of stock
