1972 Suzuki GT750 Sris Hose Diagram

← All diagrams

Find the part on the Sris Hose diagram for your 1972 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

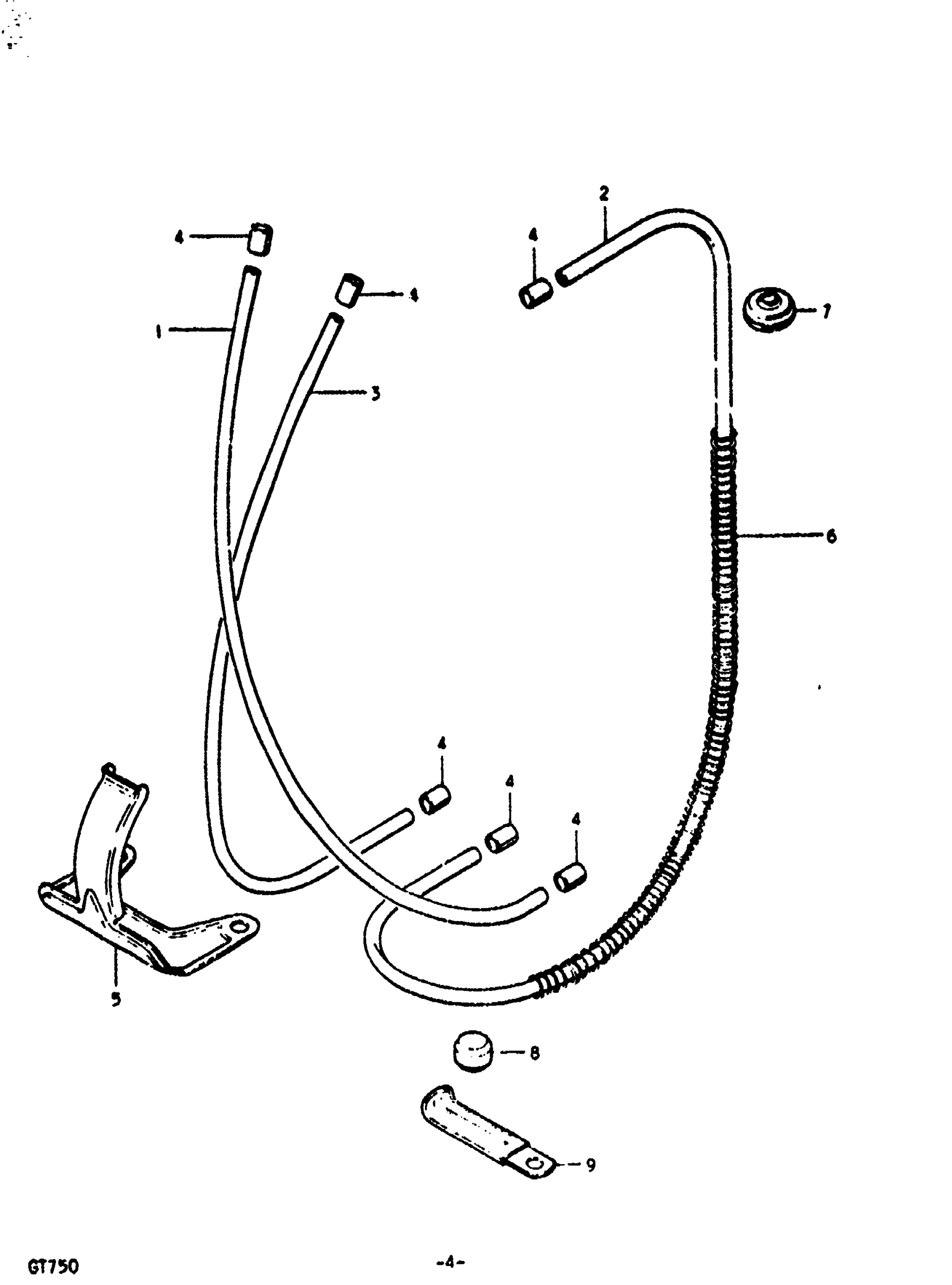

1972 Suzuki GT750 Sris Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE(2X5X600) | 2x5x395 TO 09343-02009 This part replaces 09343-02006.

09352-20504-600

1
Out of stock

2

HOSE(2X5X600) | 2x5x600 TO 09343-02009 This part replaces 09343-02009.

09352-20504-600

1
Out of stock

3

HOSE(2X5X600) | 2x5x240 This part replaces 09343-02005.

09352-20504-600

1
Out of stock

4

CLIP | FROM 09410-00042

09401-04401

6
Out of stock

5

COVER, SRIS HOSE HOLDER

11446-31000

—
Out of stock

6

PROTECTOR, SRIS HOSE (2)

16871-31000

1
Out of stock

7

GROMMET

09308-04004

1
Out of stock

8

PAD, RUBBER This part replaces 11151-18620.

11151-35600

1
Out of stock
