1977 Suzuki GT550 Cylinder Attachment Diagram

← All diagrams

Find the part on the Cylinder Attachment diagram for your 1977 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

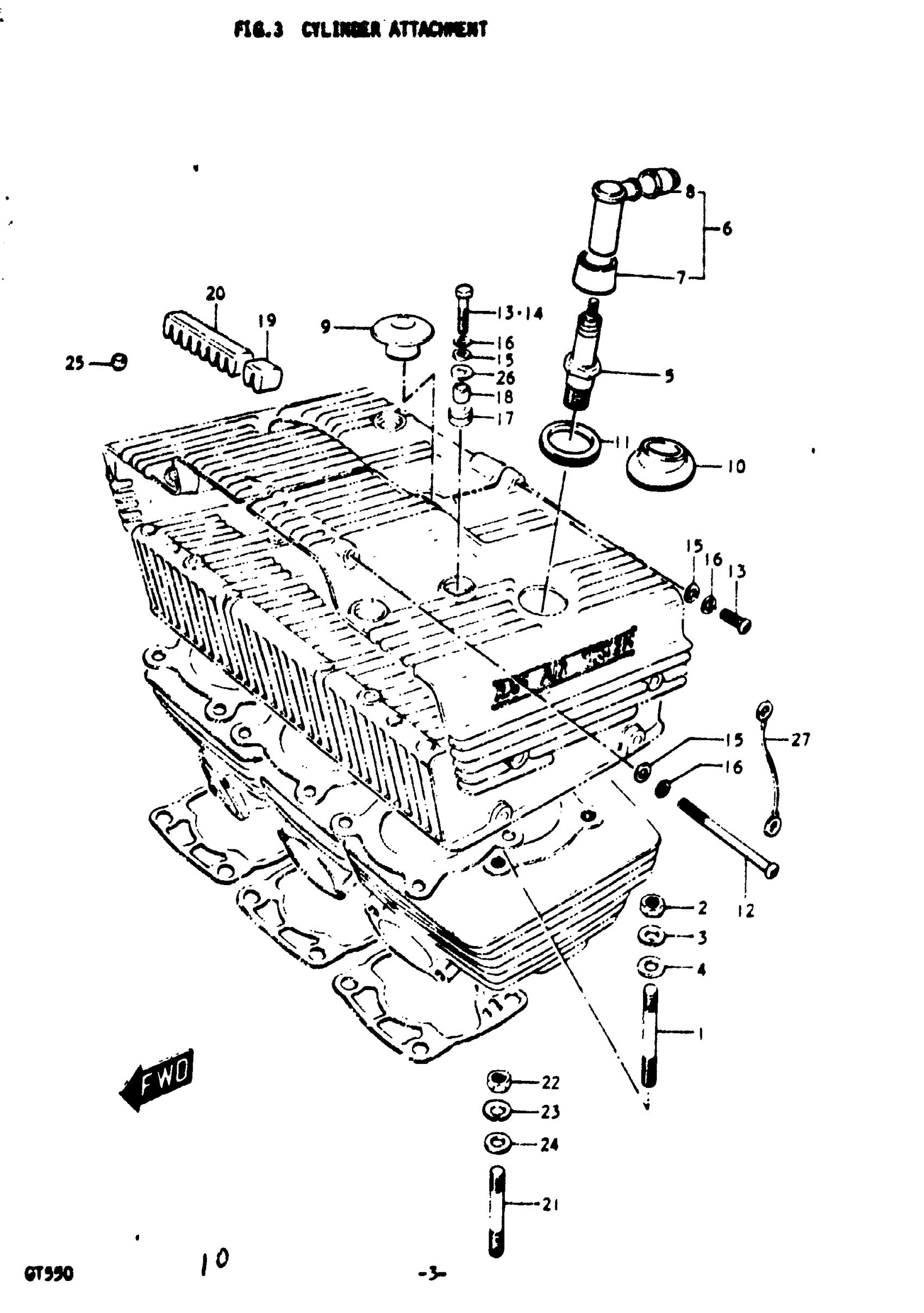

1977 Suzuki GT550 Cylinder Attachment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

12

$2.35

In stock

4

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

12
Out of stock

5

SPARK PLUG ASSY | K,L; W22ES, DENSO FROM 09482-00046

09482-00090

3
Out of stock

5

SPARK PLUG W24E | L,M,A,B; FROM 09482-00047 W24ES, DENSO This part replaces 09482-00092.

09482-00247-111

3
Out of stock

6

CAP SET,SPARK P | K,L,M,A,B; Includes Item(s) 7 - 8 This part replaces 33500-69810.

33500-69811

3
Out of stock

7

3

$4.47

In stock

8

SEAL,HIGH TENSION CORD (SIDE) | K,L,M,A,B This part replaces 33542-98000.

33542-38B00

3
Out of stock

9

RING, SPARK PLUG CAP | K; FROM 33543-33001 TO 33545-34000L,M; TO 33545-34000 This part replaces 33543-33010.

33545-34000

3
Out of stock

10

RING, SPARK PLUG CAP | L,M; TO 33545-34000 This part replaces 33543-34110.

33545-34000

2
Out of stock

11

RING, SPARK PLUG | M,A,B

33545-34000

3
Out of stock

12

2

$3.37

In stock

13

SCREW | KL,M,AB

02112-06257

5

$1.94

In stock

14

6

$2.25

In stock

15

.WASHER | KL,M This part replaces 08322-11068.

08322-0106B

3
Out of stock

16

13

$2.28

In stock

17

CUSHION | K,L,M,A,B

09320-08015

8

$3.90

In stock

19

PAD, CYLINDER HEAD RUBBER | K

11153-33000

—
Out of stock

20

PAD, CYLINDER HEAD RUBBER | L,M,A,B

11152-33000

6
Out of stock

22

12

$2.35

In stock

24

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

12
Out of stock

25

PAD, CYLINDER RUBBER | K,L,M,A,B

11252-34000

54
Out of stock

26

WASHER | KL,M,A,B; 6.3x14x1.6 This part replaces 09160-06031.

09160-06125

10
Out of stock

27

LEAD WIRE | K,L,M,A,BK,L,M,A,B This part replaces 36660-34000.

48528-78200

1
Out of stock
