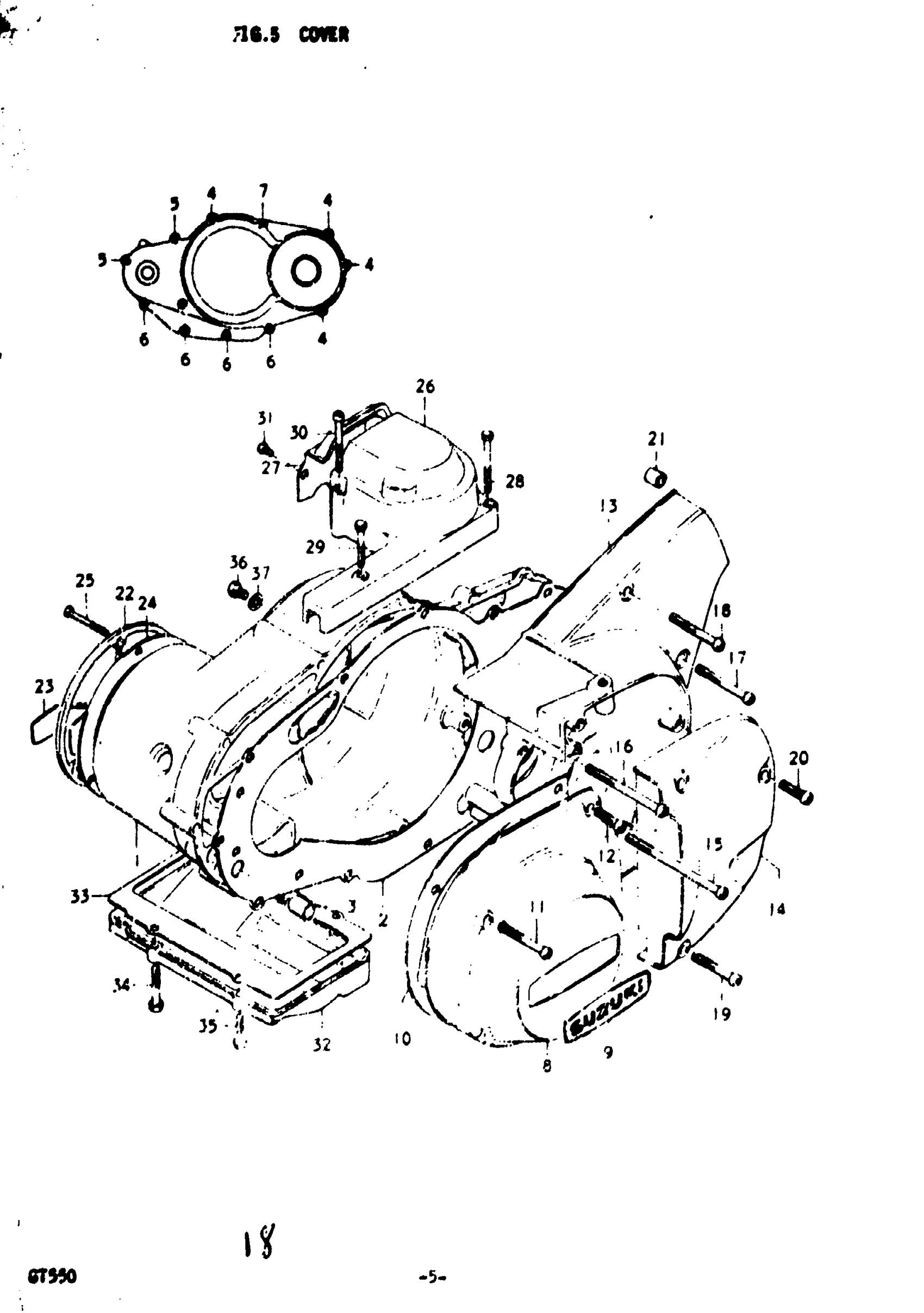

Suzuki GT550 (1977) COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-34600

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-34000.

11482-34001

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.77

5

SCREW This part replaces 02112-06258.

02112-06257

$1.68

6

SCREW This part replaces 02112-06208.

02112-06207

$1.77

7

SCREW This part replaces 02112-06758.

02112-06757

$3.37

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 This part replaces 11300-34840.

11351-34600

Unavailable

9

EMBLEM, COVER

68233-34000

Unavailable

10

GASKET, GENERATOR COVER

11483-34000

Unavailable

11

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.77

12

SCREW This part replaces 02112-06208.

02112-06207

$1.77

13

COVER, ENGINE SPROCKET INNER

11361-34600

Unavailable

14

COVER, ENGINE SPROCKET OUTER

11371-34600

Unavailable

15

SCREW This part replaces 02112-06958.

02112-0695B

$4.03

16

SCREW This part replaces 02112-06758.

02112-06757

$3.37

17

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$2.00

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.77

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.80

20

SCREW This part replaces 02112-06258.

02112-06257

$1.68

21

DOWEL PIN

04211-09129

$1.64

22

CAP, CONTACT BREAKER | K,L,M,A; TO 11300-34851 This part replaces 11300-34850.

11381-33600

Unavailable

22

CAP, CONTACT BREAKER | B; Includes Item(s) 23 This part replaces 11300-34851.

11381-33600

Unavailable

23

EMBLEM, COVER

68233-34000

Unavailable

24

GASKET, CONTACT BREAKER CAP

11491-33000

Unavailable

25

SCREW This part replaces 02112-05408.

02112-05407

$2.04

26

COVER, OIL PUMP (1)

11411-34000

Unavailable

27

COVER, OIL PUMP (2)

11412-34000

Unavailable

28

BOLT 5X45 This part replaces 01111-05458.

01550-05457

$2.49

29

NO DESCRIPTION AVAILABLE This part replaces 01112-05308.

01500-05307

Unavailable

30

SCREW This part replaces 02111-05458.

02112-05457

$1.88

31

SCREW This part replaces 02111-05087.

02112-05087

$1.45

32

COVER, STARTER MOTOR

11382-34000

Unavailable

33

GASKET, MOTOR COVER | K,L,M,A

11493-34000

Unavailable

34

NO DESCRIPTION AVAILABLE This part replaces 01112-05308.

01500-05307

Unavailable

35

BOLT This part replaces 01111-05208.

01500-0520B

$1.48

36

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

37

GASKET | 6.2x11x1

09169-06001

Unavailable
