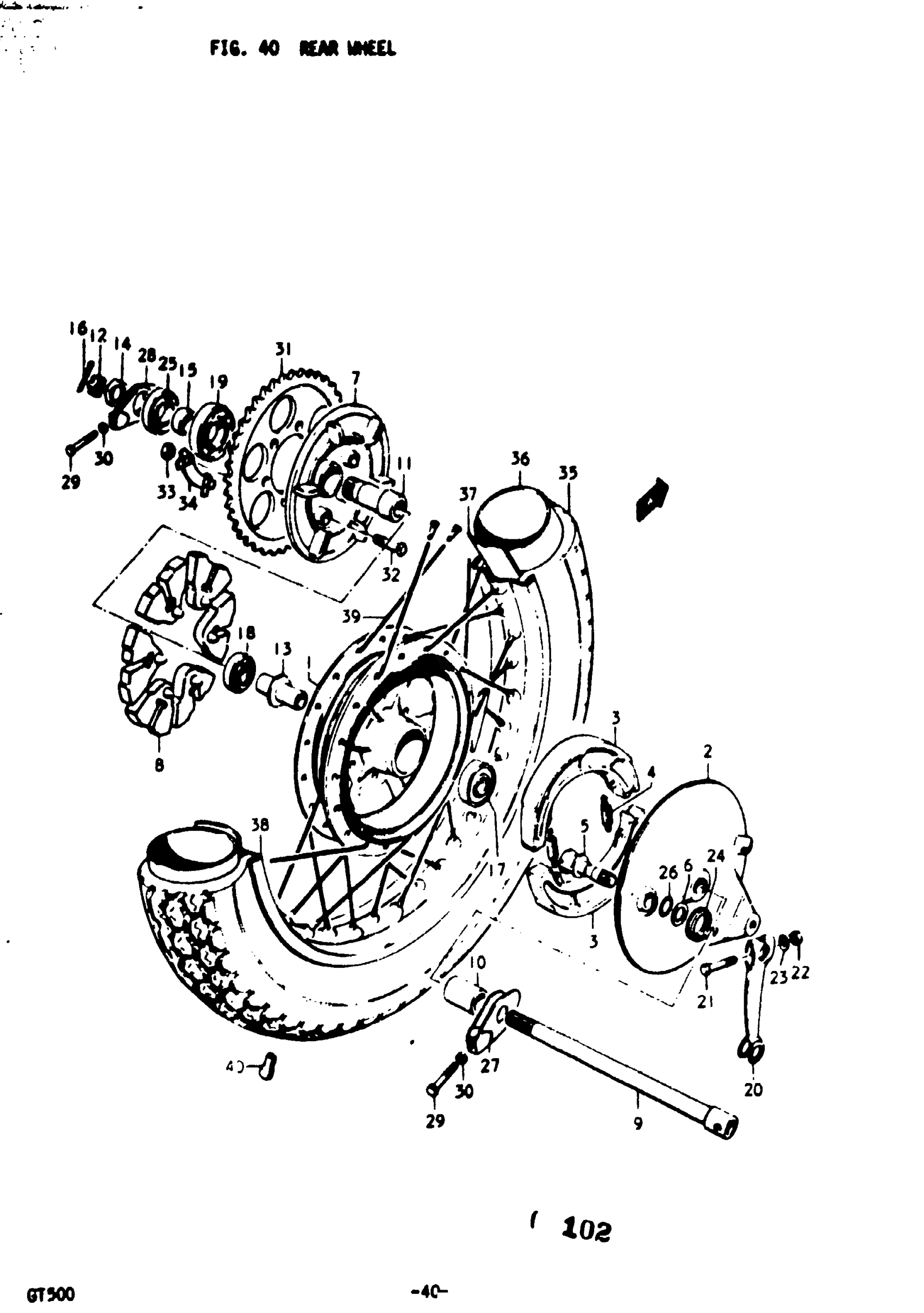

Find the part on the Rear Wheel diagram for your 1977 Suzuki GT500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT500 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB | A,B

64110-11001

1
Out of stock

2

PANEL | A,B

64210-11002

1
Out of stock

3

SHOE SET,BRAKE( | A,B This part replaces 64410-11002.

64400-11870

2
Out of stock

4

SPRING | A,B

55420-30000

2
Out of stock

5

CAM, BRAKE | A,B This part replaces 54440-33001.

54440-33002

1
Out of stock

6

WASHER | A,B This part replaces 09160-15001.

09160-15048

1
Out of stock

7

DRUM, SPROCKET | A,B

64611-11000

1
Out of stock

8

SHOCK ABSURBER, REAR DRUM | A,B This part replaces 64651-11000.

64651-11002

6
Out of stock

9

NO DESCRIPTION AVAILABLE | A,B This part replaces 64711-11000.

64711-0800V

1
Out of stock

10

SPACER, RH | A,B

09180-17024

1
Out of stock

11

SHAFT, SPROCKET DRUM | A,B

64761-11000

1
Out of stock

12

NUT | A,B This part replaces 08314-31168.

08314-3116A

1
Out of stock

13

SPACER, BEARING | A,B

64730-11000

1
Out of stock

14

NUT | A,B This part replaces 09140-24002.

09140-24010

1
Out of stock

15

SPACER | A,B

09180-25011

1
Out of stock

16

PIN, COTTER | A,B This part replaces 04111-40408.

04111-4040A

1
Out of stock

17

BEARING, LH | A,B This part replaces 08143-63030.

08143-63037

1
Out of stock

18

BEARING, FRONT HUB RH | A,B This part replaces 08143-62030.

08143-62037

1
Out of stock

19

BEARING, LH | A,B This part replaces 08113-62050.

09262-25003

1
Out of stock

20

LEVER, BRAKE CAM | A,B

64451-11000

1
Out of stock

21

BOLT | A,B This part replaces 01112-06408.

01500-0640B

1
Out of stock

22

.NUT | A,B This part replaces 08311-11068.

08310-00067

1
Out of stock

23

WASHER | A,B This part replaces 08322-21068.

08322-01067

1
Out of stock

24

SPRING | A,B This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

25

SEAL,OIL(30.5X5 | A,B This part replaces 09283-30001.

09285-30003

1
Out of stock

26

O RING (ID:14.8,D:2.40) | A,B This part replaces 09280-15001.

09280-15003

1
Out of stock
