1977 Suzuki GT500 AIR Cleaner Diagram

← All diagrams

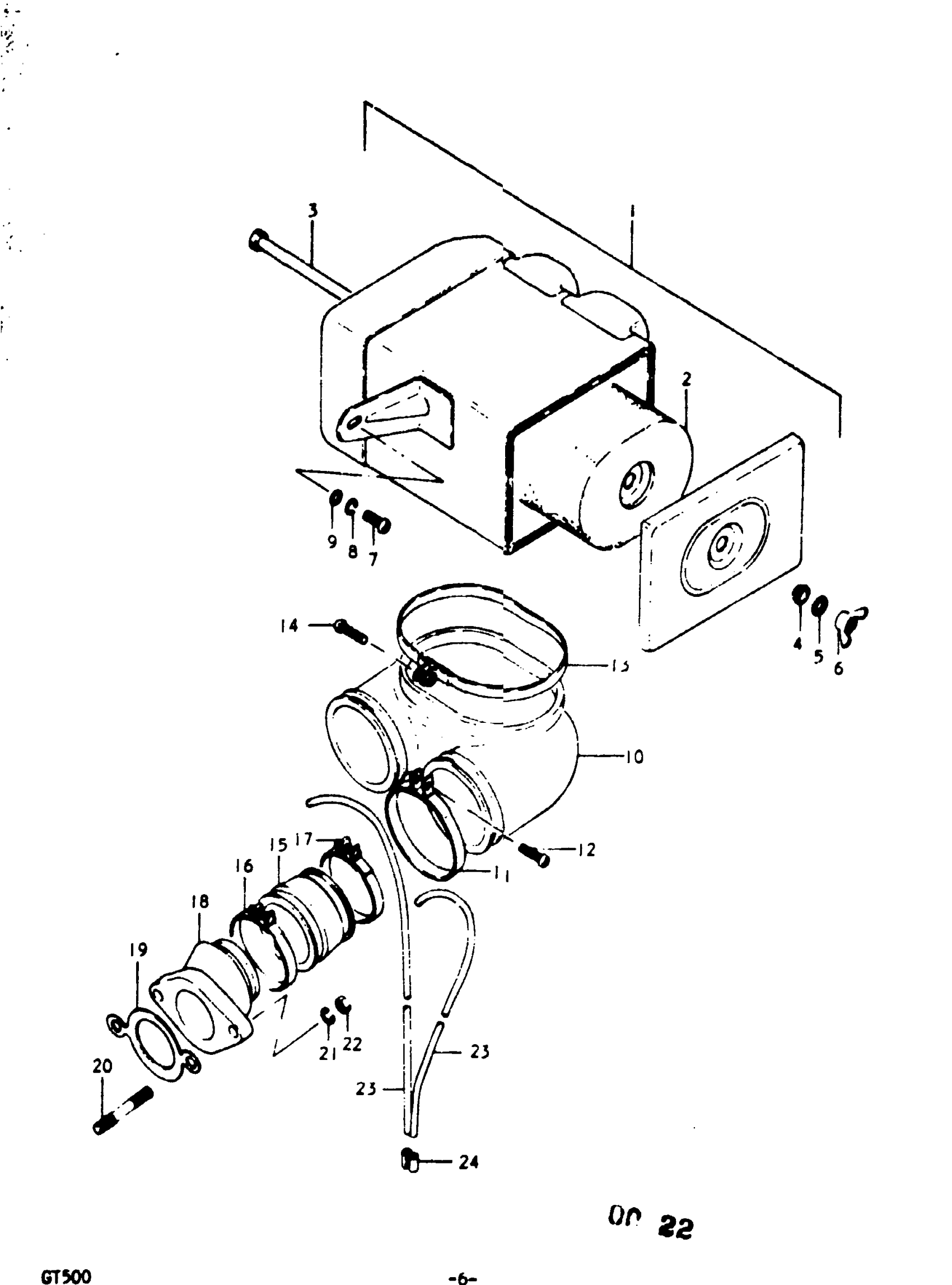

Find the part on the AIR Cleaner diagram for your 1977 Suzuki GT500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT500 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | A; TO 13700-15312

13700-15311

—
Out of stock

1

CLEANER ASSY, AIR | B; Includes Item(s) 2 - 6

13700-15312

1
Out of stock

2

FILTER | A,B

13780-15310

1
Out of stock

3

BOLT | A,B

13726-15310

—
Out of stock

4

SEAL | A,B

13742-29010

1
Out of stock

5

.WASHER | A,B This part replaces 08322-11068.

08322-0106B

1
Out of stock

6

NUT | A,B This part replaces 09144-06001.

08317-1206A

1
Out of stock

7

SCREW | A,B This part replaces 02112-06128.

02112-06127

2
Out of stock

8

2

$2.28

In stock

9

WASHER | A,B This part replaces 08322-21068.

08322-01067

2
Out of stock

10

HOSE, AIR INLET | A,B

13880-15304

1
Out of stock

11

CLAMP | A,B This part replaces 09402-64306.

09402-64203

2
Out of stock

12

SCREW | A,B This part replaces 03211-04258.

03211-0425B

2
Out of stock

13

CLAMP | A,B

09402-00163

1
Out of stock

14

SCREW | A,B This part replaces 02111-04208.

02112-0420A

1
Out of stock

15

PIPE, INTAKE (1) | A,B

13111-31001

2
Out of stock

16

CLAMP | A,B This part replaces 09402-54305.

09402-54303

2
Out of stock

17

CLAMP | A,B

09402-50306

2
Out of stock

18

PIPE, INTAKE (2) | A,B

13112-15300

2
Out of stock

19

GASKET | A,B

13125-15000

2
Out of stock

20

BOLT,STUD | A,B This part replaces 01421-08258.

01421-0825A

4
Out of stock

21

4

$2.28

In stock

22

4

$1.93

In stock

23

HOSE | A,B This part replaces 09344-03019.

09351-30001-600

2
Out of stock

24

CLIP | A,B

09408-00005

1
Out of stock
