1977 Suzuki GT380 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1977 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

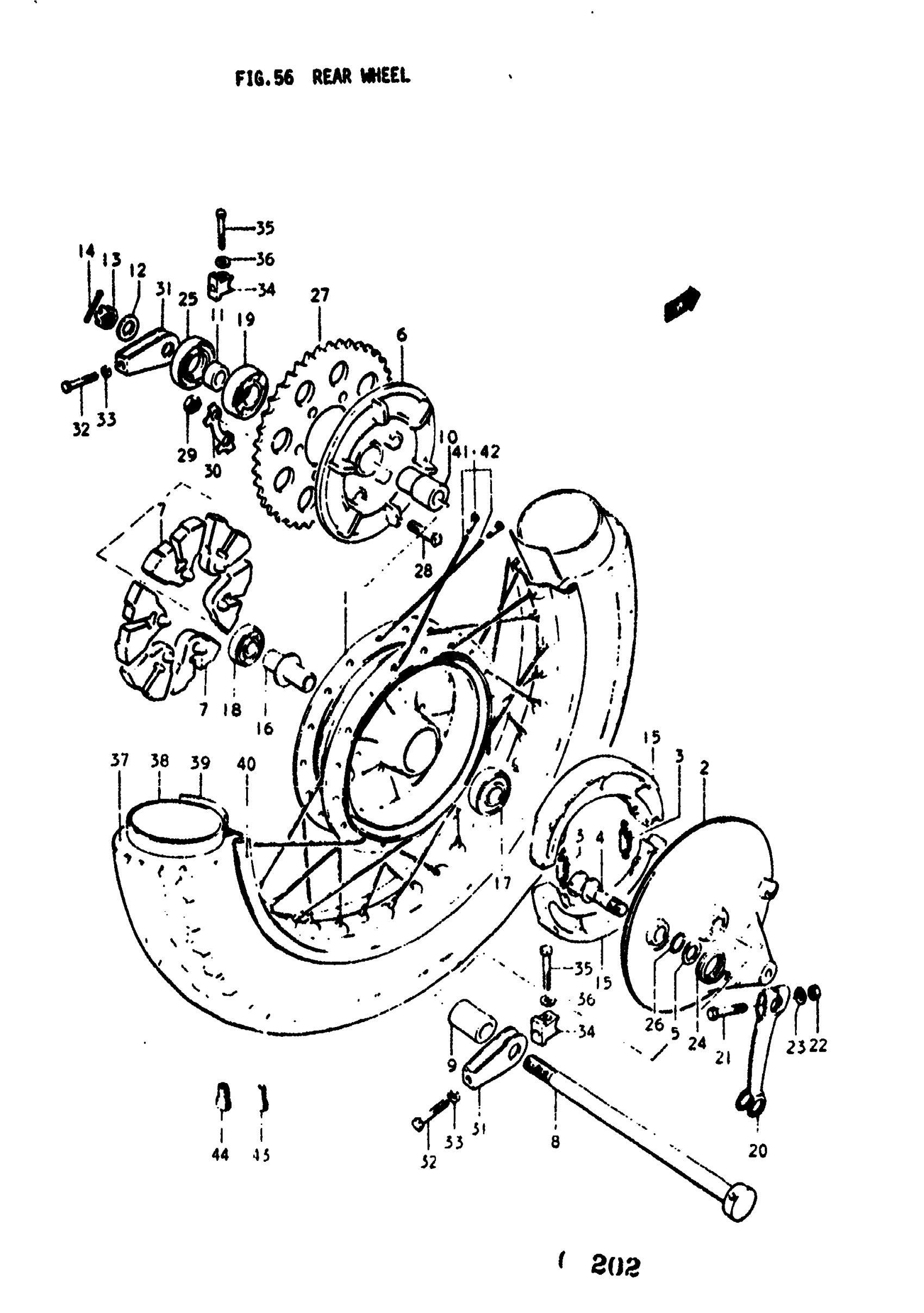

1977 Suzuki GT380 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL | K,L,M; TO 64110-11001

64110-11000

—
Out of stock

1

HUB, REAR WHEEL | A,B

64110-11001

1
Out of stock

2

PANEL | K; TO 64210-11001

64210-11000

—
Out of stock

2

PANEL | L,M; TO 64210-11002

64210-11001

—
Out of stock

2

PANEL | A,B

64210-11002

1
Out of stock

3

SPRING | K,L,M,A,B

55420-30000

2
Out of stock

4

CAM, BRAKE | K; TO 54440-33001 This part replaces 54440-33000.

54440-33002

1
Out of stock

4

CAM, BRAKE | L,M,A,B This part replaces 54440-33001.

54440-33002

1
Out of stock

5

WASHER | K,L,M,A,B This part replaces 09160-15001.

09160-15048

1
Out of stock

6

DRUM, SPROCKET MOUNTING | K,L,M,A,B

64611-33000

1
Out of stock

7

SHOCK ABSURBER, REAR DRUM | K,L,M,A,B This part replaces 64651-11000.

64651-11002

6
Out of stock

8

AXLE,REAR | K,L,M,A,B This part replaces 64711-33000.

64711-3300V

1
Out of stock

9

SPACER | K,L,M,A,B; 17.5x28x41.8

09180-17036

1
Out of stock

10

SPACER,RR HUB B | K,L,M,A,B This part replaces 64733-33000.

64733-3300V

1
Out of stock

11

SPACER | K,L,M,A,B; 17x30.5x113

09180-17035

1
Out of stock

12

WASHER | K,L,M,A,B This part replaces 08322-11168.

08322-01167

1
Out of stock

13

NUT | K,L,M,A,B

09141-16001

1
Out of stock

14

PIN, COTTER | K,L,M,A,B This part replaces 04111-40408.

04111-4040A

1
Out of stock

15

SHOE SET,BRAKE( | K,L,M,A,B This part replaces 64410-11002.

64400-11870

2
Out of stock

16

SPACER, BEARING | K,L,M,A,B

64730-11000

1
Out of stock

17

BEARING, LH | K,L,M,A,B This part replaces 08143-63030.

08143-63037

1
Out of stock

18

BEARING, FRONT HUB RH | K,L,M,A,B This part replaces 08143-62030.

08143-62037

1
Out of stock

19

BEARING, LH | K,L,M,A,B This part replaces 08113-62050.

09262-25003

1
Out of stock

20

LEVER, BRAKE CAM | K,L,M,A,B

64451-11000

1
Out of stock

21

BOLT | K,L,M,A,B This part replaces 01112-06408.

01500-0640B

1
Out of stock

22

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

1
Out of stock

23

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

1
Out of stock

24

SPRING | K,L,M,A,B This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

25

SEAL,OIL(30.5X5 | K,L,M,A,B This part replaces 09283-30001.

09285-30003

1
Out of stock

26

O RING (ID:14.8,D:2.40) | K,L,M,A,B This part replaces 09280-15001.

09280-15003

1
Out of stock

27

SPROCKET, REAR | OPT; K,L,M,A,B; NT:40

64511-33751

1
Out of stock

27

SPROCKET, REAR | K,L,M,A,B; NT:46 OPT

64511-33001

1
Out of stock

27

SPROCKET, REAR | K,L,M,A,B; NT:48 OPT

64511-33770

1
Out of stock

27

SPROCKET, REAR | K,L,M,A,B; NT:38 OPT

64511-33760

1
Out of stock

28

BOLT | K,L,M,A,B This part replaces 09119-10002.

09105-10001

6
Out of stock

29

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

6
Out of stock

30

LOCK WASHER | K,L,M,A,B

09169-10006

3
Out of stock

31

ADJUSTER, CHAIN | K,L,M,A,B This part replaces 61410-33000.

61410-47200

2
Out of stock

32

BOLT (8X50) | K,L,M,A,B This part replaces 09104-08006.

09104-08034

2
Out of stock

33

NUT | K,L,M,A,B This part replaces 08312-11088.

08310-00087

2
Out of stock

34

SUPPORTER,CHAIN | K,L,M,A,B This part replaces 61433-31000.

61433-3100V

2
Out of stock

35

BOLT | K,L,M,A,B This part replaces 01122-08508.

01500-08507

2
Out of stock

36

WASHER | K,L,M,A,B This part replaces 08322-11088.

08322-01087

2
Out of stock

37

TIRE REAR | K,L; 3.50-18 This part replaces 65100-33030.

65100-33610

1
Out of stock

37

TIRE REAR | M; TO 65100-33600 This part replaces 65100-33013.

65100-33610

1
Out of stock

37

TIRE REAR | A,B This part replaces 65100-33600.

65100-33610

1
Out of stock

38

TUBE ASSY, WHEEL INNER | K,L,M,A,B; 3.50-18 This part replaces 65200-33030.

65200-44AA0

1
Out of stock

38

TUBE ASSY, WHEEL INNER | A,B This part replaces 65200-18010.

65200-44AA0

1
Out of stock

39

PROTECTOR, INNER TUBE | K,L,M,A,B; 22x18

65261-33030

1
Out of stock

39

IN TUBE PROTECT | M,A,B This part replaces 55261-11010.

55261-26F10

1
Out of stock

40

RIM | K,L,M,A,B; 1.858-18

65311-11220

1
Out of stock

41

SPOKE SET,REAR | K,L,M; TAKASAGO TO 65300-33810 This part replaces 65320-15818.

65320-15819

1
Out of stock

42

SPOKE SET | K,L,M,A,B; DAIDO

65300-33810

1
Out of stock

43

BALANCER WHEEL (15G) | (0~3)20G This part replaces 55411-11000.

55411-26G00

1
Out of stock

44

BALANCER WHEEL (30G) | (0~3)30G This part replaces 55412-11000.

55413-41F00

1
Out of stock
