1977 Suzuki GT380 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1977 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

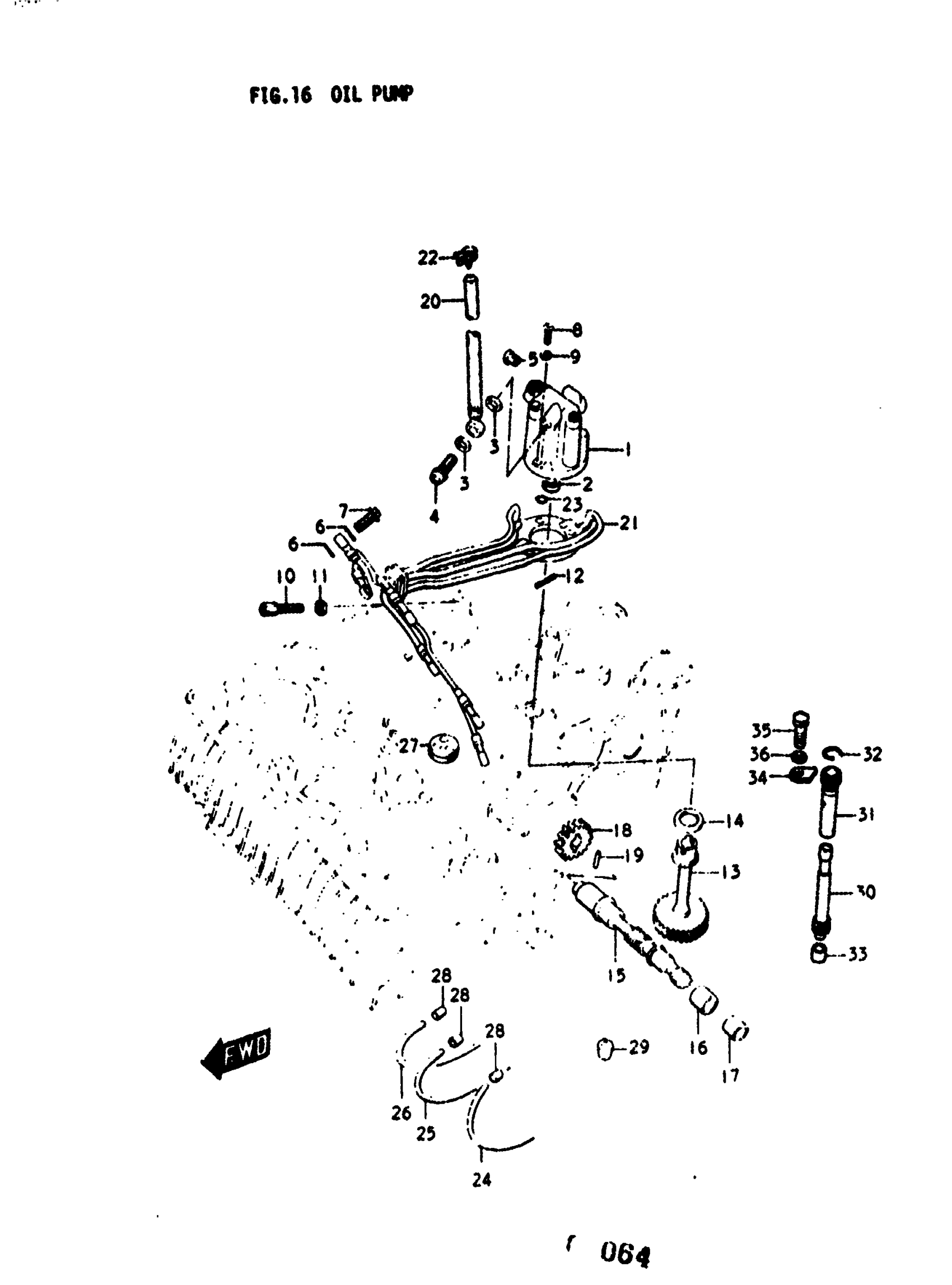

1977 Suzuki GT380 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, OIL | K; FROM 16000-33803

16100-33001

1
Out of stock

1

PUMP ASSY, OIL | L,M,A,B; FROM 16100-33810; Includes Item(s) 2

16100-33100

1
Out of stock

2

OIL SEAL | L,M,A,B

09285-08002

1
Out of stock

3

GASKET | K,L,M,A,B This part replaces 09168-06002.

09168-06004

2
Out of stock

4

UNION BOLT | K,L,M,A,B

09360-06003

1
Out of stock

5

TERMINAL, CABLE | K,L,M,A; TO 16292-03111 This part replaces 16292-03110.

16292-03112

1
Out of stock

5

TERMINAL, CABLE | B This part replaces 16292-03111.

16292-03112

1
Out of stock

6

GASKET | K,L,M,A,B This part replaces 09168-06002.

09168-06004

12
Out of stock

7

UNION BOLT | K,L,M,A,B

09360-06003

6
Out of stock

8

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

3
Out of stock

9

LOCK WASHER | K,L,M,A,B

09321-21058

—
Out of stock

10

BOLT | K,L,M,A,B; 8x47

09119-08014

1
Out of stock

11

1

$1.93

In stock

12

PIN | K,L,M,A,B

09261-03010

1
Out of stock

13

SHAFT, OIL PUMP DRIVEN | K,L,M,A,B

16331-33000

1
Out of stock

14

WASHER, RH (14X22X1.0) | K,L,M,A,B This part replaces 08211-14221.

09181-14167

1
Out of stock

15

SHAFT, OIL PUMP DRIVE | K,L,M,A,B

16322-33000

1
Out of stock

16

BUSHING | K,L,M,A,B; 17x24x13

09300-17003

1
Out of stock

17

BUSHING | K,L,M,A,B; 14x19x11.5

09300-14003

—
Out of stock

18

GEAR, OIL PUMP DRIVEN | K,L,M,A,B; NT : 13

16321-33002

1
Out of stock

19

PIN | K,L,M,A,B

09261-03010

1
Out of stock

20

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 16810-33030.

16810-33031

1
Out of stock

21

HOSE, OIL (2) | K,L,M,A,B

16820-33030

1
Out of stock

22

OIL HOSE CLAMP | K This part replaces 09400-10301.

09400-10302

1
Out of stock

22

CLAMP | L,M,A,B

09401-08401

1
Out of stock

23

O RING | K,L,M,A,B

09280-03002

6
Out of stock

24

HOSE(2X5X600) | K,L; L:370 TO 09343-02009 This part replaces 09343-02011.

09352-20504-600

1
Out of stock

25

HOSE(2X5X600) | K,L; L:450 TO 09343-02009 This part replaces 09343-02012.

09352-20504-600

1
Out of stock

26

HOSE(2X5X600) | K,L; L:560 TO 09343-02009 This part replaces 09343-02013.

09352-20504-600

1
Out of stock

27

GROMMET | K,L

09309-05003

2
Out of stock

28

CLIP | K,L

09401-04401

6
Out of stock

29

PAD, SRIS RUBBER | K,L

11151-16400

5
Out of stock

30

GEAR, TACHOMETER DRIVEN | K,L,M,A,B

26431-33000

1
Out of stock

31

SLEEVE, TACHOMETER DRIVEN GEAR | K,L,M,A,B

26441-33000

1
Out of stock

32

O RING | K,L,M,A,B

09280-10001

1
Out of stock

33

BUSHING | K,L,M,A,B

09300-08011

1
Out of stock

34

PLATE, SLEEVE | K,L,M,A,B

26449-33000

1
Out of stock

35

BOLT, RUBBER STOP | K,L,M,A,B This part replaces 01111-05128.

01500-05127

1
Out of stock

36

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

1
Out of stock
