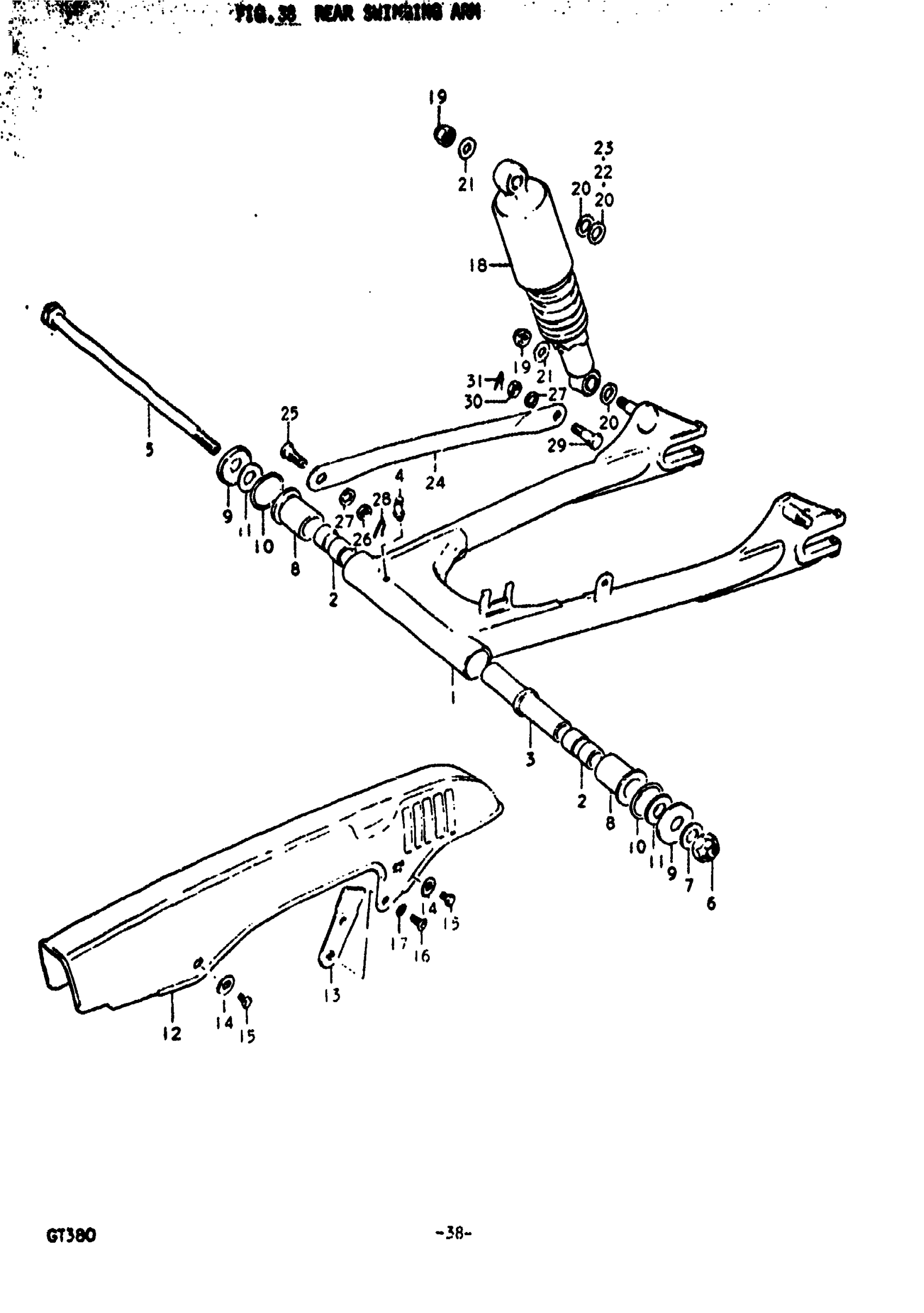

Suzuki GT380 (1972) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 61101-33805-019.

61100-33811-019

Unavailable

2

BUSHING | FROM 09307-22002

09307-22003

Unavailable

3

SPACER

61280-33000

Unavailable

4

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.07

5

SHAFT, PIVOT This part replaces 61211-33000.

61211-33002

Unavailable

6

NUT | FROM 09159-14002

09159-14003

Unavailable

7

WASHER This part replaces 08322-11148.

08322-01147

$1.92

8

SPACER | FROM 61251-15000

61251-15001

Unavailable

9

COVER, DUST SEAL

61262-15000

Unavailable

10

.O RING (D:3,ID:29.5)

09280-30001

$1.70

11

THRUST WASHER

09160-14009

$2.80

12

CHAIN CASE | FROM 61311-33000-019

61310-33900-019

Unavailable

13

REINFORCEMENT, CHAIN CASE | FROM 61381-31001

61381-31002

Unavailable

14

WASHER

09169-06010

$2.61

15

BOLT

09100-06011

$1.58

16

SCREW This part replaces 02122-06168.

02122-06167

$1.45

17

LOCK WASHER

08323-31068

Unavailable

18

ABSORBER ASSY, REAR SHOCK

62100-33010

Unavailable

19

NUT This part replaces 08313-11107.

08313-10107

$2.53

20

WASHER This part replaces 08322-11128.

08322-01127

$1.86

21

WASHER | 10.5x24x2.3

09160-19001

$2.99

22

WASHER, FRONT AXLE | 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

$4.20

23

WASHER | 12.5x24x1.6 This part replaces 09160-12004.

09160-12088

$2.08

24

NO DESCRIPTION AVAILABLE This part replaces 64311-31001.

64311-31001-13L

Unavailable

25

BOLT | TO 09119-10010

09119-10009

Unavailable

26

NUT This part replaces 08312-32108.

08310-00107

$2.19

27

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

28

CLIP This part replaces 09385-10001.

09385-10005

$1.50

29

BOLT

09101-10003

Unavailable

30

NUT This part replaces 08311-11108.

08310-00107

$2.19

31

CLIP

09384-08001

Unavailable
