1972 Suzuki GT380 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1972 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

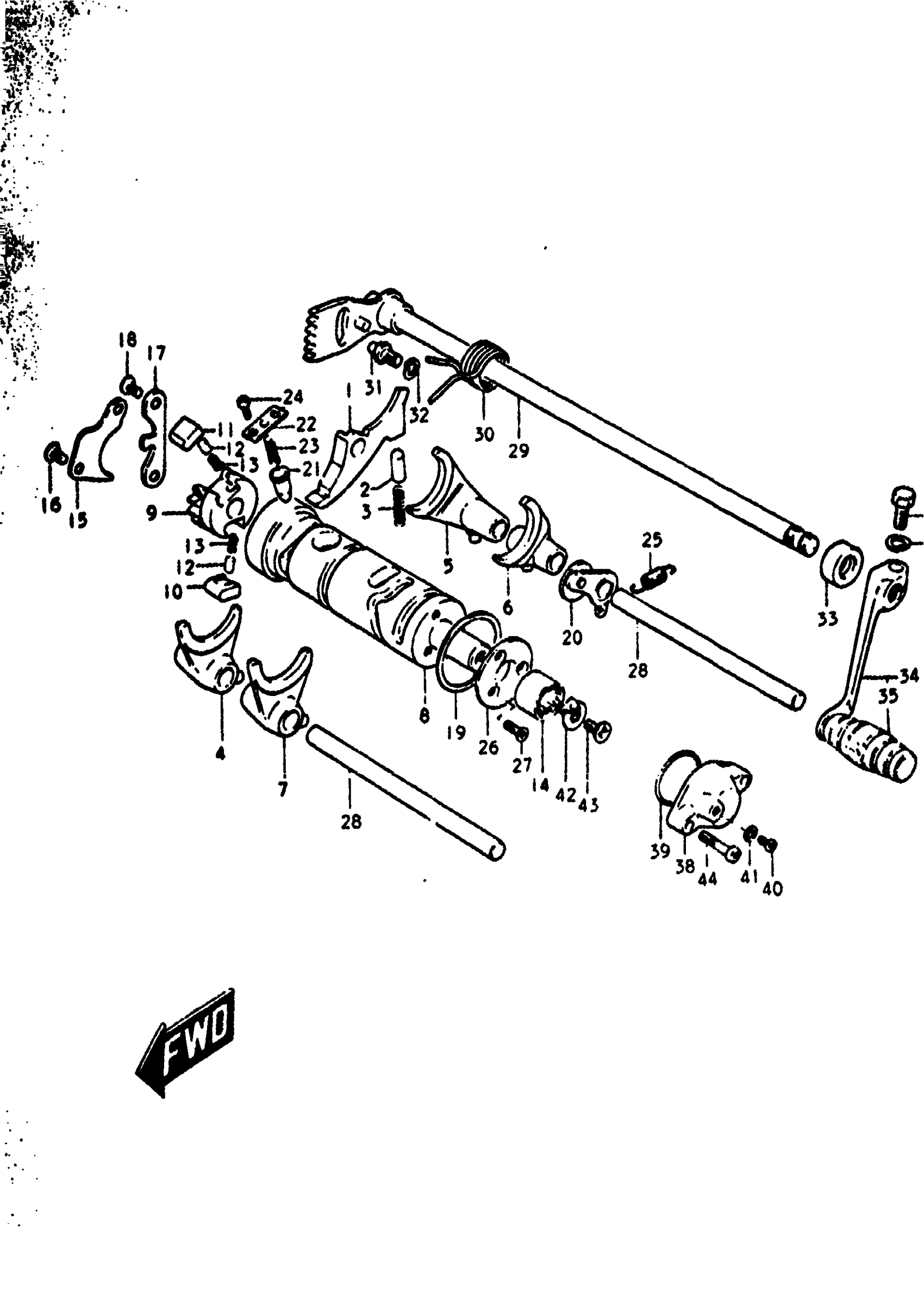

1972 Suzuki GT380 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOE, TRANSMISSION BRAKE This part replaces 24640-33000.

24641-33031

1
Out of stock

2

TAPPET, TRANSMISSION SHOE

24631-18010

1
Out of stock

3

SPRING

09440-07017

1
Out of stock

4

FORK, 5TH DRIVE GEAR SHIFTING | TO 25241-18000 This part replaces 25211-18000.

25241-18000

1
Out of stock

5

FORK, GEAR SHIFTING

25221-18000

1
Out of stock

6

FORK, GEAR SHIFTING

25231-18000

1
Out of stock

7

FORK, GEAR SHIFTING

25241-18000

1
Out of stock

8

CAM, GEAR SHIFTING | TO 25310-18004 USED WITH 02122-06168 This part replaces 25310-18002.

25310-18004

1
Out of stock

9

CAM, GEAR SHIFTING This part replaces 25310-18002.

25310-18004

1
Out of stock

10

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

11

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

1
Out of stock

12

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

1
Out of stock

13

PIN

09261-05003

2
Out of stock

14

SPRING

09440-04003

2
Out of stock

15

BEARING

09263-16006

1
Out of stock

16

LIFTER, GEAR SHIFTING PAWL

25331-11001

1
Out of stock

17

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

18

GUIDE, GEAR SHIFTING CAM

25341-18000

1
Out of stock

19

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

20

THRUST WASHER

09160-40001

2
Out of stock

21

STOPPER, GEAR SHIFTING CAM

25350-18000

1
Out of stock

22

STOPPER, GEAR SHIFTING CAM

25351-18001

1
Out of stock

23

HOLDER, STOPPER SPRING

25354-18000

—
Out of stock

24

SPRING

09440-05011

1
Out of stock

25

2

$1.20

In stock

25

SPRING

09443-09006

1
Out of stock

26

PLATE, CAM STOPPER | TO 25381-20001 This part replaces 25381-20000.

25381-20001

1
Out of stock

27

3

$2.10

In stock

28

SHAFT, SHIFTING FORK

25411-18000

2
Out of stock

29

NO DESCRIPTION AVAILABLE This part replaces 25510-33000.

25510-33X00

1
Out of stock

30

SPRING | FROM 09444-26001 This part replaces 09444-26012.

09444-26013

1
Out of stock

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

32

1

$2.28

In stock

33

OIL SEAL (12X22X9) | 12.5x22x29 This part replaces 09285-12002.

09285-12006

1
Out of stock

34

LEVER ASSY, GEAR SHIFTING | FROM 25600-33002; Includes Item(s) 35 - 35 This part replaces 25600-33003.

25600-44000

1
Out of stock

35

.RUBBER,GEAR SHIFT PEDAL | USED TO 25600-33002 This part replaces 25652-03201.

25652-16510

1
Out of stock

35

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

36

BOLT, REAR This part replaces 01122-08208.

01500-08207

1
Out of stock

37

1

$2.28

In stock

38

BODY, GEAR SHIFTING SWITCH

37721-15002

1
Out of stock

39

O RING

09280-28002

1
Out of stock

40

SCREW This part replaces 02111-03048.

02112-03047

1
Out of stock

41

WASHER This part replaces 08322-21038.

08322-01037

1
Out of stock

42

CONTACT, SHIFTING SWITCH | FROM 37711-05100

37711-05101

1
Out of stock

43

SCREW This part replaces 02122-06128.

02122-06127

1
Out of stock

44

SCREW This part replaces 02111-05207.

02112-05207

2
Out of stock
